Removal and Installation

WARNING: This page is about a different car, the 2013 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center instrument panel finish panel. Refer to INSTRUMENT PANEL AND CONSOLE .

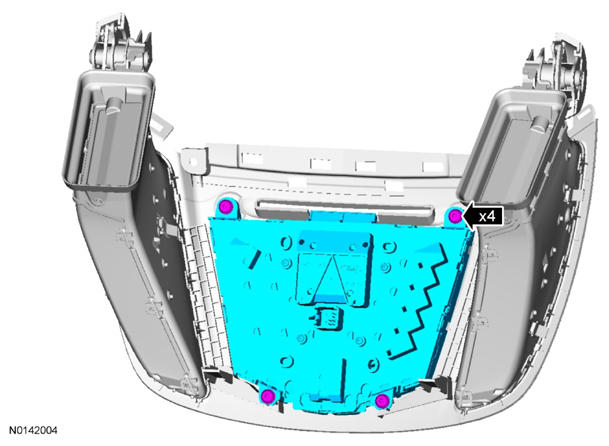

  2. Remove the 4 Front Controls Interface Module (FCIM) screws and separate the FCIM from the center instrument panel finish panel.
    • To install, tighten to 1.5 Nm (14 lb-in).
      G08615346
  3. To install, reverse the removal procedure.
