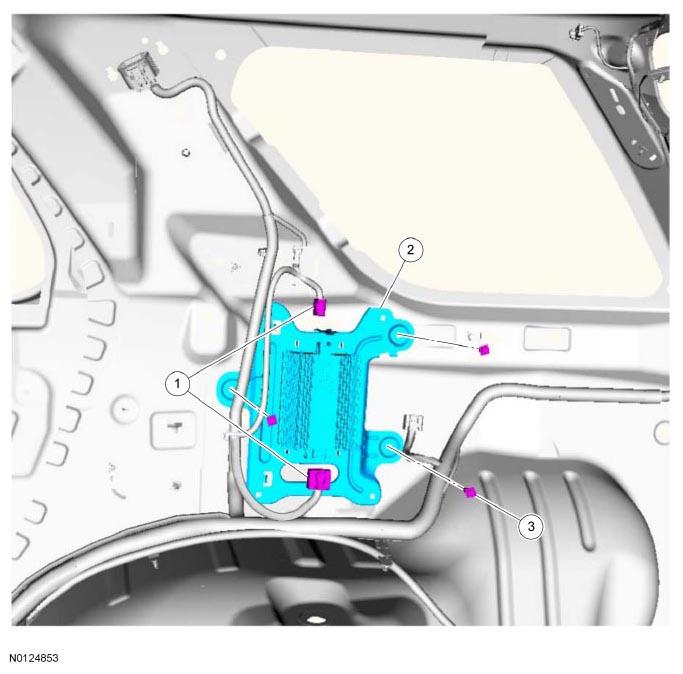

Exploded View
WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item |
Service Part Number |
Description |
Torque |
Material Name |
Notes |
| |
- |
Audio amplifier electrical connectors |
- |
- |
- |
| 1 |
18B849 |
Audio amplifier |
- |
- |
- |
| 2 |
W705661 |
Audio amplifier bracket screws (3 required) |
13 Nm (115 lb-in) |
- |
- |
