Section 446 (Automatic Transaxle Control System)
›
Shift Lever
›
Components and Components Location
›
Components
Components and Components Location: Components
WARNING:
This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

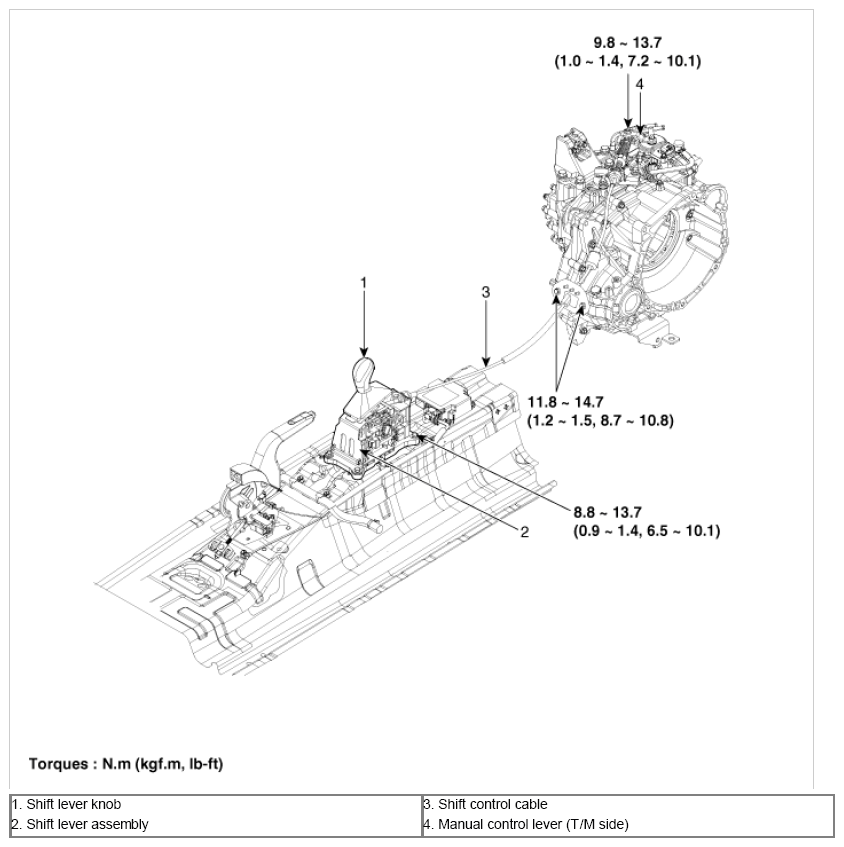

Fig 1: Shift Lever Components Location
Courtesy of HYUNDAI MOTOR AMERICA
