Climate Control System - Component Location
WARNING: This page is about a different car, the 2015 Ford C-Max. However, it is still accessible from the selected car via links, so may be relevant.

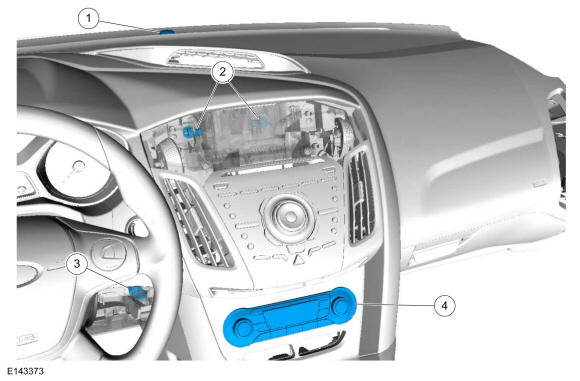

| Item | Description |
|---|---|
| 1 | Sunload sensor |
| 2 | Center register air discharge temperature sensors |
| 3 | In-vehicle temperature and humidity sensor |
| 4 | HVAC module |

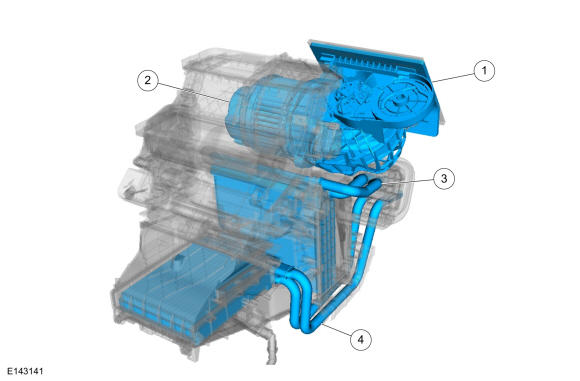

| Item | Description |
|---|---|
| 1 | Air inlet duct |
| 2 | Blower motor |
| 3 | Evaporator |
| 4 | Heater core |

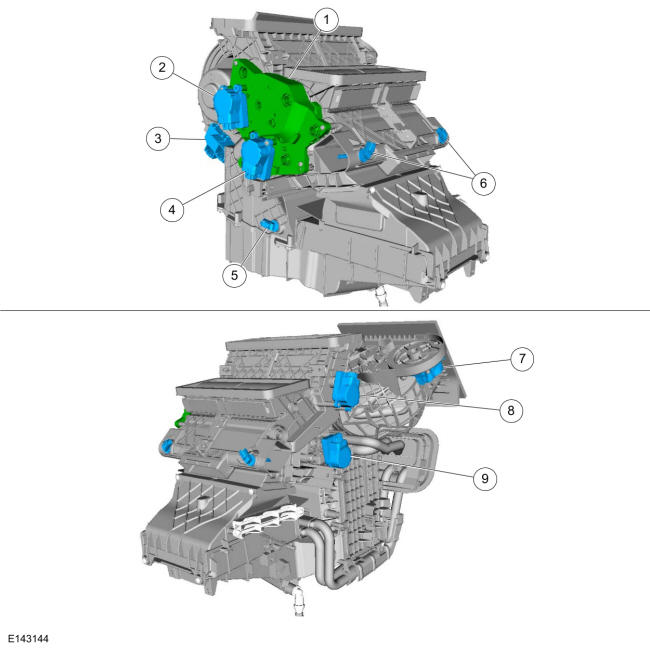

| Item | Description |
|---|---|
| 1 | Actuating assembly |
| 2 | Footwell vent door actuator |
| 3 | Blower motor speed control |
| 4 | Driver side temperature door actuator |
| 5 | Evaporator air temperature sensor |
| 6 | Footwell air discharge temperature sensors |
| 7 | Air inlet door actuator |
| 8 | Defrost vent/register door actuator |
| 9 | Passenger side temperature door actuator |

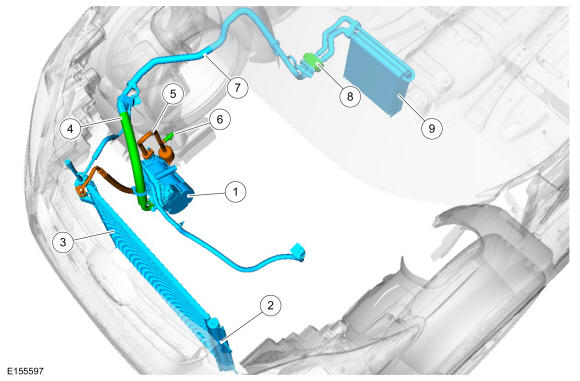

| Item | Description |
|---|---|
| 1 | A/C electric compressor (ACCM) |
| 2 | Receiver/drier element |
| 3 | Condenser |
| 4 | A/C compressor inlet line |
| 5 | A/C compressor to condenser discharge line |
| 6 | A/C pressure transducer |
| 7 | Thermostatic Expansion Valve (TXV) manifold and tube assembly |
| 8 | Thermostatic Expansion Valve (TXV) |
| 9 | Evaporator |
