Front Brake Pads: Installation

WARNING: This page is about a different car, the 2015 Ford C-Max. However, it is still accessible from the selected car via links, so may be relevant.

1.

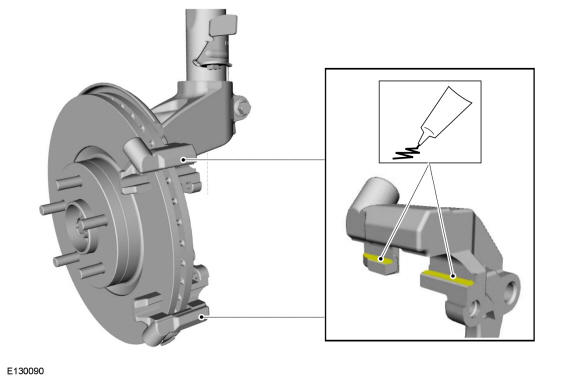

Apply the substance from the specified tube.
Material

: Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

GFD15364

Courtesy of FORD MOTOR COMPANY

2.

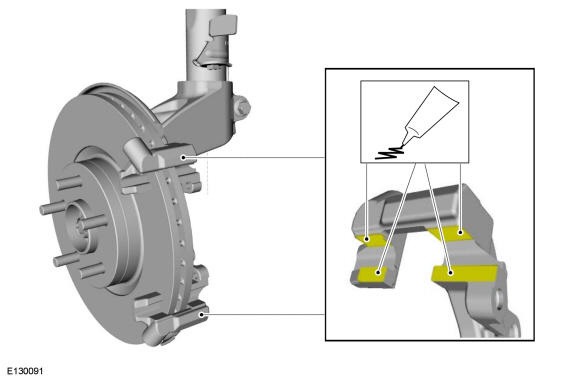

Apply the substance from the specified tube.
Material

: Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

GFD15365

Courtesy of FORD MOTOR COMPANY

3.

NOTE: The inboard brake pad is equipped with a wear indicator on the trailing edge of the brake pad. The brake pad backing is marked with an arrow that indicates the rotating direction of the brake disc.

To install, reverse the removal procedure.

4.

Depress the brake pedal several times, check the brake fluid level in the brake fluid reservoir and add the specified brake fluid as necessary.
