Component Bleeding

WARNING: This page is about a different car, the 2015 Ford C-Max. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s) / General Equipment

Master Cylinder Bleeding Set

Bleeding

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

Master Cylinder

NOTE: Make sure the area around the master cylinder cap is clean and free of foreign material.

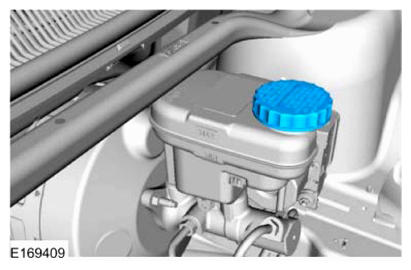

Remove the brake fluid reservoir cap.

Courtesy of E169409

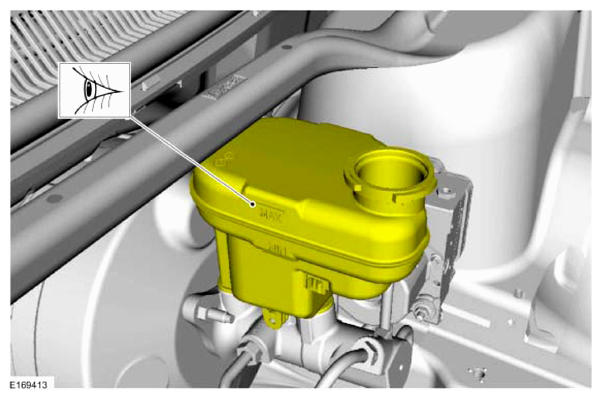

Fill the reservoir with clean, specified brake fluid. Refer to SPECIFICATIONS .

Courtesy of E169413

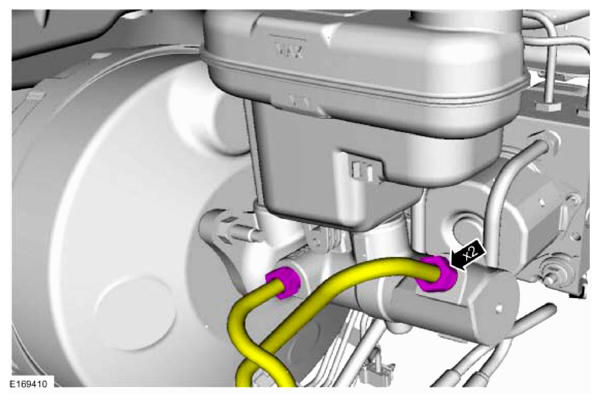

Loosen and remove the brake tube fittings.

Courtesy of E169410

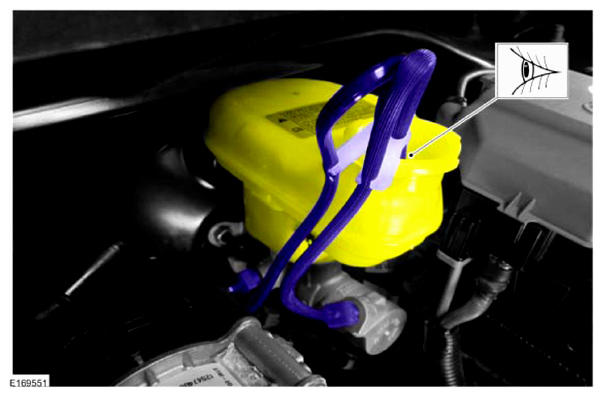

Install the master cylinder bleeding set.
Use the General Equipment: Master Cylinder Bleeding Set

Courtesy of E169551

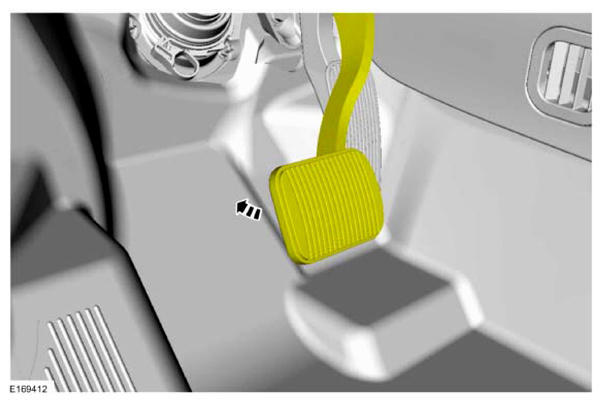

Have an assistant pump the brake pedal slowly until clear bubble free fluid flows from the brake tubes.

Courtesy of E169412
Remove the master cylinder bleeding set.
Use the General Equipment: Master Cylinder Bleeding Set

Courtesy of E169551
Tighten the brake tube fittings. Refer to SPECIFICATIONS .

Courtesy of E169410
Fill the reservoir with clean, specified brake fluid. Refer to SPECIFICATIONS .

Courtesy of E169413
Refer to Brake System Pressure Bleeding .
NOTE: Pressure bleeding the brake system is required anytime a hydraulic brake system component has been disconnected.
Pressure bleeding the brake system is required anytime a hydraulic brake system component has been disconnected. Refer to Brake System Pressure Bleeding .
