Battery Monitoring Sensor Connector End View (C1646)

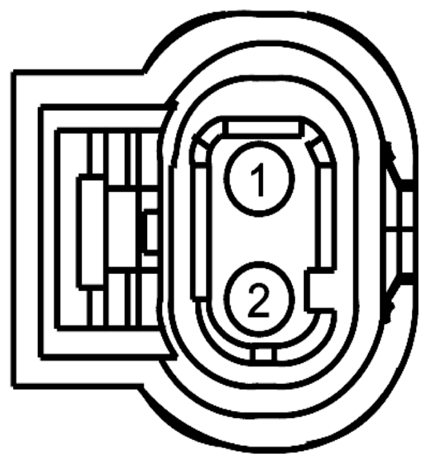

Fig 1: Identifying Battery Monitoring Sensor Connector (C1646)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB22 (BN-RD)	16	FUSE OR CIRCUIT BREAKER
2	CDC56 (WH)	16	BATTERY MONITORING SYSTEM LIN BUS
