Driver Door Window Control Switch Connector End View (C504B)

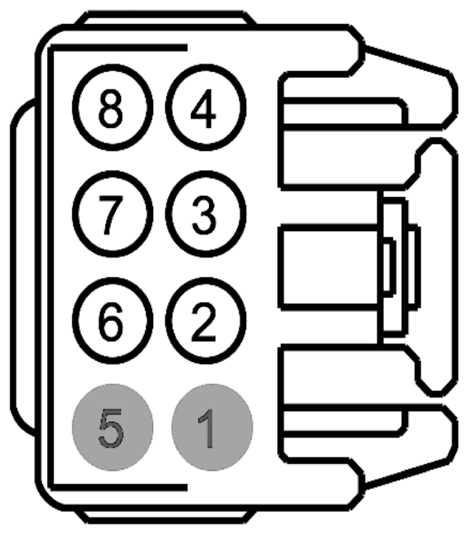

Fig 1: Identifying Driver Door Window Control Switch Connector (C504B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	GD134 (BK-VT)	12	GROUND
3	CPW11 (BU-GY)	12	CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 2
4	CPW10 (YE-OG)	12	CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS
5	*	*	Not Used
6	CBB16 (BU-GN)	12	FUSE OR CIRCUIT BREAKER
7	CPW13 (BN-YE)	12	CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 1
8	CPW12 (GN-OG)	12	CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS
