Engine Coolant Level Sensor Connector End View (C1061)

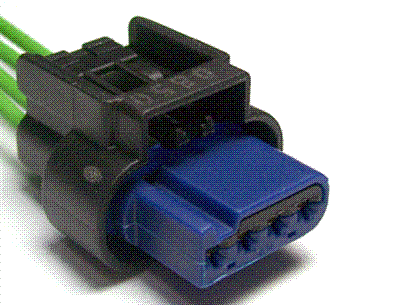

Fig 1: Identifying Engine Coolant Level Sensor (C1061)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBB40 (YE-GN)	20	FUSE OR CIRCUIT BREAKER
2	VDB04 (WH-BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
3	VDB05 (WH)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
4	57 (bk)	18	GROUND

Available Pigtail Kits
Pigtail Kit Part Number WPT-1309	Service Part Number: CU2Z-14S411-AYA  Gauge: 18  Pin material: Silver  Cavities: 4  Vehicle Uses Motor - Active Grill Shutter
Pigtail Kit Part Number WPT-1773	Service Part Number: CU2Z-14S411-AYB  Gauge: 18  Pin material: Silver  Cavities: 4  Vehicle Uses Motor - Active Grill Shutter Motor - Fuel Filler Door Motor - Intercooler Pump Sensor - Manifold Pressure/Intake Temperature Sensor - Particulate Filter Delta Pressure
