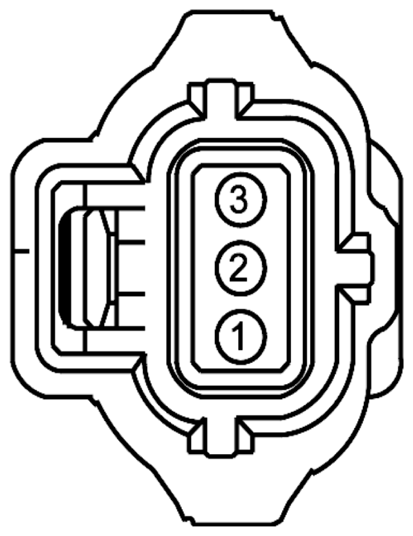

Generator Connector End View (C102A)

Fig 1: Identifying Generator Connector (C102A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	DUMMY (BK)	20	#N/A
1	DUMMY 2 (BK)	20	#N/A
2	VDN06 (WH-GN)	20	CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1	2.5L
2	VDN08 (VT-BN)	20	CTRL MOD. - LIN BUS # ACTIVE GRILLE SHUTTER MODULE	2.0L
3	DUMMY 1 (BK)	20	#N/A
3	DUMMY1 (BK)	20	#N/A

Available Pigtail Kits

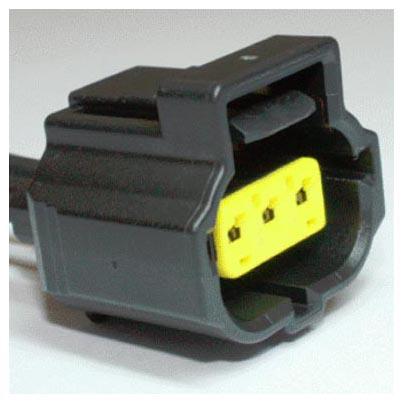

Pigtail Kit Part Number WPT-118	Service Part Number: 1U2Z-14S411-TA  Gauge: 14  Pin material: Tin  Cavities: 3  Vehicle Uses Alternator Sensor - Brake Fluid Level Sensor - Throttle Position

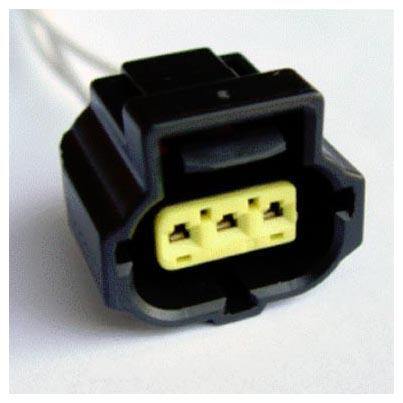

Pigtail Kit Part Number WPT-777	Service Part Number: 3U2Z-14S411-ESAA  Gauge: 18  Pin material: Gold  Cavities: 3  Vehicle Uses Pretensioner - Seat Belt (Passenger)
