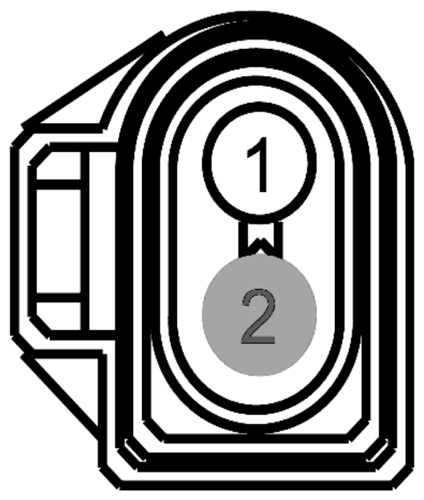

Generator Connector End View (C1104B)

Fig 1: Identifying Generator Connector (C1104B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VDC46 (BU-BN)	20	CTRL MOD. - GENERATOR (ALTERNATOR) LIN BUS (NON-PCM CONTROLLED)
2	*	*	Not Used

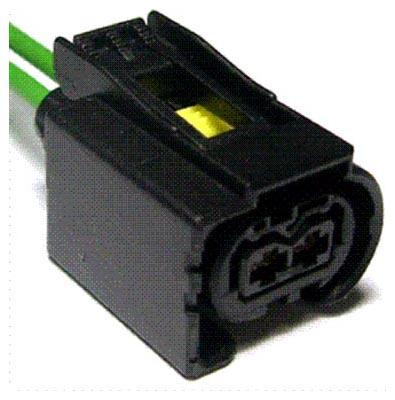

Available Pigtail Kits
Pigtail Kit Part Number WPT-1331	Service Part Number: DU2Z-14S411-BA  Gauge: 16  Pin material: Silver  Cavities: 2  Vehicle Uses Alternator
