Heated Seat Module, Right Front Connector End View (C329B)

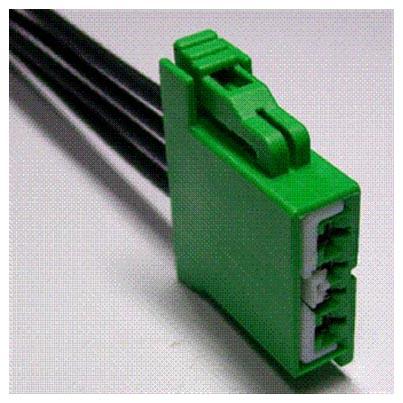

Fig 1: Identifying Heated Seat Module, Right Front Connector (C329B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CHS02 (YE-BU)	16	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER +
2	RHS05 (YE-VT)	20	CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP.
3	VHS26 (VT)	20	SENSOR - CUSHION TEMP. DRIVER
4	RHS01 (WH-VT)	16	CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER -

Available Pigtail Kits
Pigtail Kit Part Number WPT-1319	Service Part Number: DU2Z-14S411-GA  Gauge: 14 16  Pin material: Tin  Cavities: 4  Vehicle Uses Element - Heated Seat
