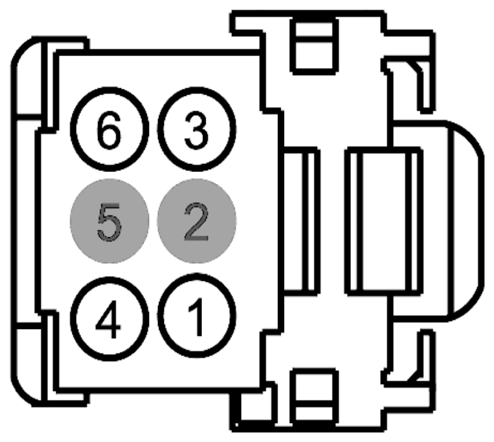

Ignition Switch Connector End View (C2195)

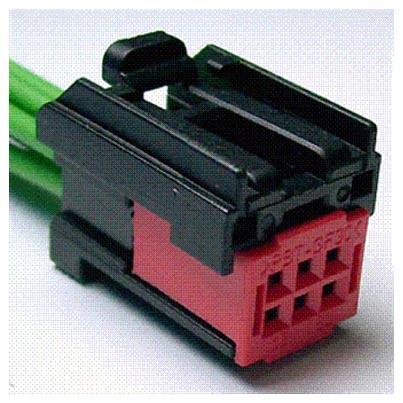

Fig 1: Identifying Ignition Switch Connector (C2195)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPK36 (VT-BN)	20	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED
2	*	*	Not Used
3	CPK34 (BN-VT)	22	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 +
4	CPK35 (YE-OG)	22	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 +
5	*	*	Not Used
6	SBP78 (BN-RD)	22	FUSE - 78 OR CIRCUIT BREAKER

Available Pigtail Kits
Pigtail Kit Part Number WPT-1237	Service Part Number: 3U2Z-14S411-PNB  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Switch - Hazard Warning Switch - Message Center Switch - Start/Stop
