Ignition Switch Connector End View (C250)

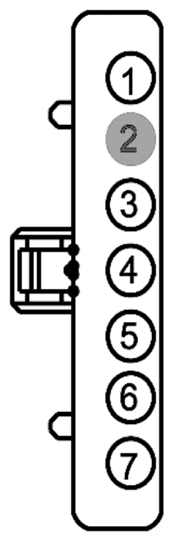

Fig 1: Identifying Ignition Switch Connector (C250)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CDC32 (BN-YE)	18	SWITCH - IGNITION # RUN
2	*	*	Not Used
3	CET52 (GN)	22	SWITCH - TRANSMISSION PARK DETECT
4	SBP78 (BN-RD)	18	FUSE - 78 OR CIRCUIT BREAKER
5	CDC30 (BU-GY)	22	SWITCH - IGNITION # KEY IN
6	CDC33 (VT-GN)	22	SWITCH - IGNITION # RUN; ACCESSORY
7	CDC35 (BU-WH)	20	SWITCH - IGNITION # START

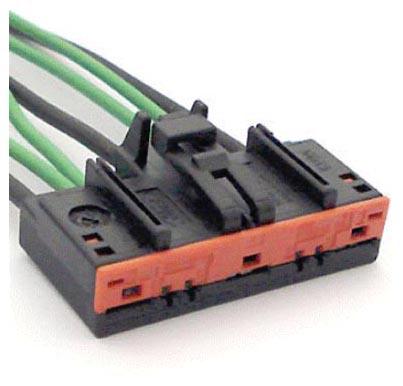

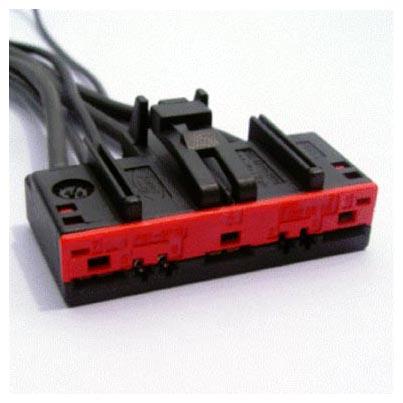

Available Pigtail Kits
Pigtail Kit Part Number WPT-804	Service Part Number: 3U2Z-14S411-FMAA  Gauge: 12 16 20  Pin material: Tin  Cavities: 7  Vehicle Uses Speaker - Tweeter - LH - Front
Pigtail Kit Part Number WPT-957	Service Part Number: 3U2Z-14S411-FMAB  Gauge: 12 14  Pin material: Tin & Silver  Cavities: 7  Vehicle Uses Switch - Ignition
