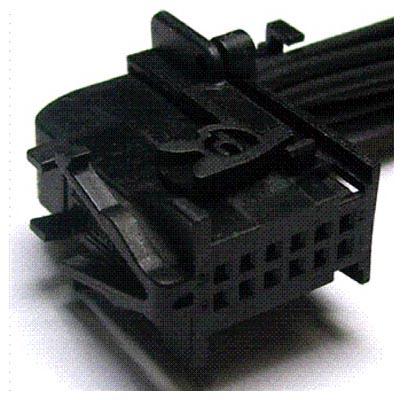

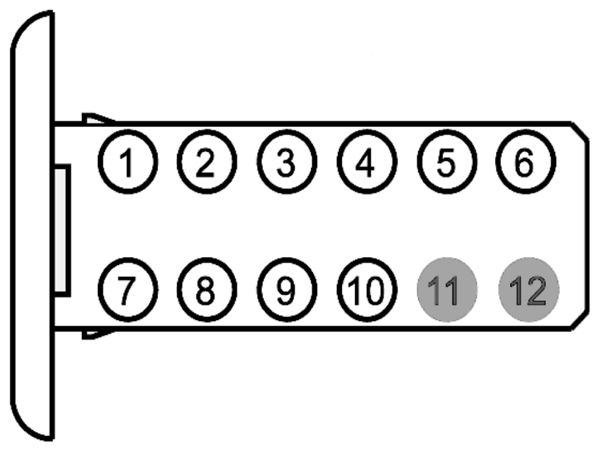

Instrument Panel Cluster (IPC) Module Connector End View (C220)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VDB07 (VT-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 2 | VDB06 (GY-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 3 | SBP08 (VT-RD) | 22 | FUSE OR CIRCUIT BREAKER | |
| 4 | VDB14 (VT-GY) | 22 | CTRL MOD. - MULTIMEDIA CAN BUS LOW | |
| 5 | VDB13 (BU-GY) | 22 | CTRL MOD. - MULTIMEDIA CAN BUS HIGH | |
| 6 | RMC27 (WH-BN) | 22 | CTRL MOD. - INSTRUMENT CLUSTER # SWITCH INFORMATION/MESSAGE CENTER SELECT | |
| 7 | VMC29 (YE) | 22 | SWITCH - INFORMATION/MESSAGE CENTER SELECT | |
| 8 | CMC29 (GN-VT) | 22 | SWITCH - INFORMATION/MESSAGE CENTER SELECT + | |
| 9 | CET52 (GN) | 22 | SWITCH - TRANSMISSION PARK DETECT | |
| 10 | GD138 (BK) | 22 | GROUND - COWL SIDE/PILLAR A RIGHT (6L2T) | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1278 | Service Part Number: CU2Z-14S411-ABA Gauge: 18 Pin material: Tin (greased) Cavities: 12 Vehicle Uses
|
