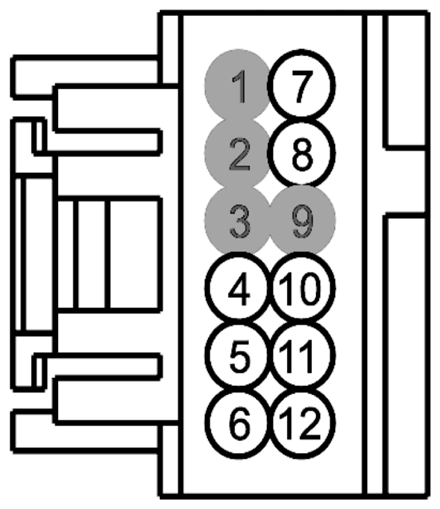

Transmission Control Switch (TCS) Connector End View (C3245)

Fig 1: Identifying Transmission Control Switch Connector (C3245)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	RET42 (WH-BN)	22	SWITCH - TRANSMISSION SELECT SHIFT (SNS GND)
5	CET43 (GY)	22	SWITCH - TRANSMISSION SELECT SHIFT # UP (SST)
6	CET42 (GN-VT)	22	SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)
7	VLN04 (VT-GY)	22	SWITCH - IP/SWITCH ILLUMINATION
8	GD133 (BK)	20	GROUND - COWL SIDE/PILLAR A LEFT (6L2T)
9	*	*	Not Used
10	CET52 (GN)	22	SWITCH - TRANSMISSION PARK DETECT
11	GD133 (BK)	20	GROUND - COWL SIDE/PILLAR A LEFT (6L2T)
12	CET53 (BU-OG)	20	CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK

Available Pigtail Kits

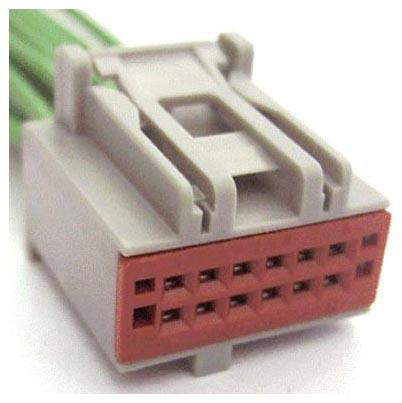

Pigtail Kit Part Number WPT-949	Service Part Number: 3U2Z-14S411-BMAB  Gauge: 18  Pin material: Silver  Cavities: 12  Vehicle Uses Control - Navigation Display Module - Driver Door Module - Front Interface Monitor - Video/DVD Switch - Gear Shift Select/Neutral Safety

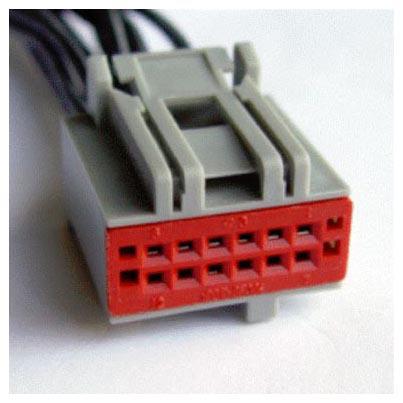

Pigtail Kit Part Number WPT-760	Service Part Number: 3U2Z-14S411-BMAA  Gauge: 18  Pin material: Tin  Cavities: 12  Vehicle Uses Coil - Ignition Lamp - Storage Compartment - Trunk Mirror - Rearview Module - Heated Seat (Rear)
