Main Control Cover: Installation

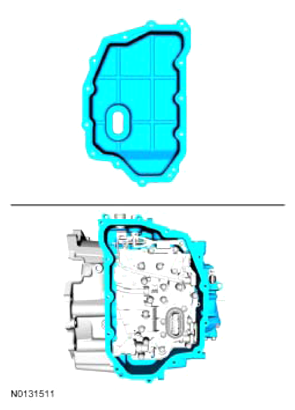

  1. Clean the main control cover and transmission sealing surfaces.
    G08031001
  2. NOTE: Be sure the sealing surface of the torque converter housing and the main control cover are free of oil before applying silicone.

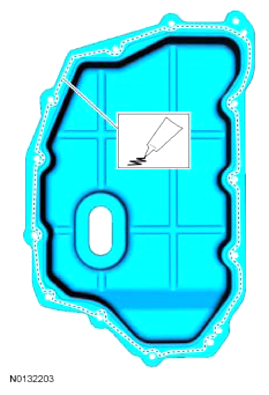

    Apply silicone to the sealing surface of the main control cover.

    G08031002
  3. NOTE: Inspect the main control-to-main control cover grommet to make sure that it seals on the inside of the main control cover or a transmission fluid leak will occur.
    NOTE: Install the studbolts in the locations noted during disassembly.

    Install the main control cover on the transmission and install the 13 main control cover bolts.

    • Torque: 12 Nm (106 lb-in).
      G08031000
  4. Install the transmission fluid cooler thermal bypass valve on the main control cover studbolts and install the 2 transmission fluid cooler thermal bypass valve bracket nuts.
    • Torque: 9 Nm (80 lb-in).
      G08030999
  5. Connect the transmission main electrical connector.
    G08030998
  6. Install the CAC  outlet tube on the CAC  and tighten the clamp.
    • Torque: 5 Nm (44 lb-in).
      G08030997

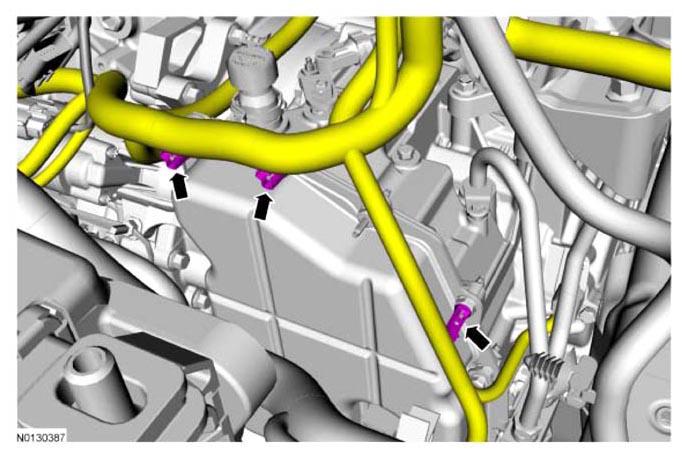

  7. Install the 3 wiring retainers on the main control cover studbolts.
    G08030996
  8. Install the ACL  . REFER to INTAKE AIR SYSTEM COMPONENTS - EXPLODED VIEW .
  9. Fill the transmission fluid. Refer to TRANSMISSION FLUID DRAIN AND REFILL .
