Audio System/Navigation: Notes

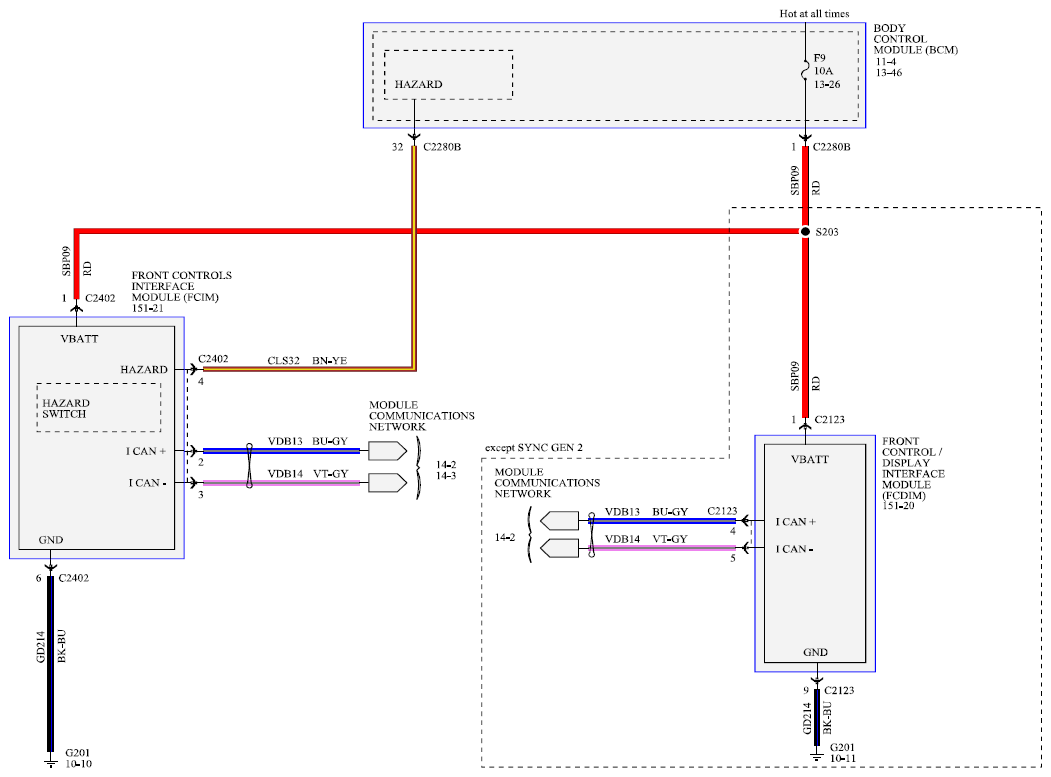

Fig 1: Audio System Navigation - Wiring Diagram (1 Of 4)
G09231088Courtesy of FORD MOTOR CO.

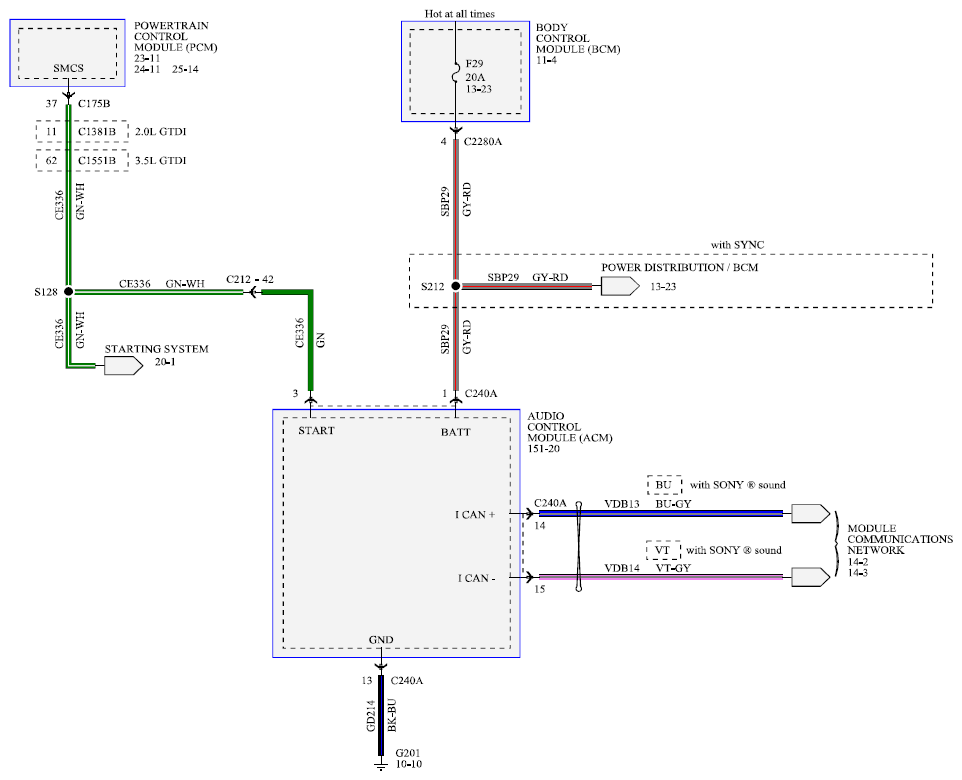

Fig 2: Audio System Navigation - Wiring Diagram (2 Of 4)
G09231089Courtesy of FORD MOTOR CO.

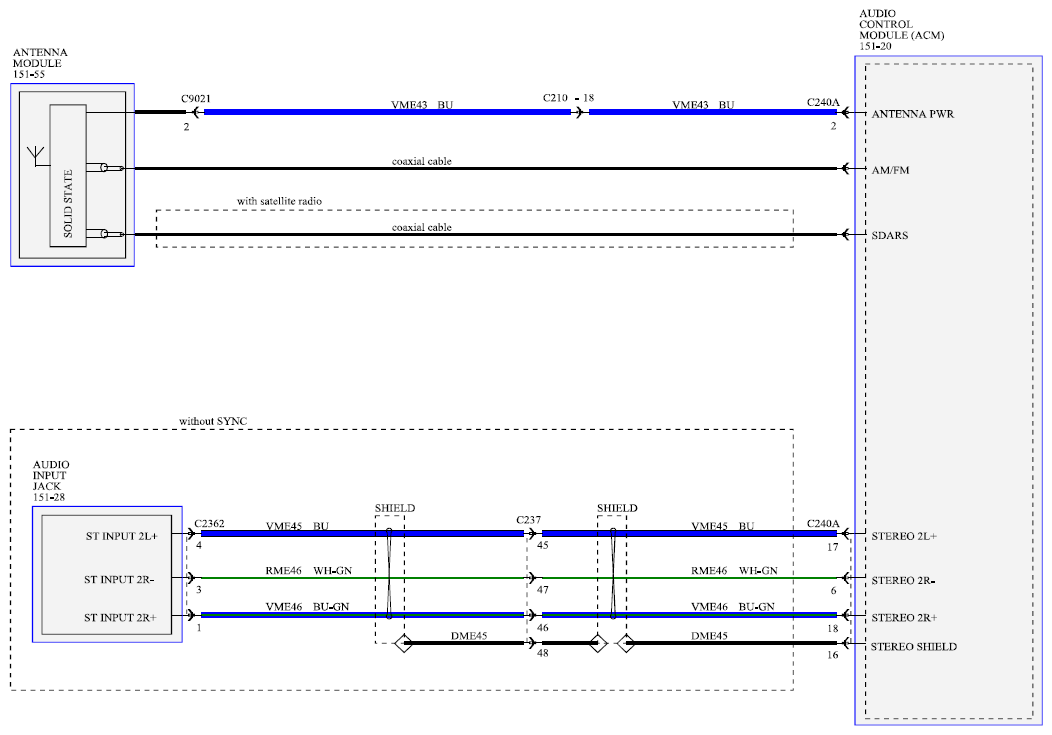

Fig 3: Audio System Navigation - Wiring Diagram (3 Of 4)
G09231090Courtesy of FORD MOTOR CO.

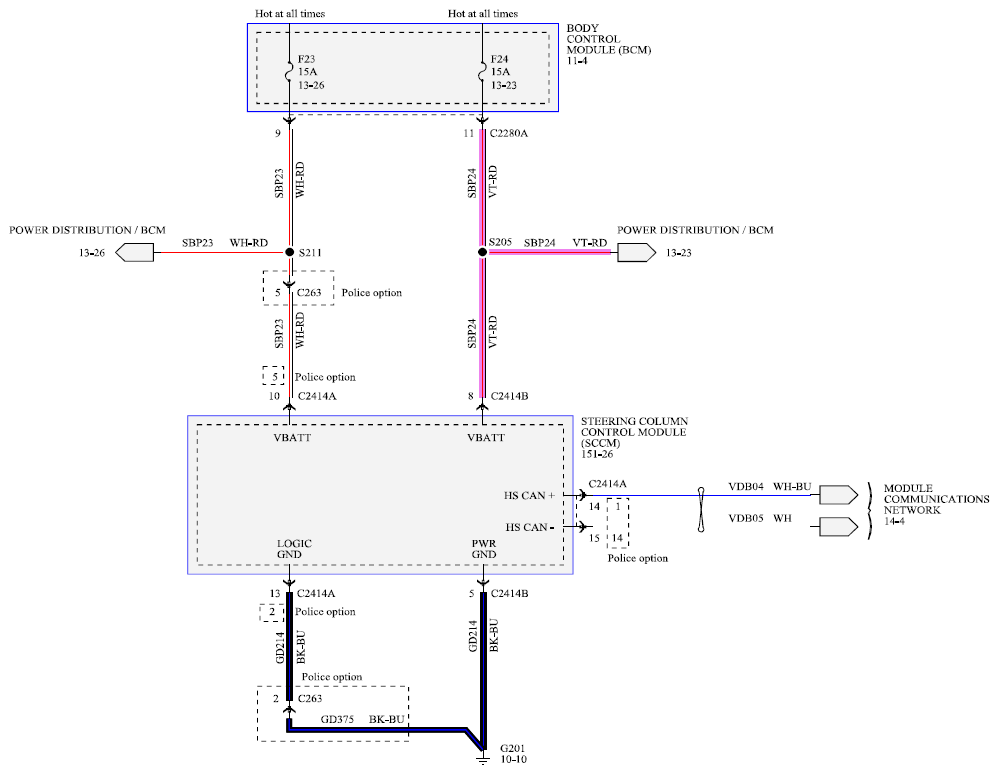

Fig 4: Audio System Navigation - Wiring Diagram (4 Of 4)
G09231105Courtesy of FORD MOTOR CO.
