Component Locations Views

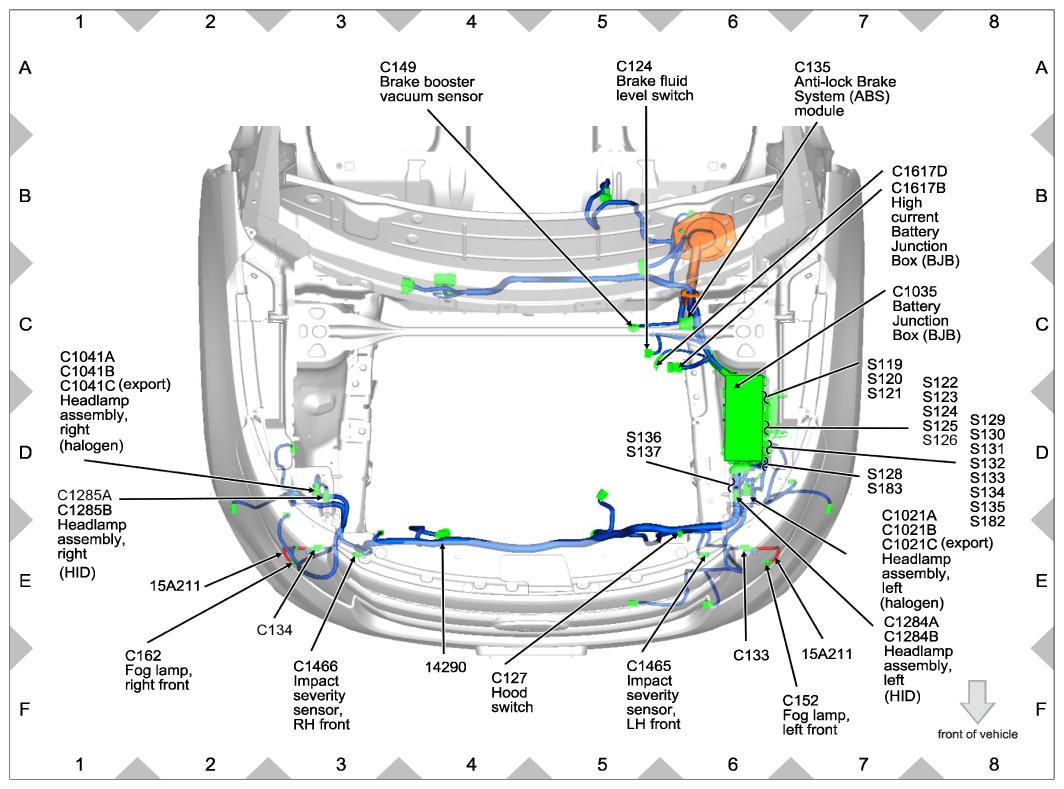

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 6)

G09230308

Courtesy of FORD MOTOR CO.

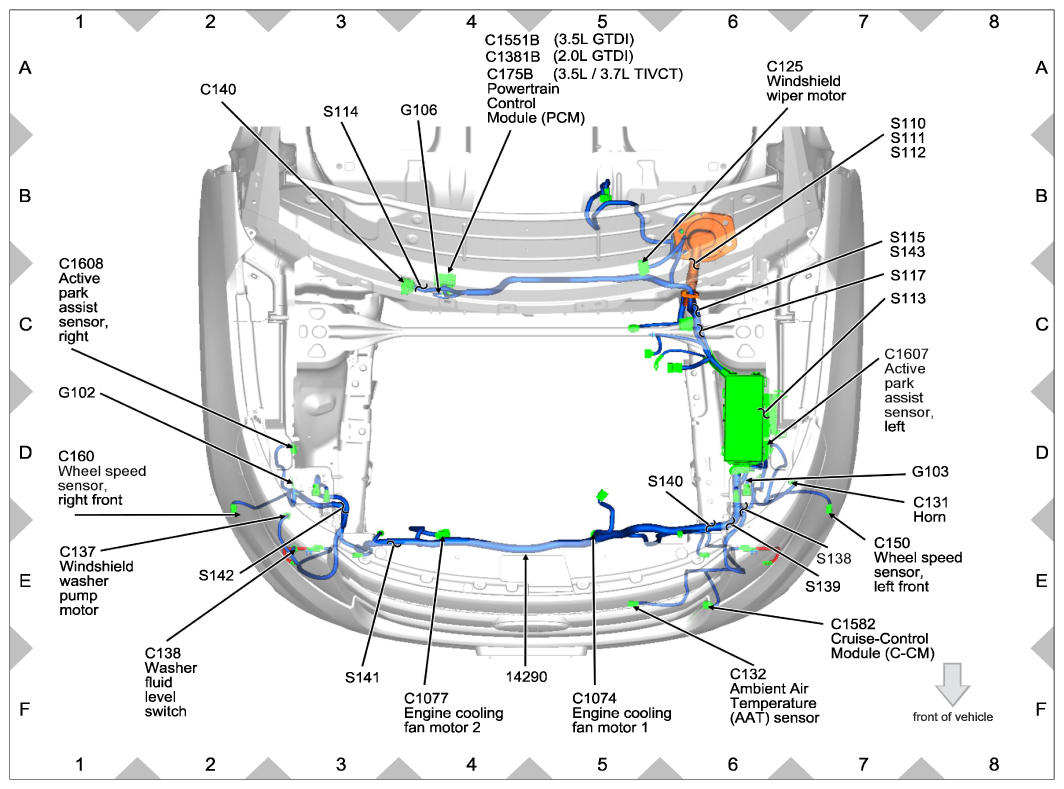

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 6)

G09230309

Courtesy of FORD MOTOR CO.

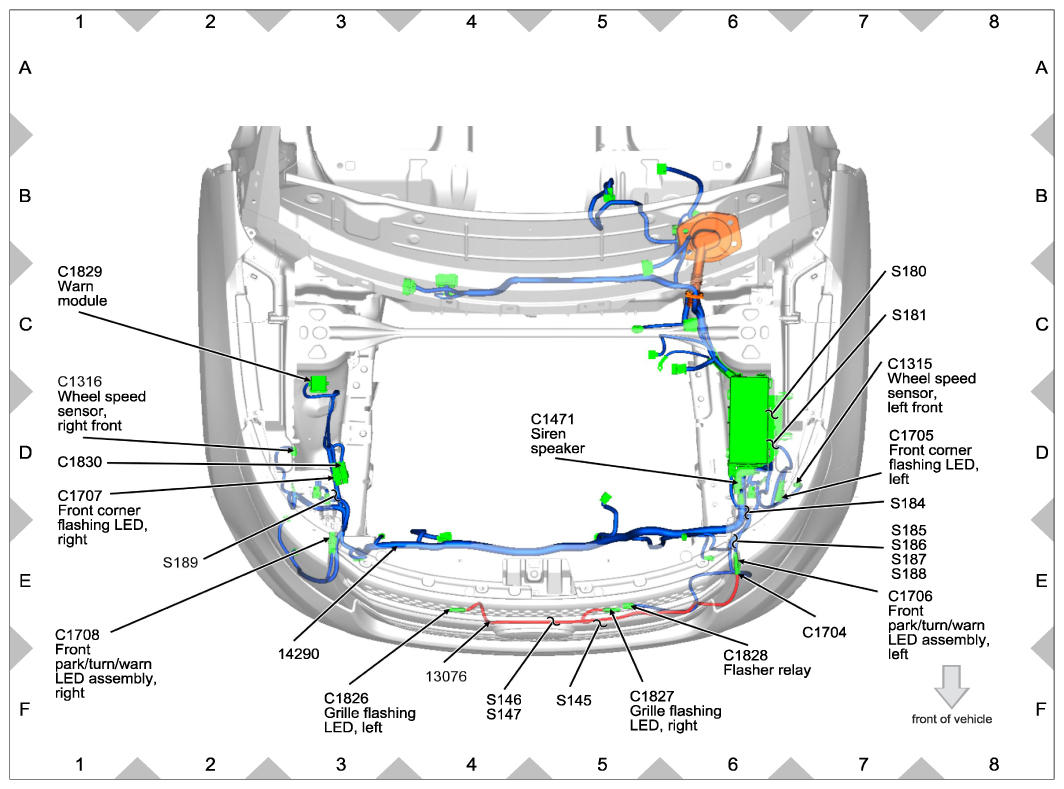

Fig 3: Engine Compartment Wiring Harness Connectors Location (3 Of 6)

G09230310

Courtesy of FORD MOTOR CO.

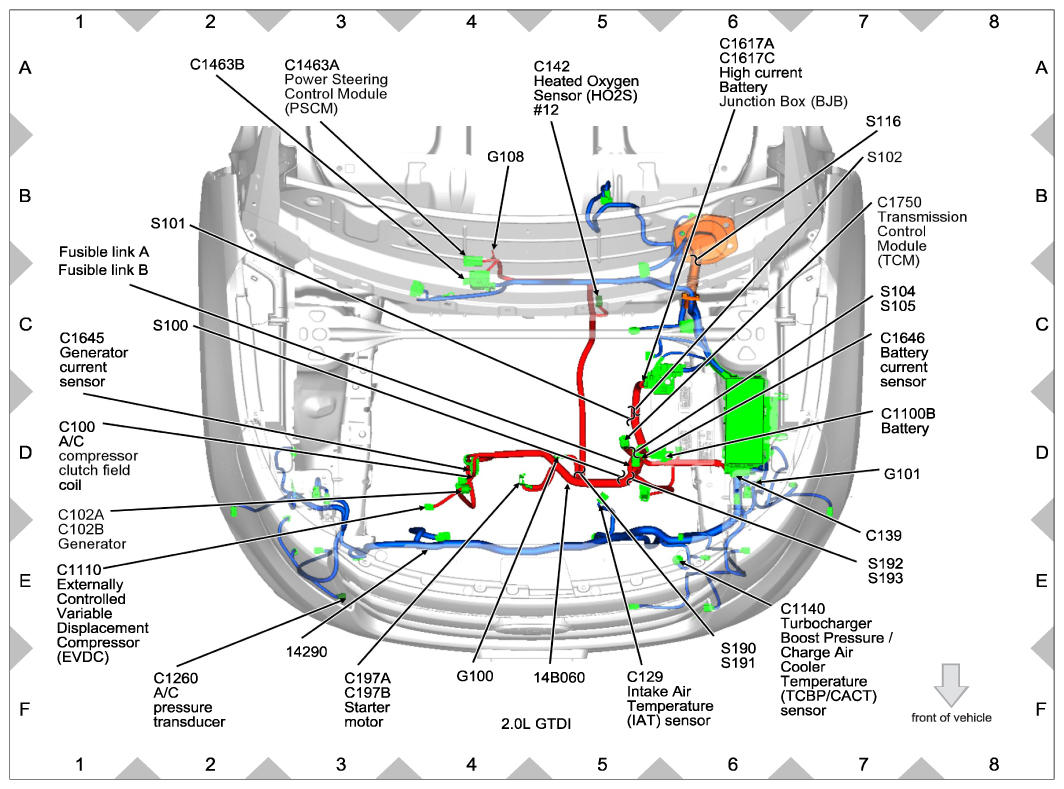

Fig 4: Engine Compartment Wiring Harness Connectors Location (4 Of 6)

G09230311

Courtesy of FORD MOTOR CO.

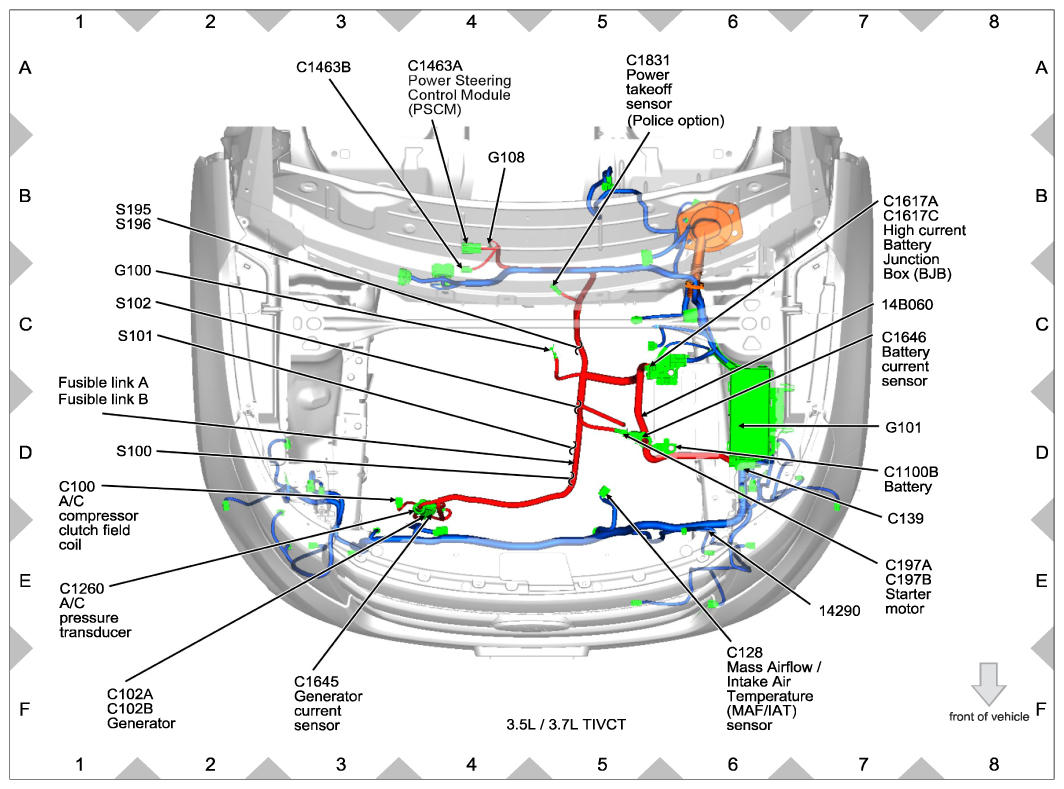

Fig 5: Engine Compartment Wiring Harness Connectors Location (5 Of 6)

G09230312

Courtesy of FORD MOTOR CO.

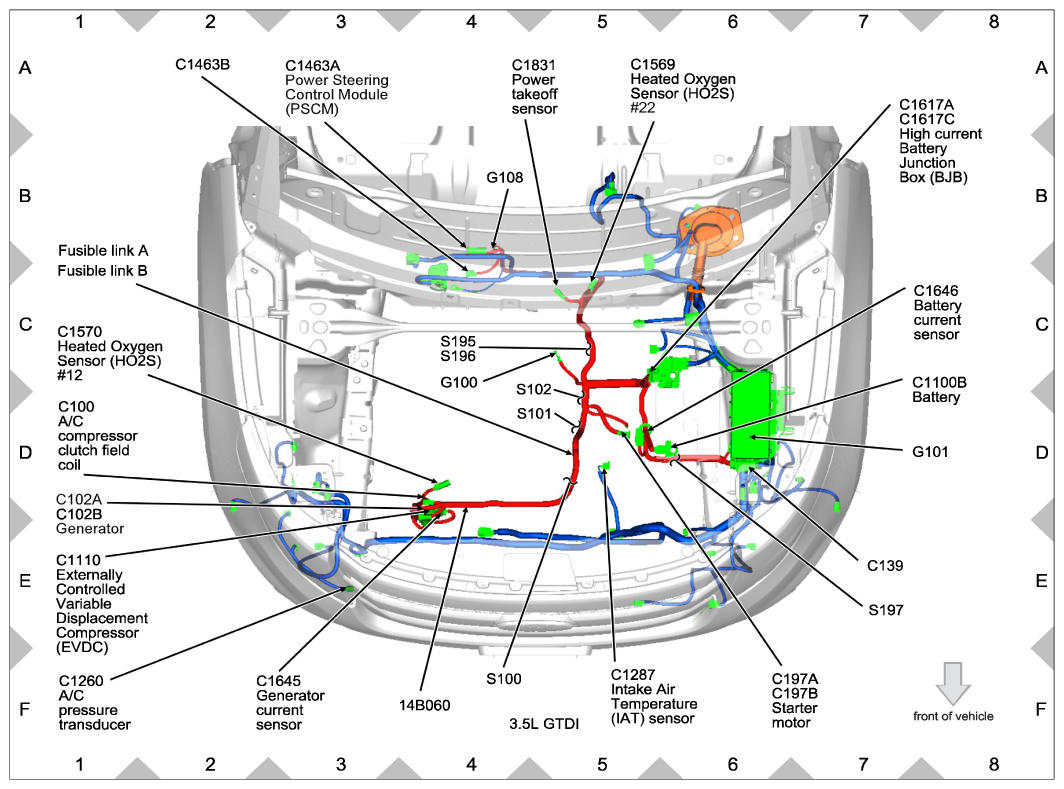

Fig 6: Engine Compartment Wiring Harness Connectors Location (6 Of 6)

G09230313

Courtesy of FORD MOTOR CO.

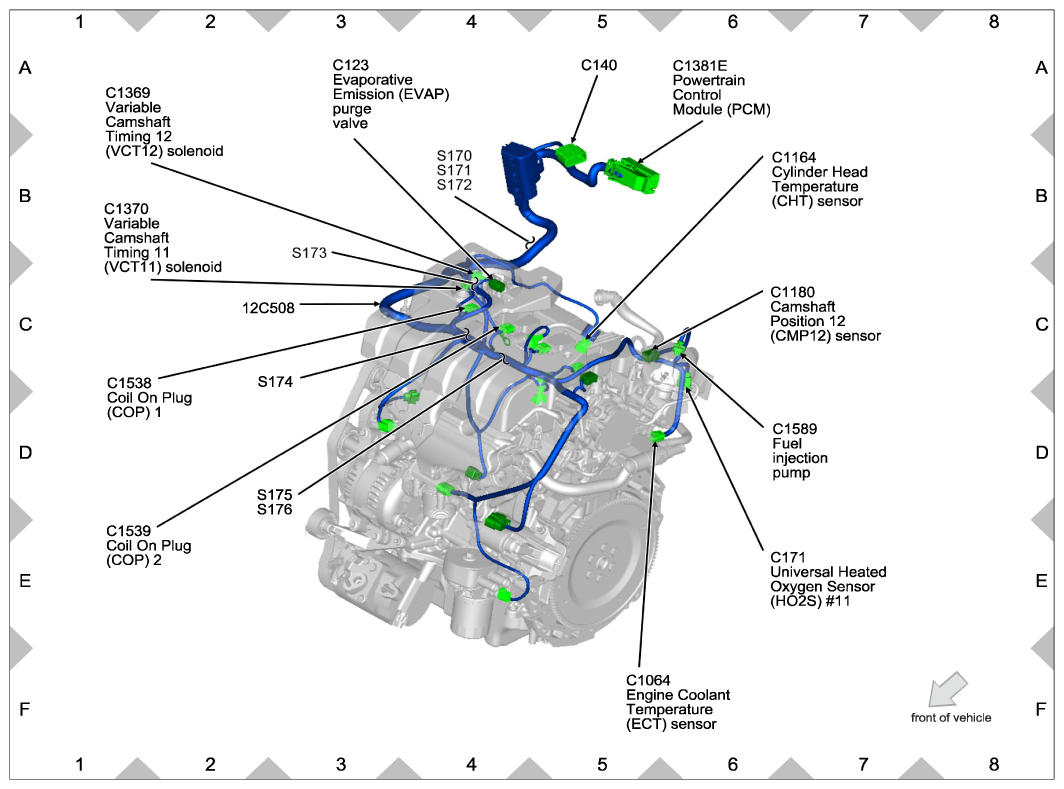

Fig 7: Engine Wiring Harness Connectors Location (1 Of 3) (4 Cyl)

G09230314

Courtesy of FORD MOTOR CO.

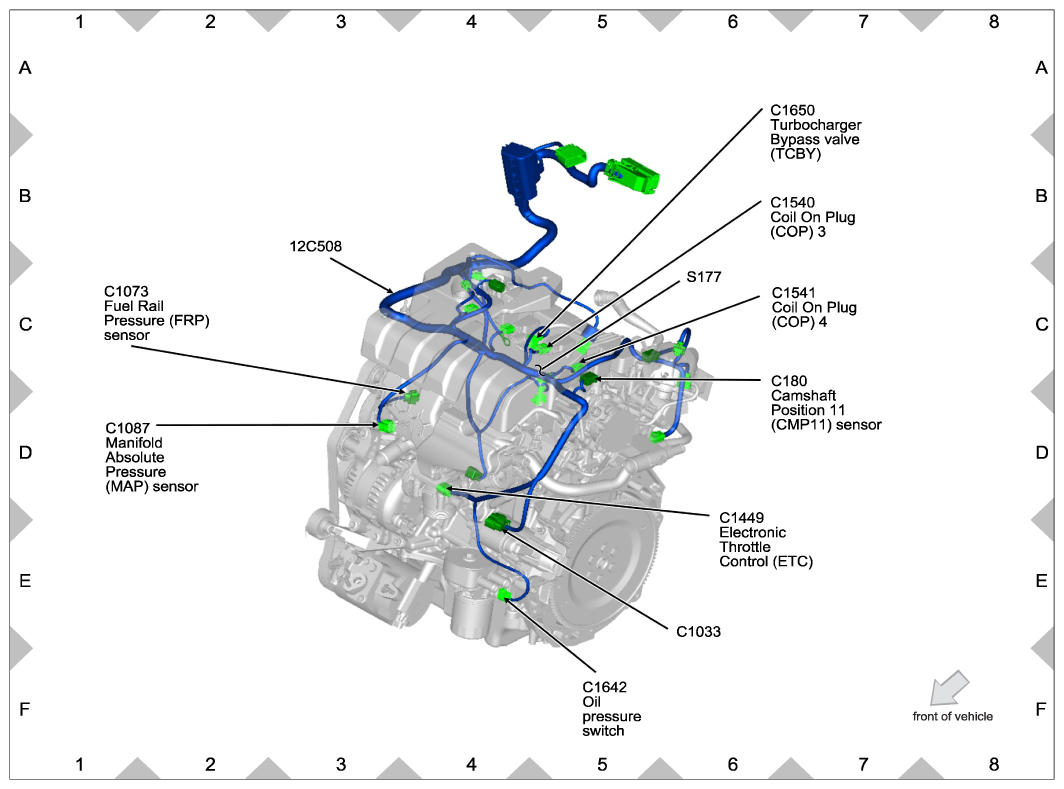

Fig 8: Engine Wiring Harness Connectors Location (2 Of 3) (4 Cyl)

G09230315

Courtesy of FORD MOTOR CO.

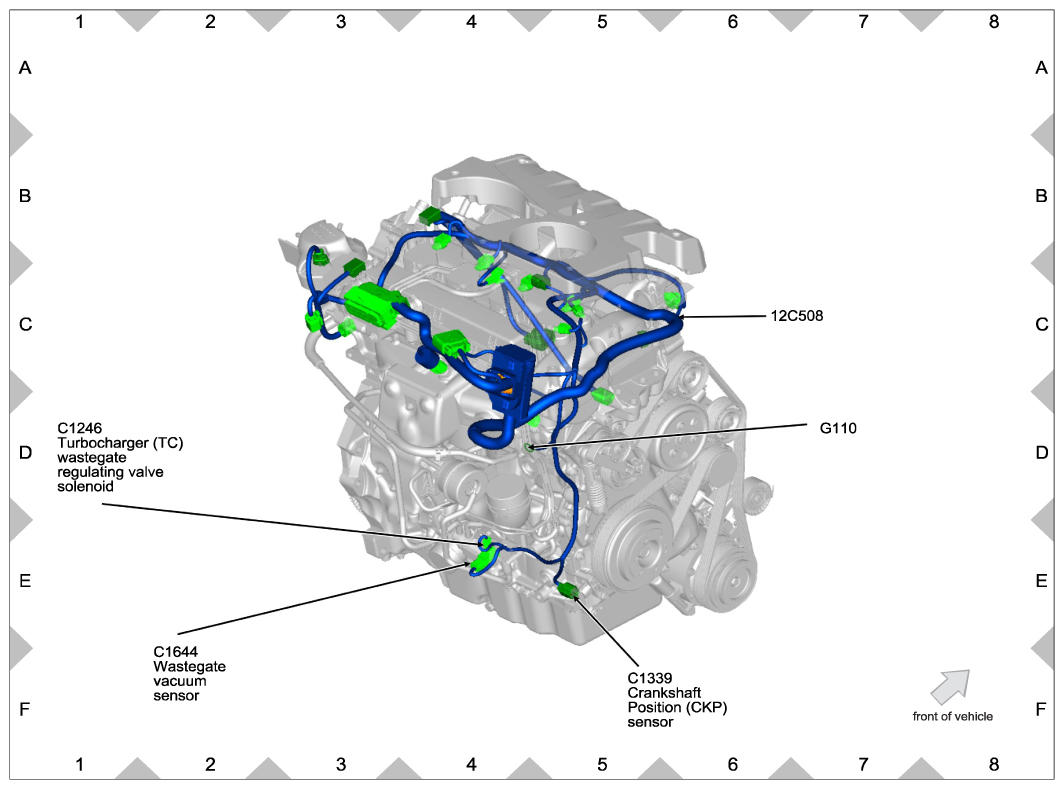

Fig 9: Engine Wiring Harness Connectors Location (3 Of 3) (4 Cyl.)

G09230316

Courtesy of FORD MOTOR CO.

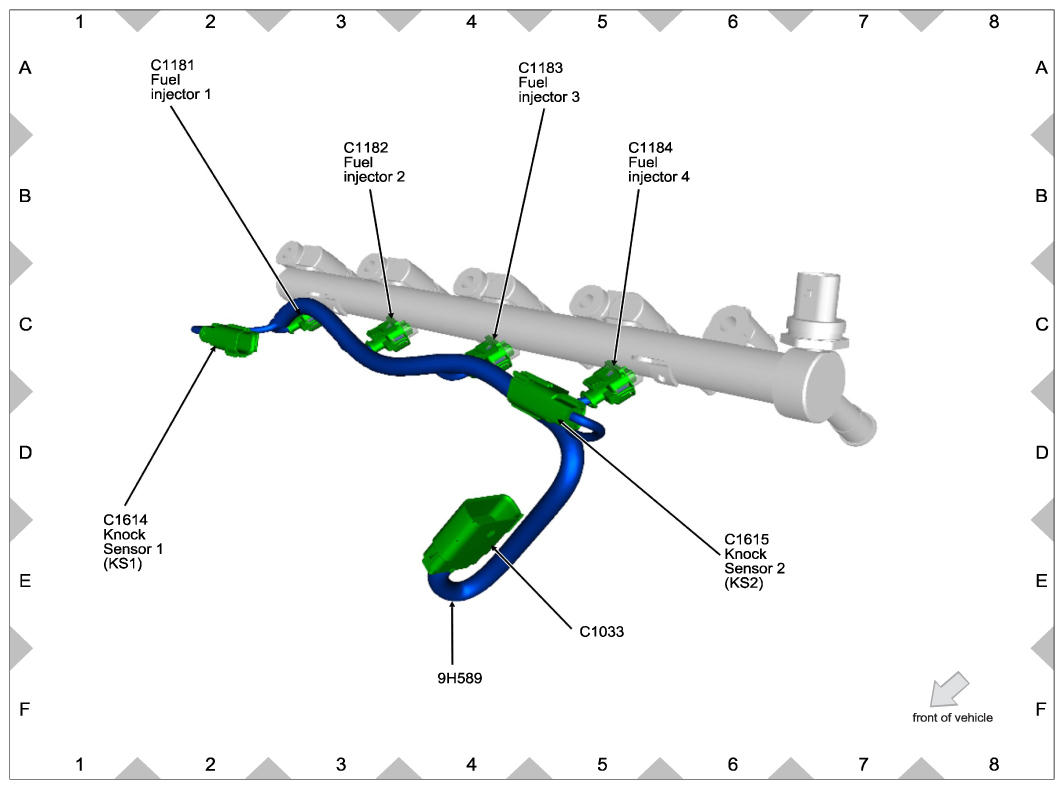

Fig 10: Fuel Injector Wiring Harness Connectors Location (4Cyl.)

G09230317

Courtesy of FORD MOTOR CO.

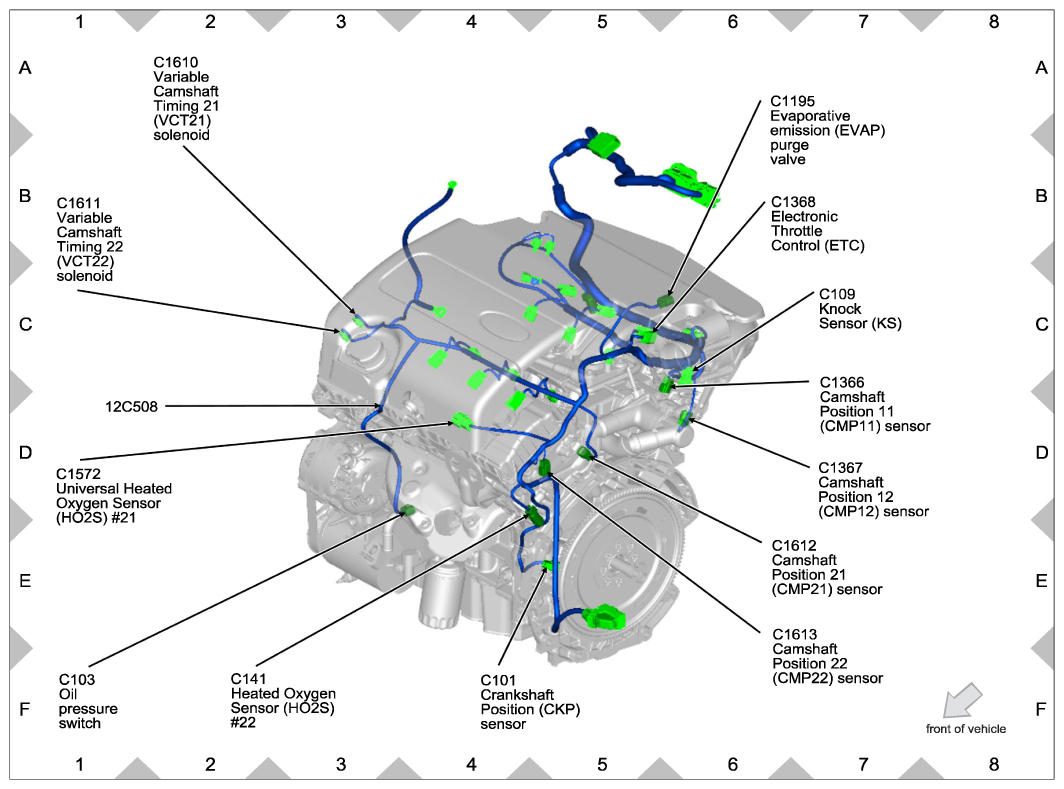

Fig 11: Engine Wiring Harness Connectors Location (1 Of 6) (6 Cyl.)

G09230318

Courtesy of FORD MOTOR CO.

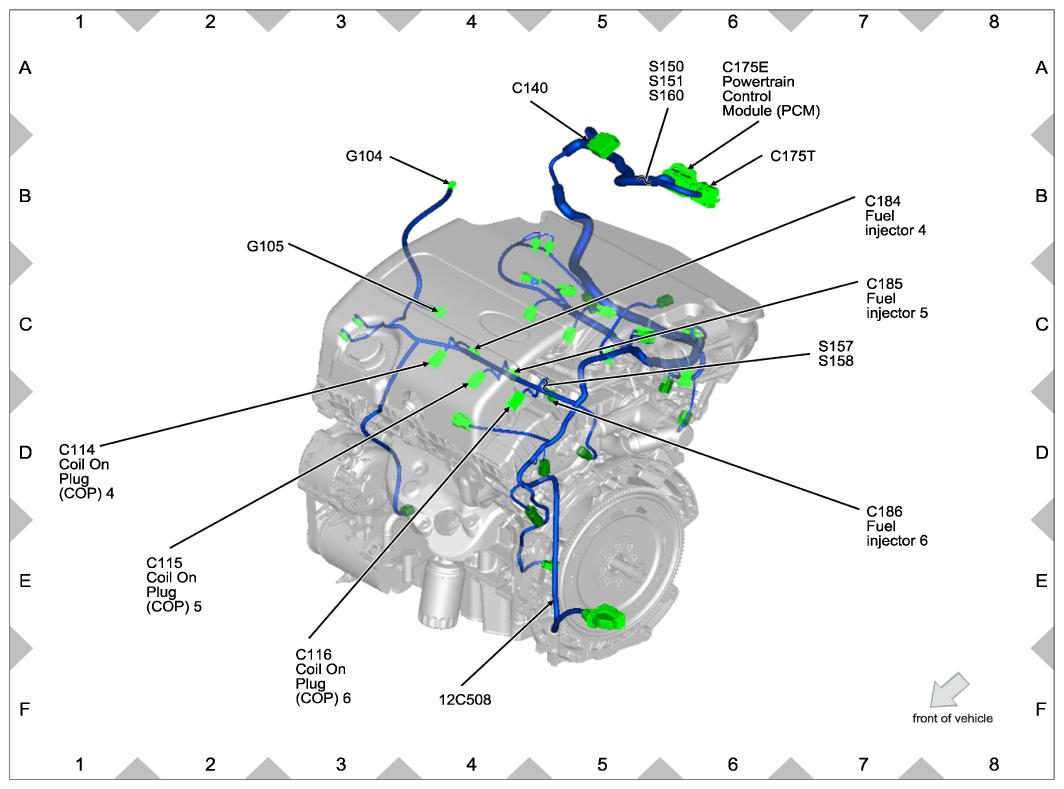

Fig 12: Engine Wiring Harness Connectors Location (2 Of 6) (6 Cyl.)

G09230319

Courtesy of FORD MOTOR CO.

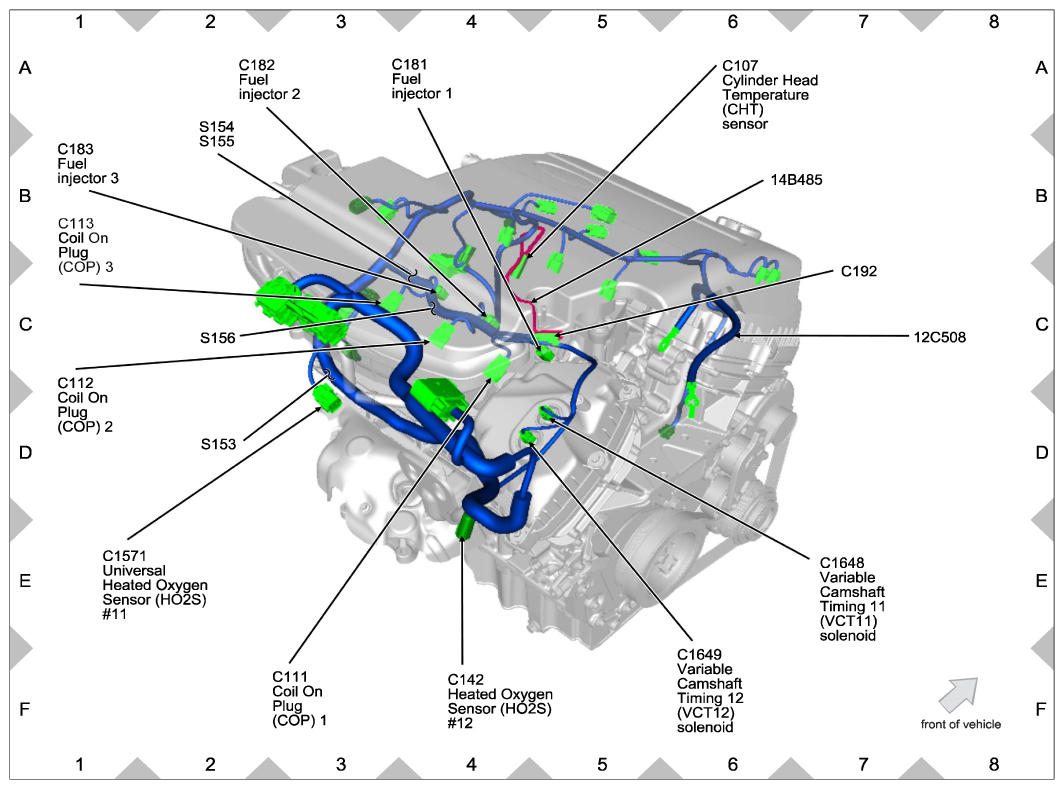

Fig 13: Engine Wiring Harness Connectors Location (3 Of 6) (6 Cyl.)

G09230320

Courtesy of FORD MOTOR CO.

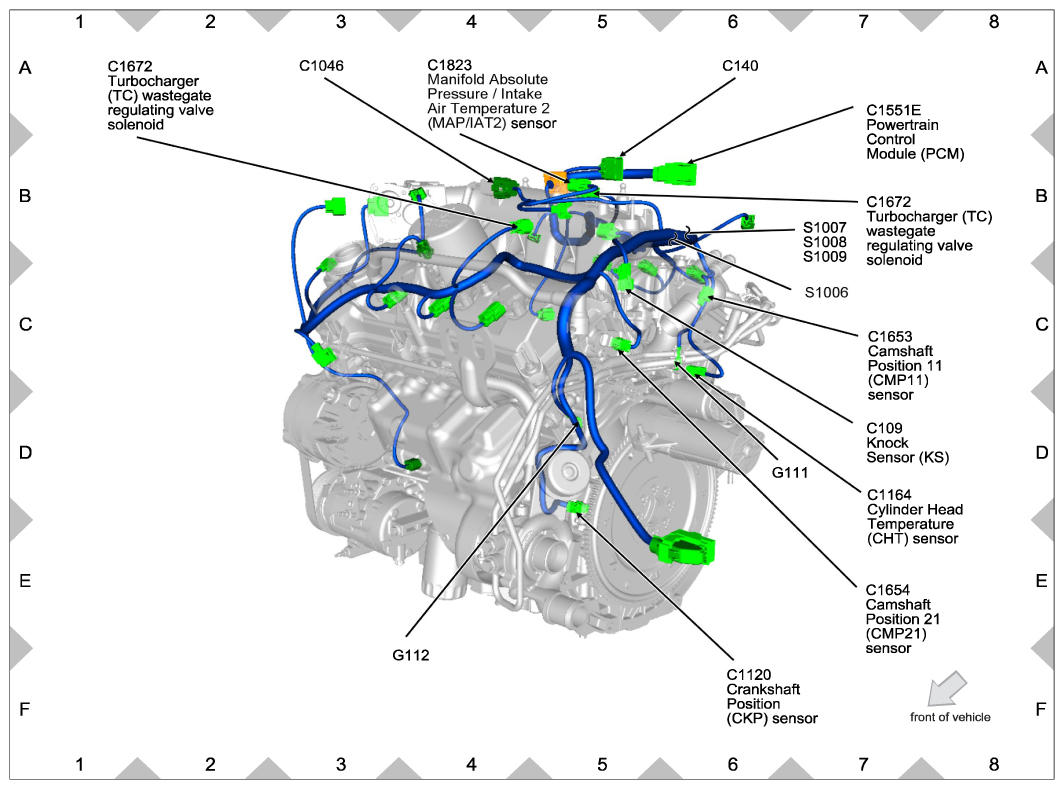

Fig 14: Engine Wiring Harness Connectors Location (4 Of 6) (6 Cyl.)

G09230321

Courtesy of FORD MOTOR CO.

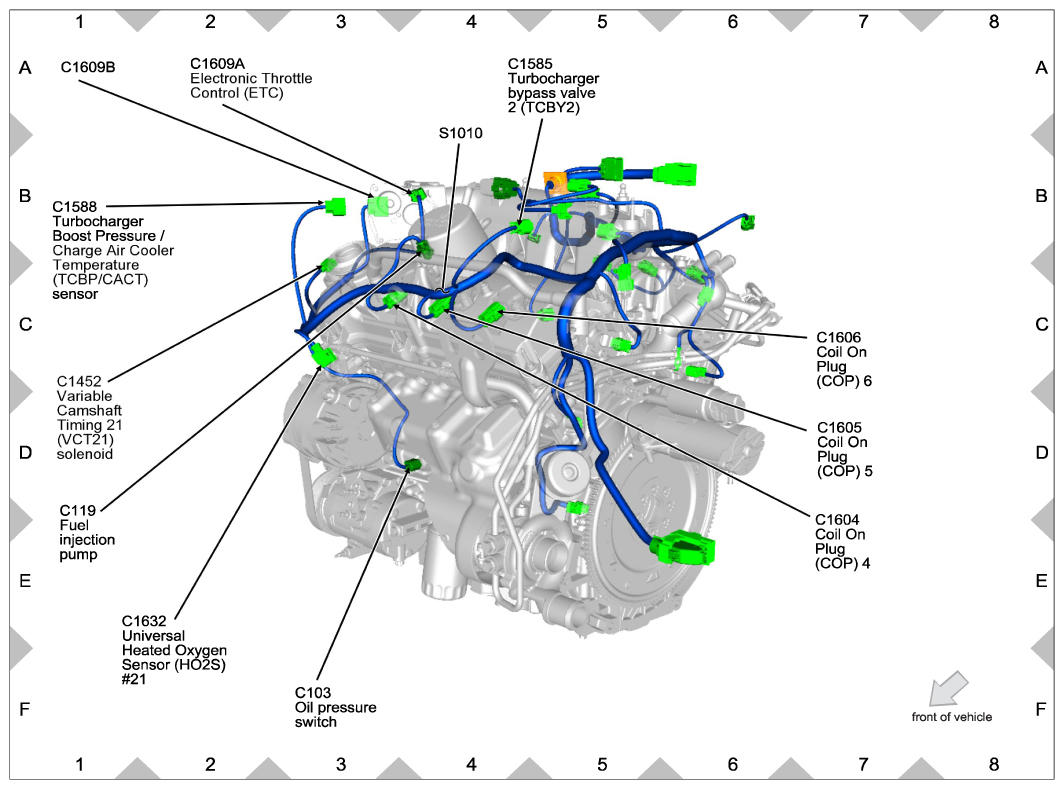

Fig 15: Engine Wiring Harness Connectors Location (5 Of 6) (6 Cyl.)

G09230322

Courtesy of FORD MOTOR CO.

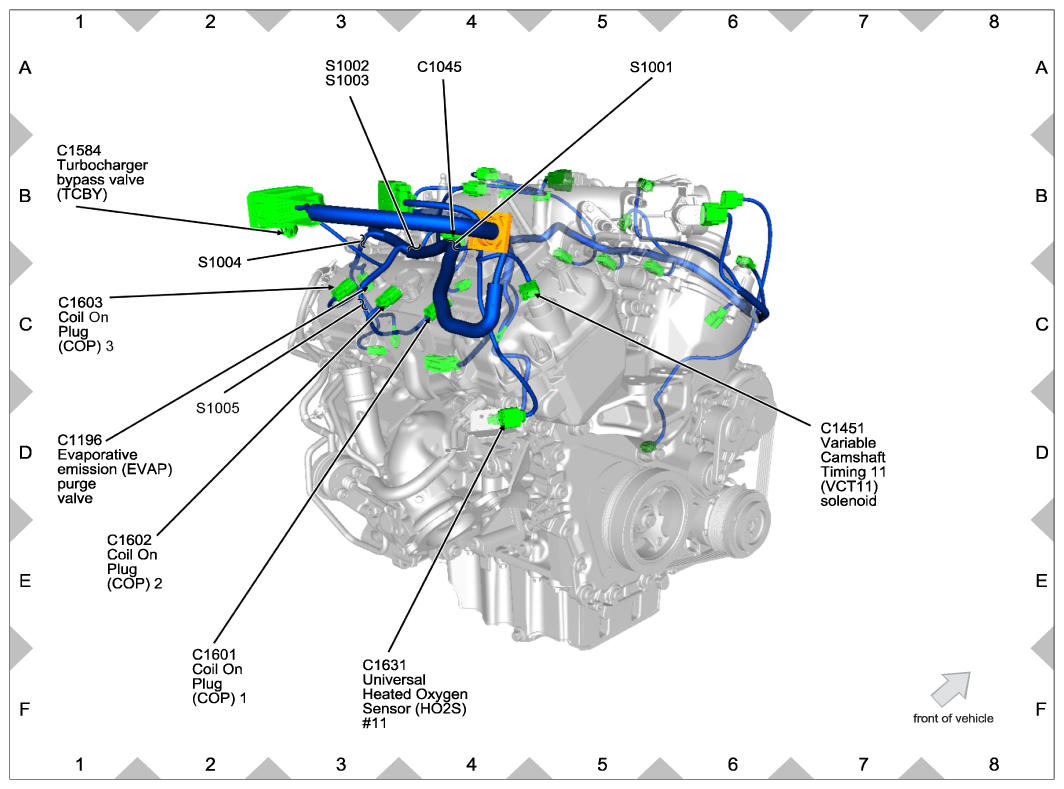

Fig 16: Engine Wiring Harness Connectors Location (6 Of 6) (6 Cyl.)

G09230323

Courtesy of FORD MOTOR CO.

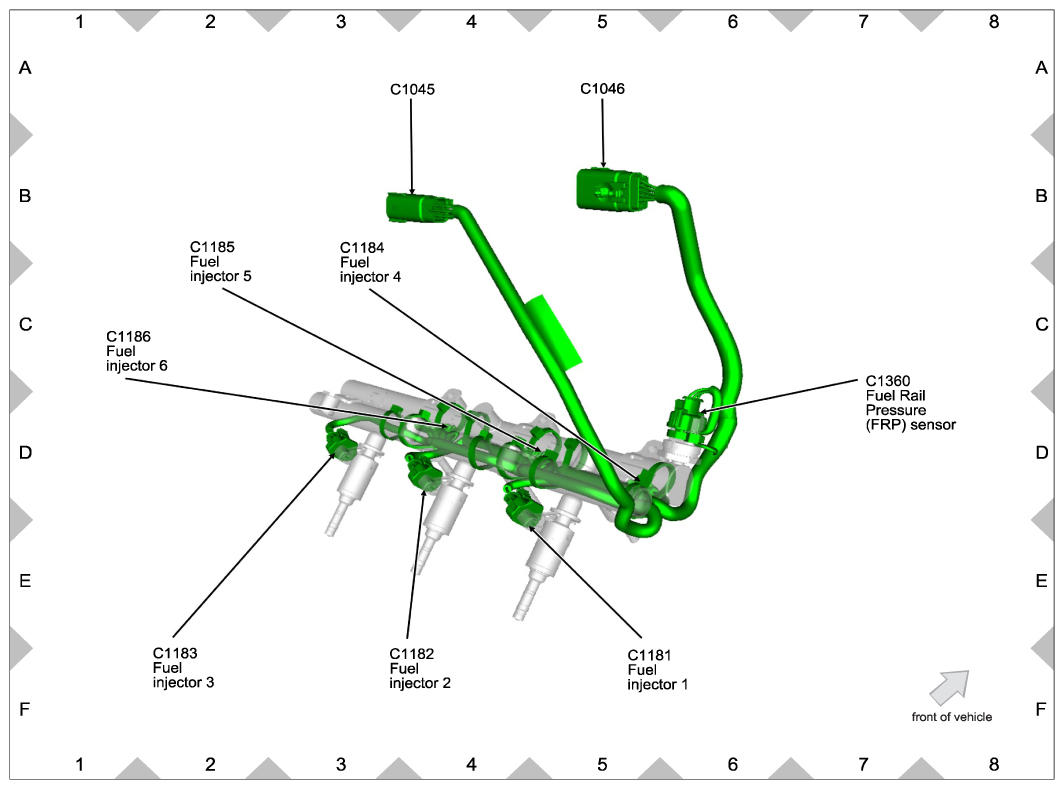

Fig 17: Fuel Injector Wiring Harness Connectors Location (6 Cyl.)

G09230324

Courtesy of FORD MOTOR CO.

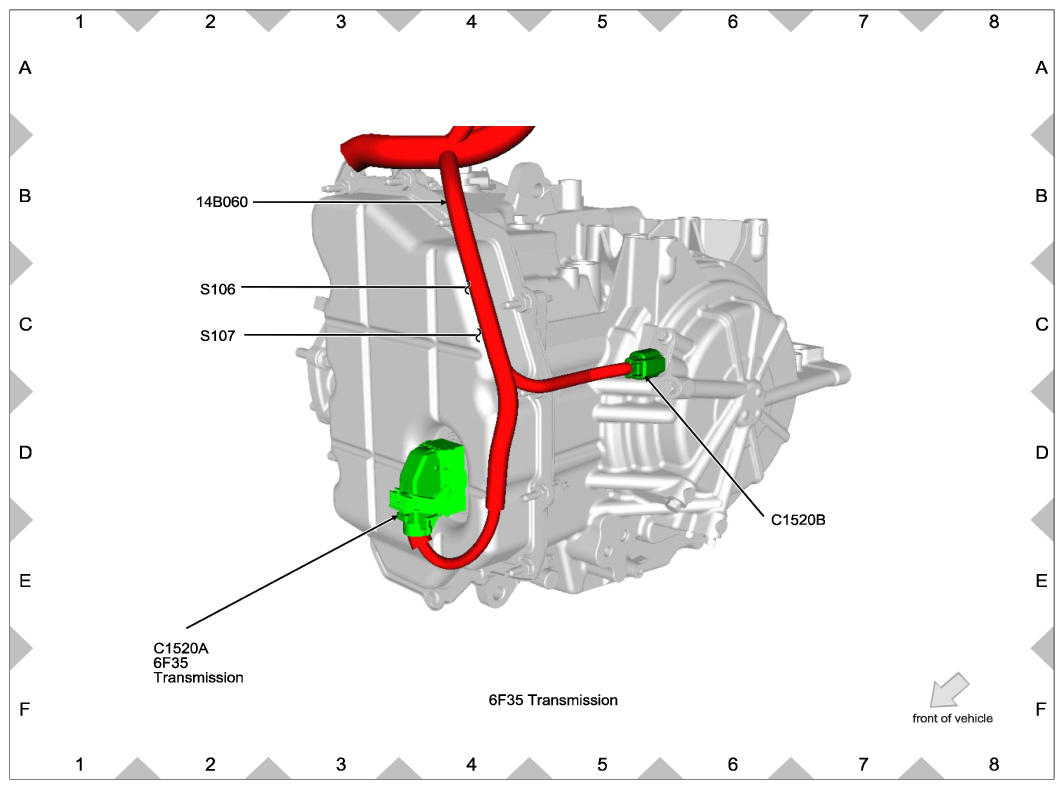

Fig 18: Transmission Wiring Harness Connectors Location (1 Of 2)

G09230325

Courtesy of FORD MOTOR CO.

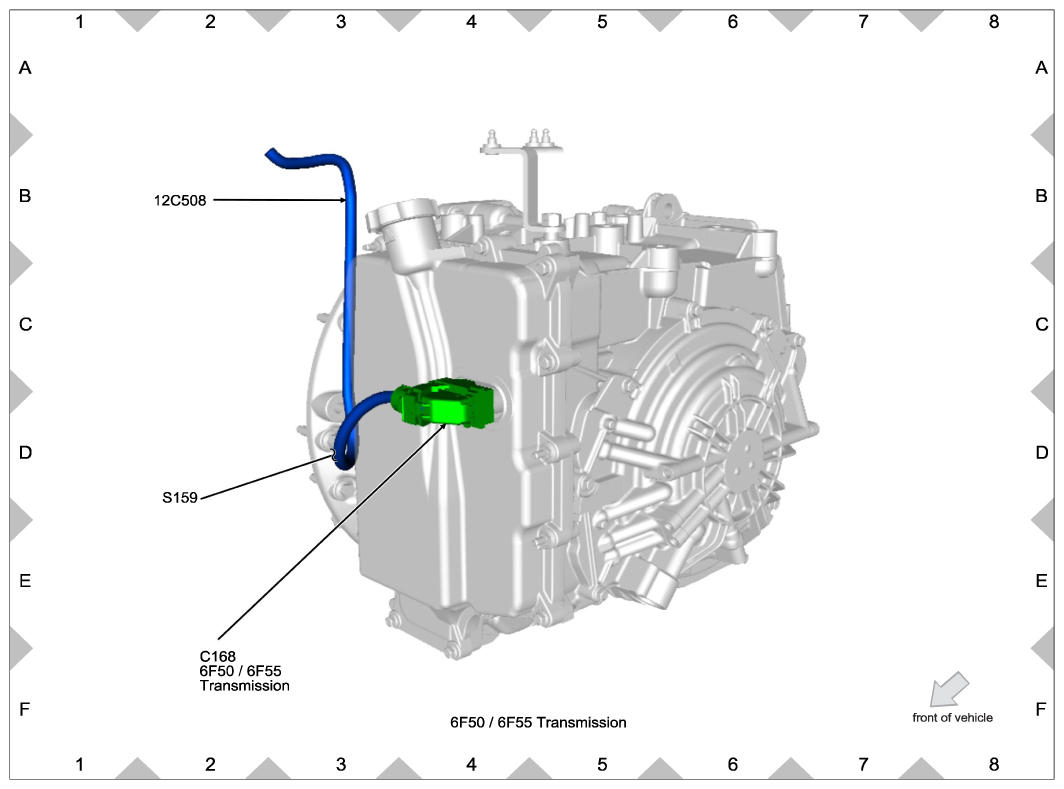

Fig 19: Transmission Wiring Harness Connectors Location (2 Of 2)

G09230326

Courtesy of FORD MOTOR CO.

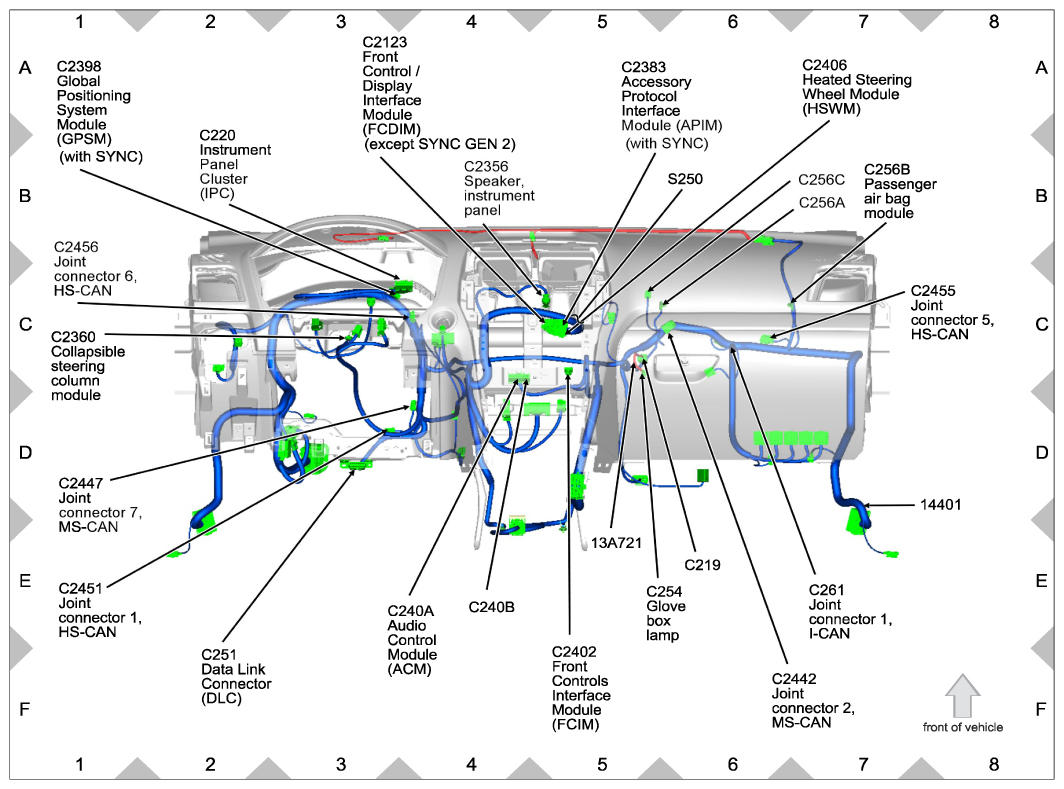

Fig 20: Front Dashboard Wiring Harness Connectors Location (1 Of 3)

G09230327

Courtesy of FORD MOTOR CO.

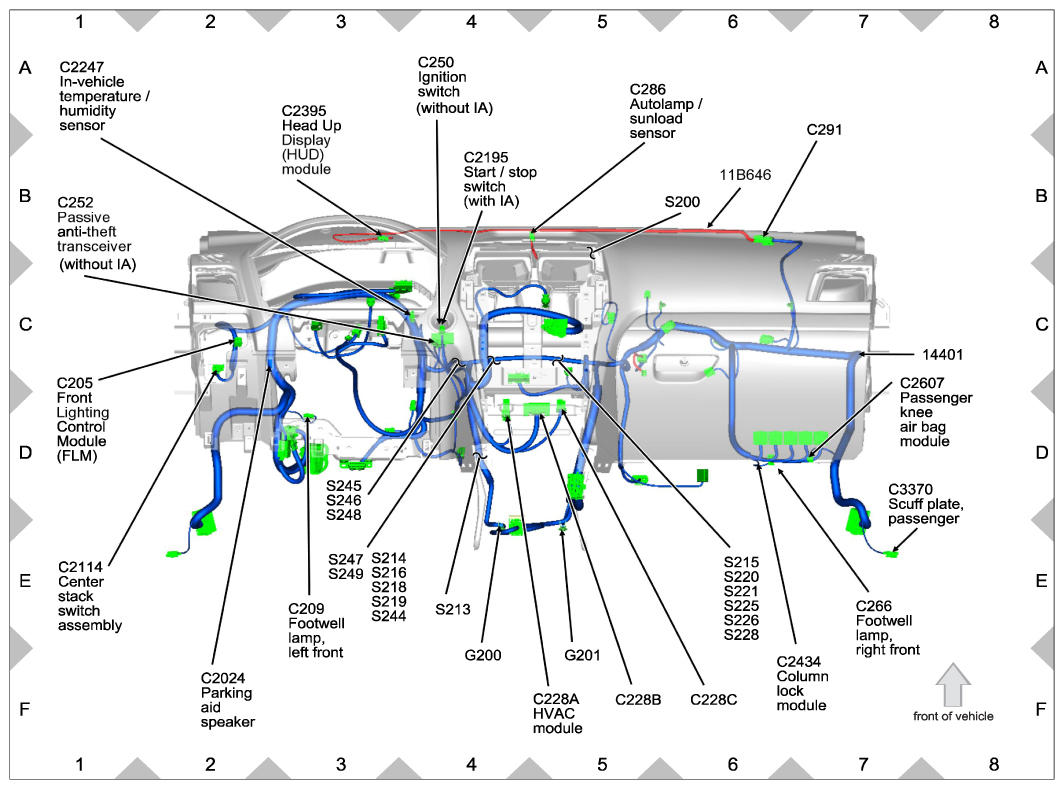

Fig 21: Front Dashboard Wiring Harness Connectors Location (2 Of 3)

G09230328

Courtesy of FORD MOTOR CO.

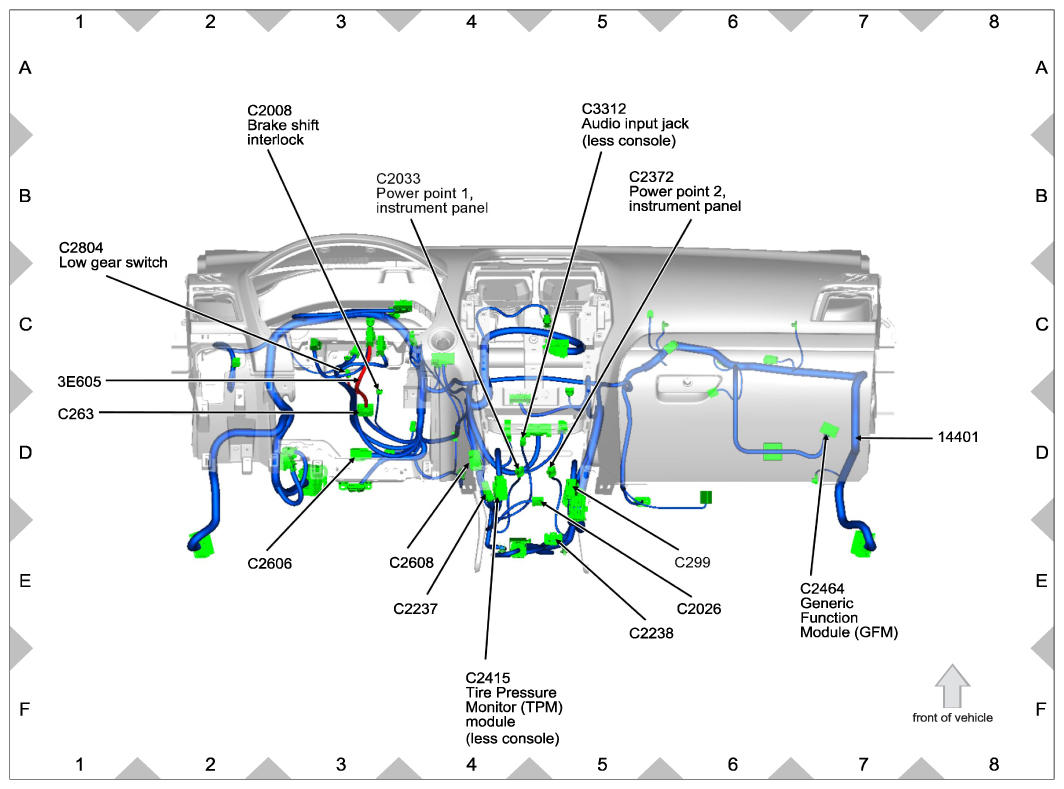

Fig 22: Front Dashboard Wiring Harness Connectors Location (3 Of 3)

G09230329

Courtesy of FORD MOTOR CO.

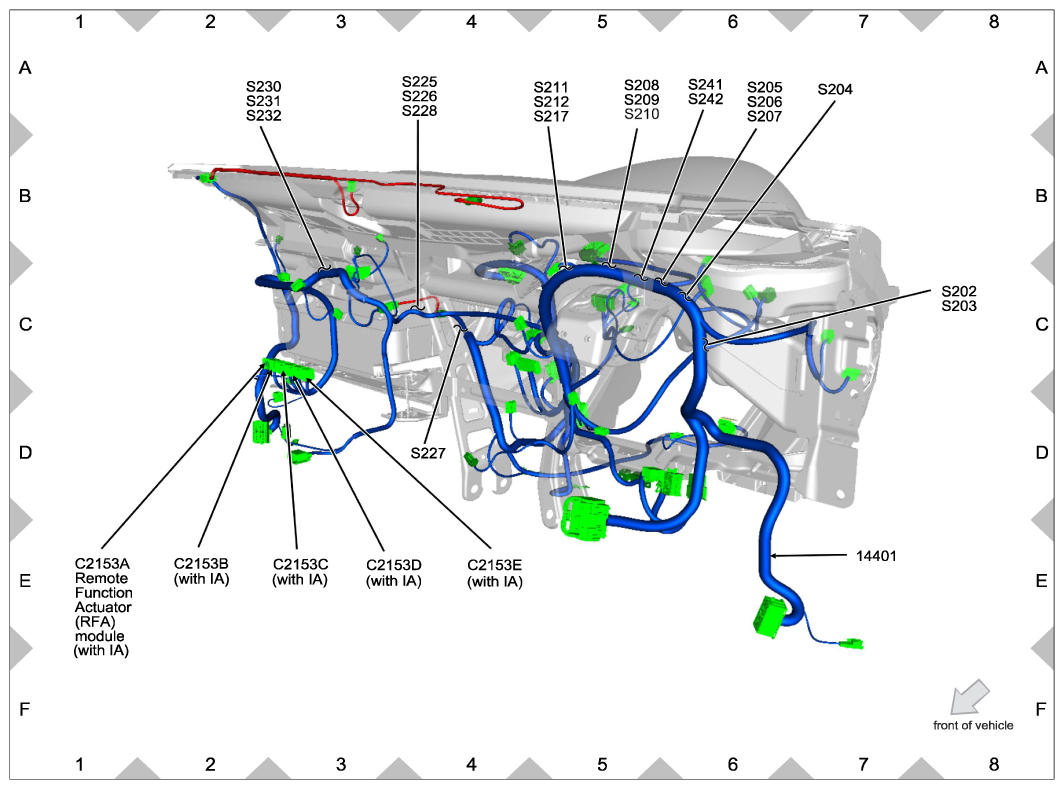

Fig 23: Rear Dashboard Wiring Harness Connectors Location

G09230330

Courtesy of FORD MOTOR CO.

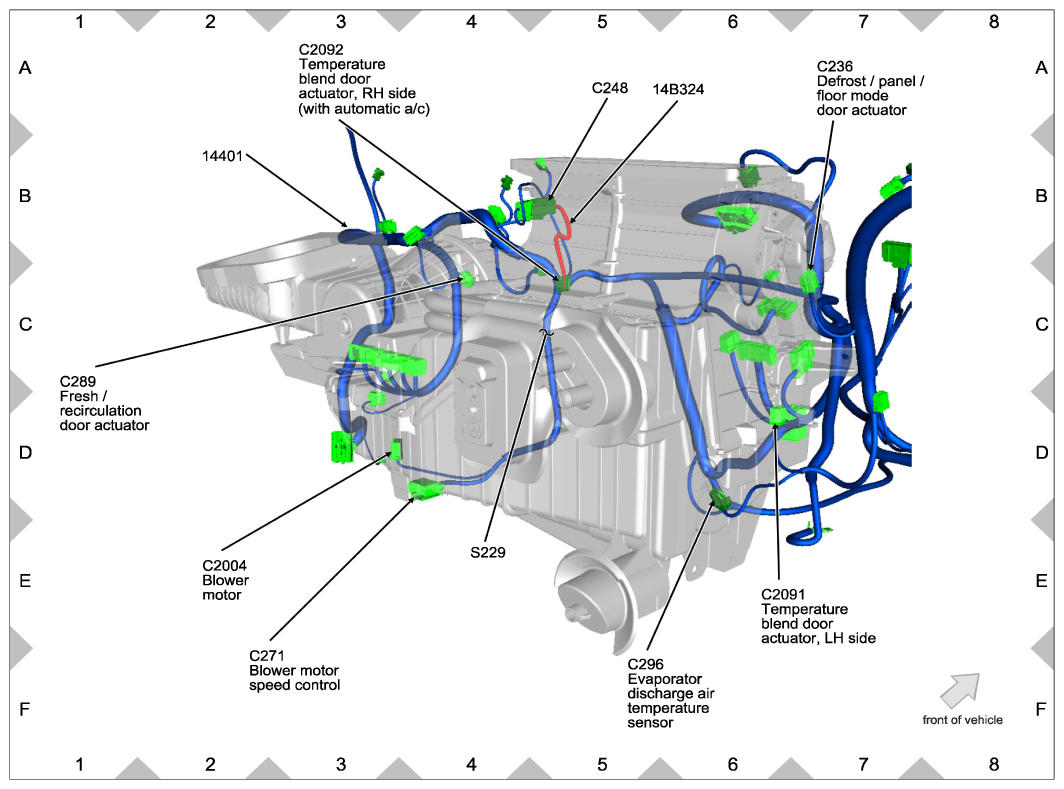

Fig 24: HVAC Wiring Harness Connectors Location (1 Of 2)

G09230331

Courtesy of FORD MOTOR CO.

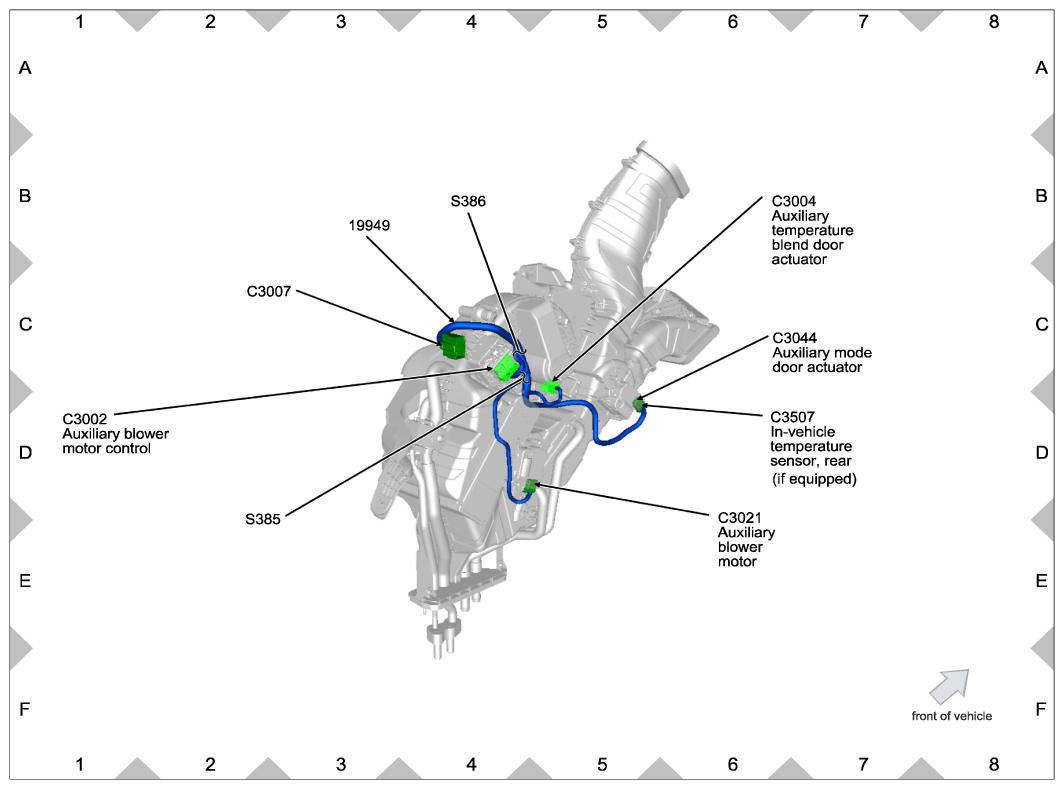

Fig 25: HVAC Wiring Harness Connectors Location (2 Of 2)

G09230332

Courtesy of FORD MOTOR CO.

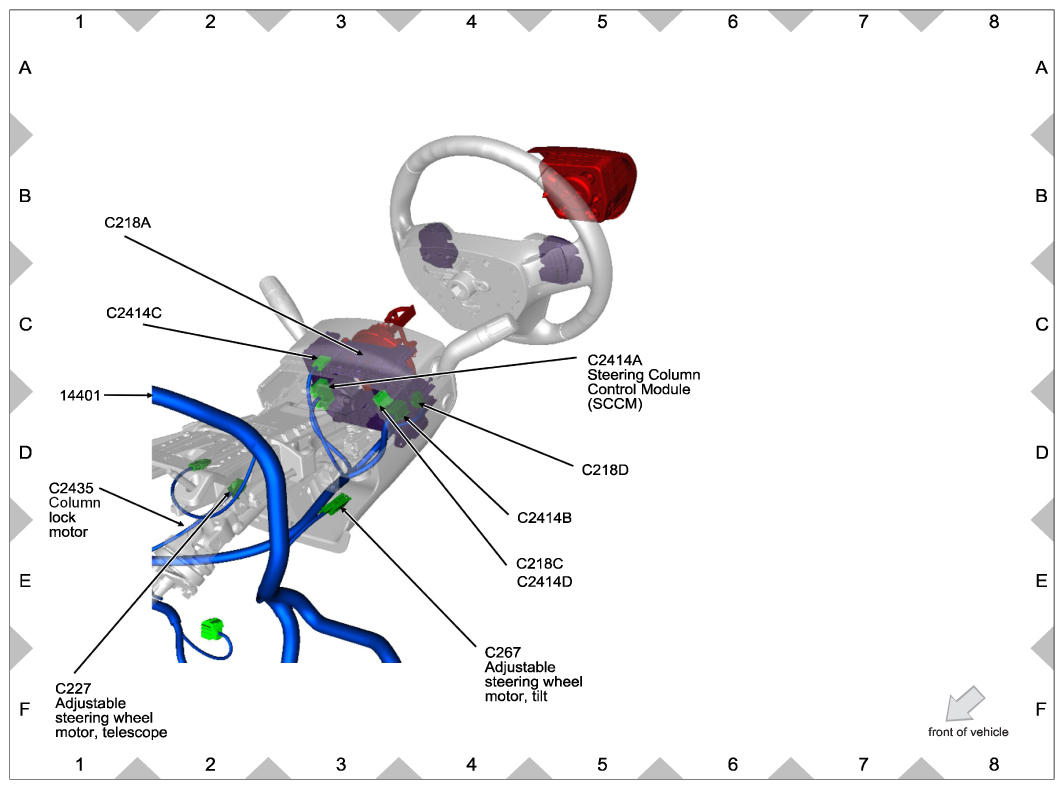

Fig 26: Steering Column Wiring Harness Connectors Location

G09230333

Courtesy of FORD MOTOR CO.

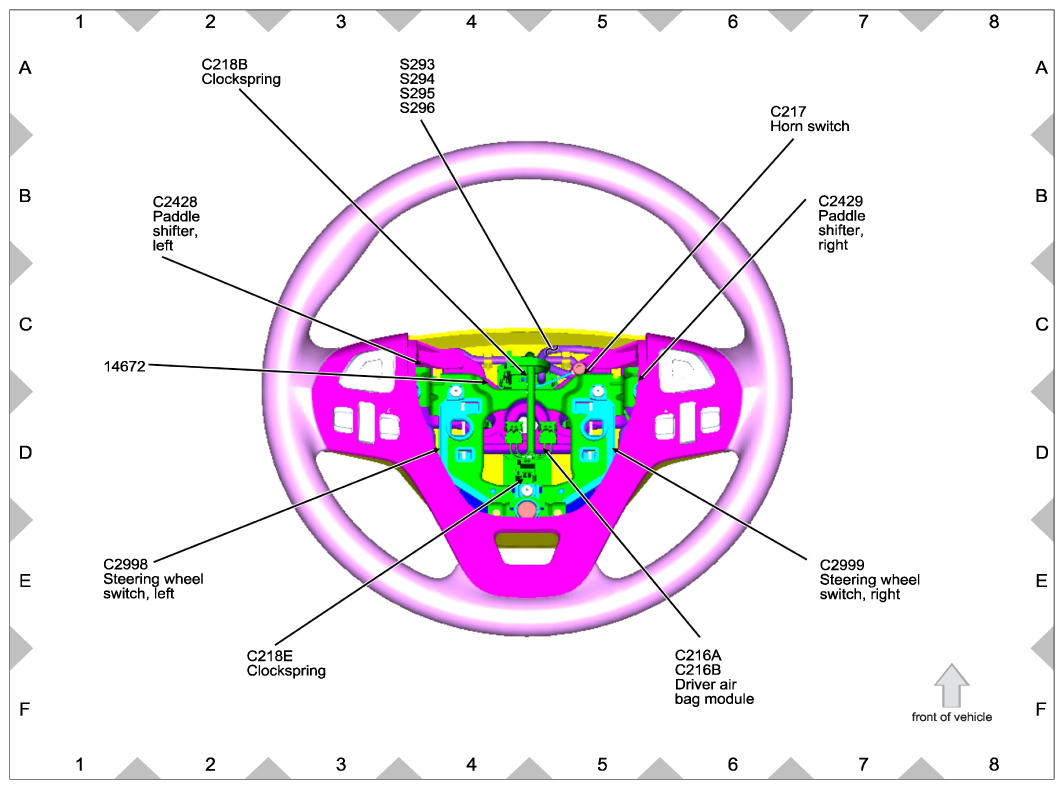

Fig 27: Steering Wheel Wiring Harness Connectors Location

G09230334

Courtesy of FORD MOTOR CO.

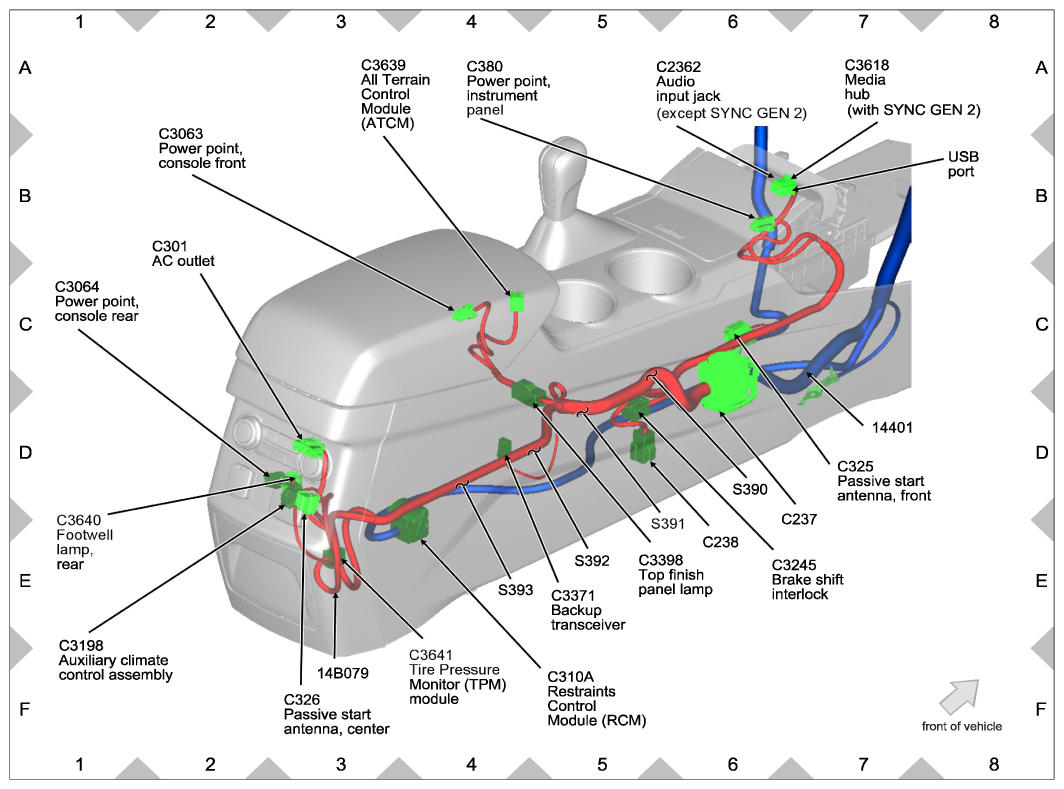

Fig 28: Center Console Wiring Harness Connectors Location (1 Of 2)

G09230335

Courtesy of FORD MOTOR CO.

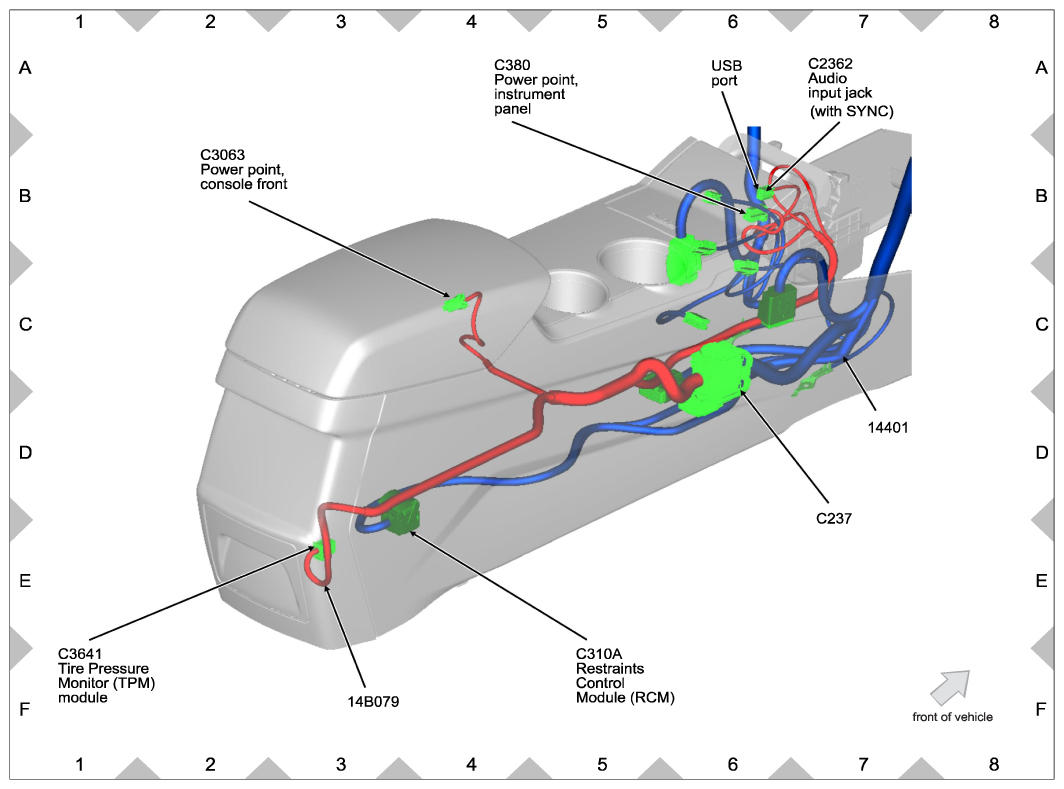

Fig 29: Center Console Wiring Harness Connectors Location (2 Of 2)

G09230336

Courtesy of FORD MOTOR CO.

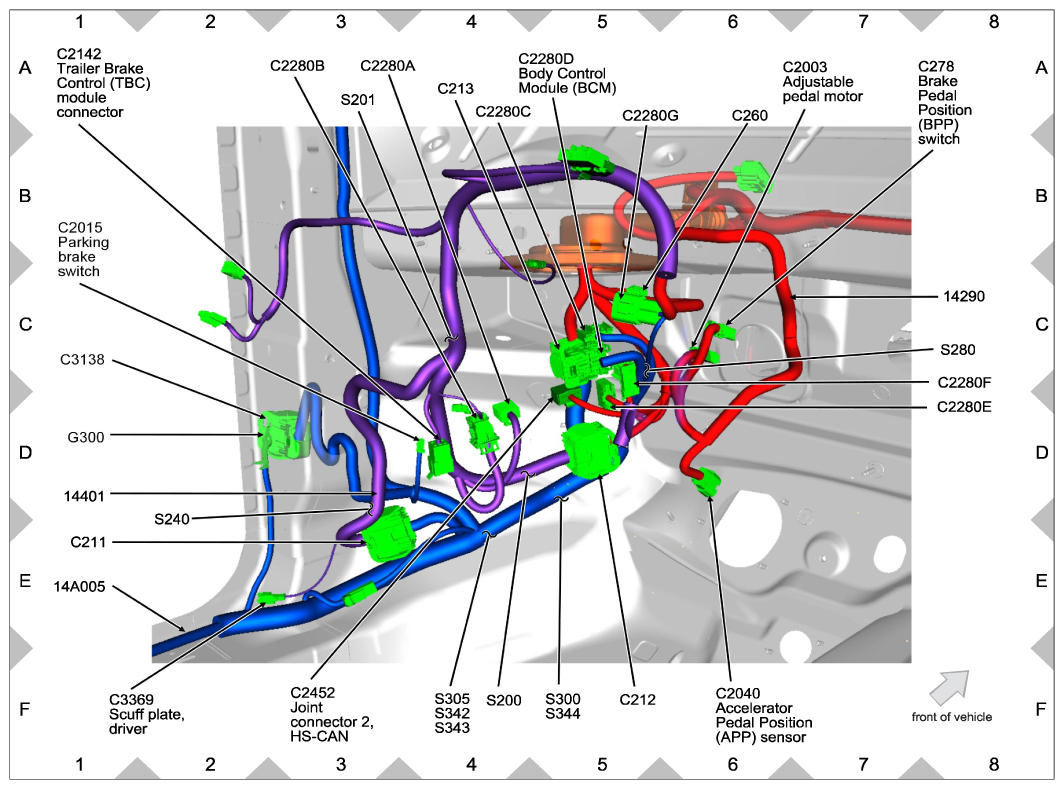

Fig 30: Body Control Module Wiring Harness Connectors Location

G09230337

Courtesy of FORD MOTOR CO.

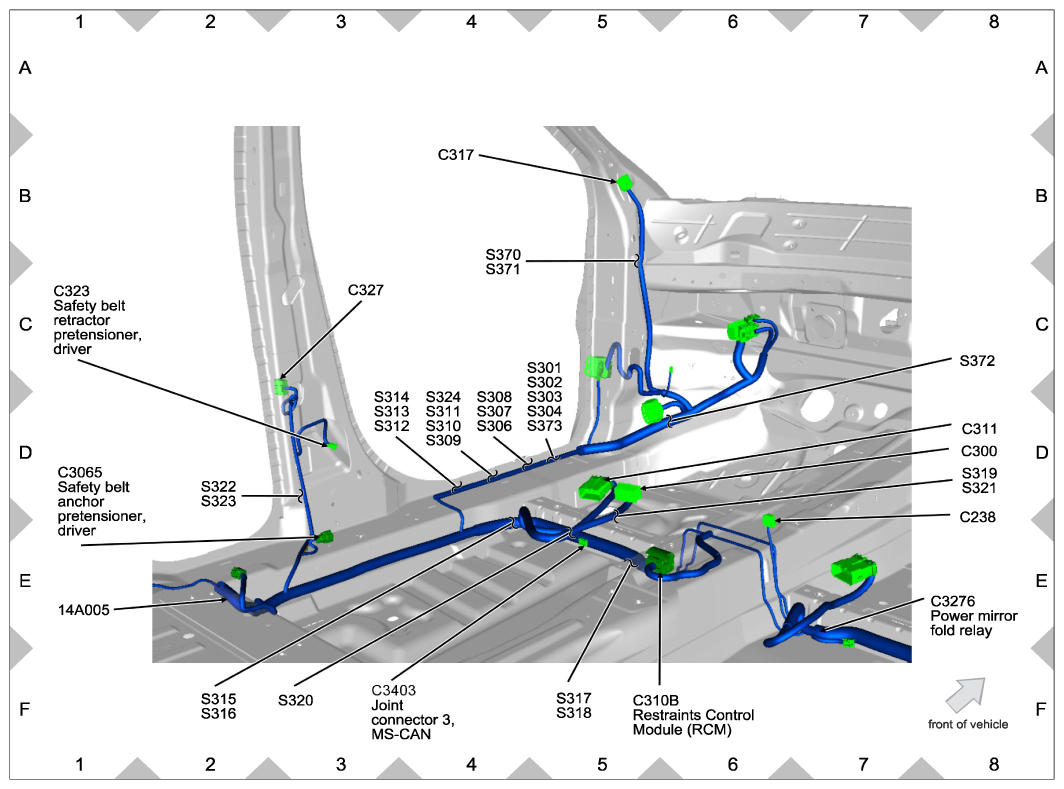

Fig 31: LH Front Compartment Wiring Harness Connectors Location (1 Of 2)

G09230338

Courtesy of FORD MOTOR CO.

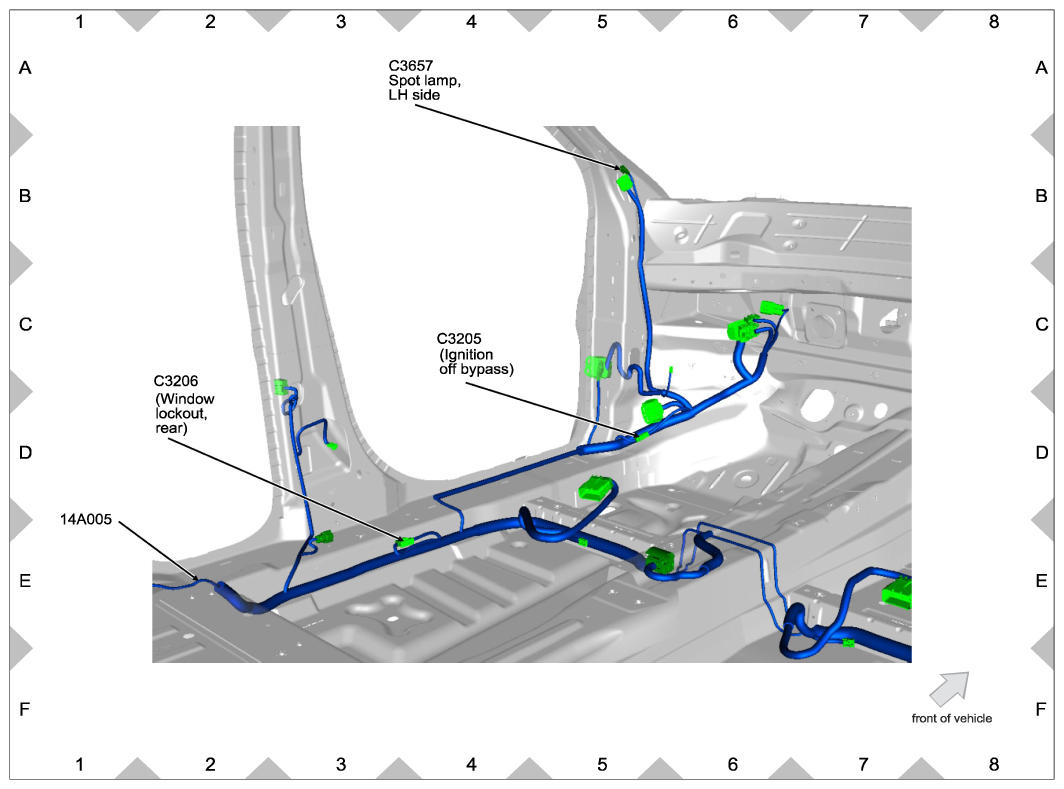

Fig 32: LH Front Compartment Wiring Harness Connectors Location (2 Of 2)

G09230339

Courtesy of FORD MOTOR CO.

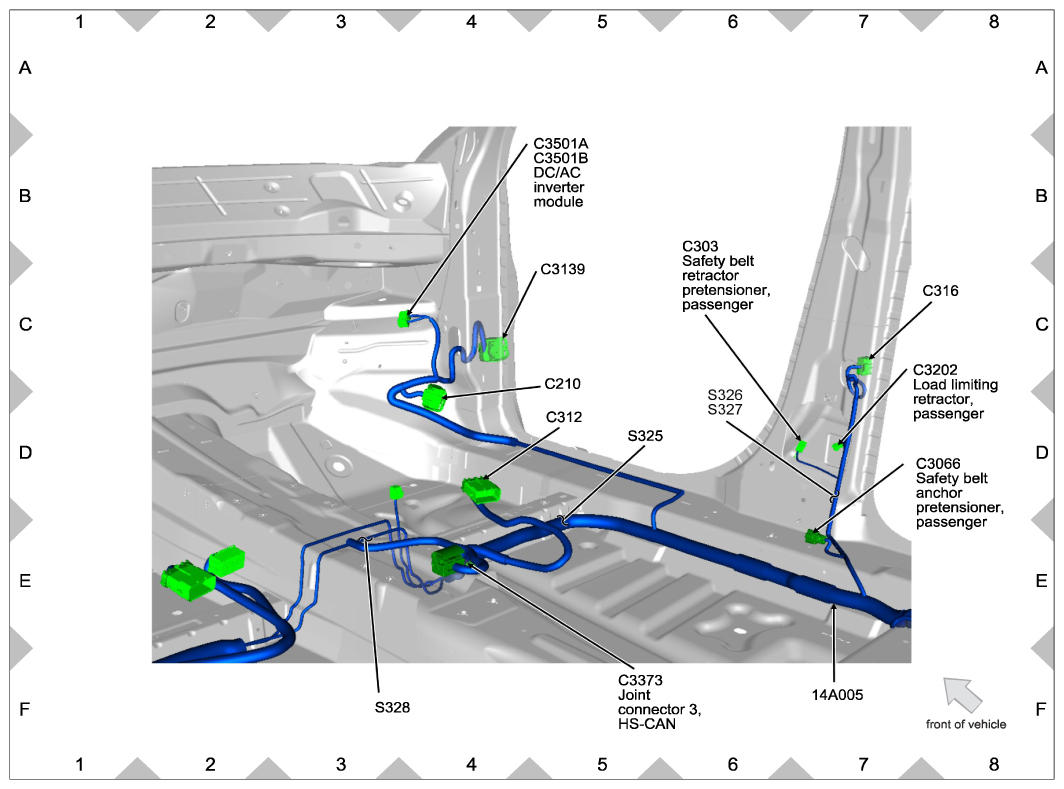

Fig 33: RH Front Compartment Wiring Harness Connectors Location (1 Of 2)

G09230340

Courtesy of FORD MOTOR CO.

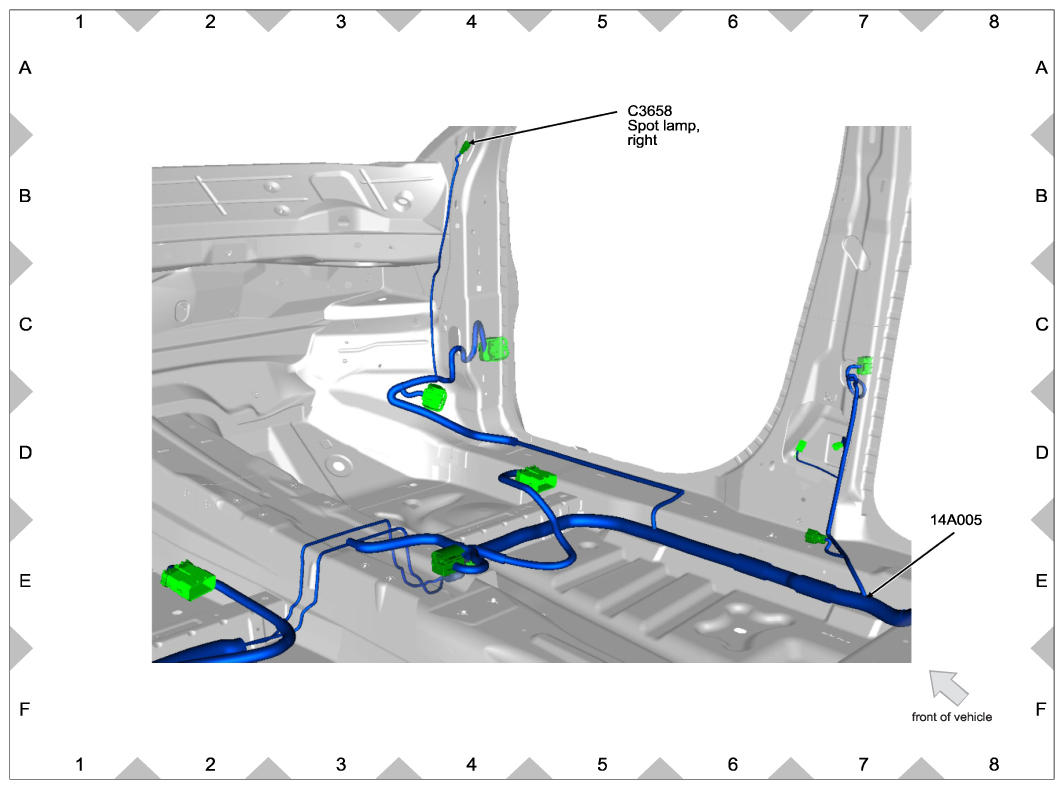

Fig 34: RH Front Compartment Wiring Harness Connectors Location (2 Of 2)

G09230341

Courtesy of FORD MOTOR CO.

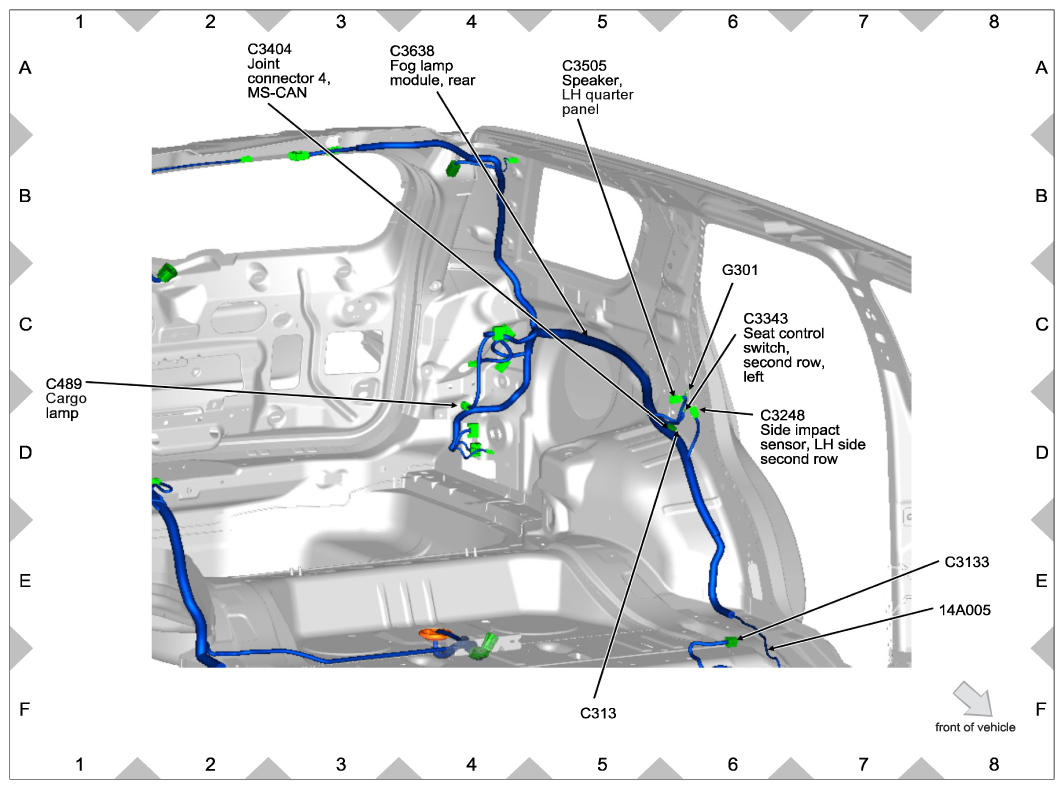

Fig 35: LH Rear Compartment Wiring Harness Connectors Location (1 Of 3)

G09230342

Courtesy of FORD MOTOR CO.

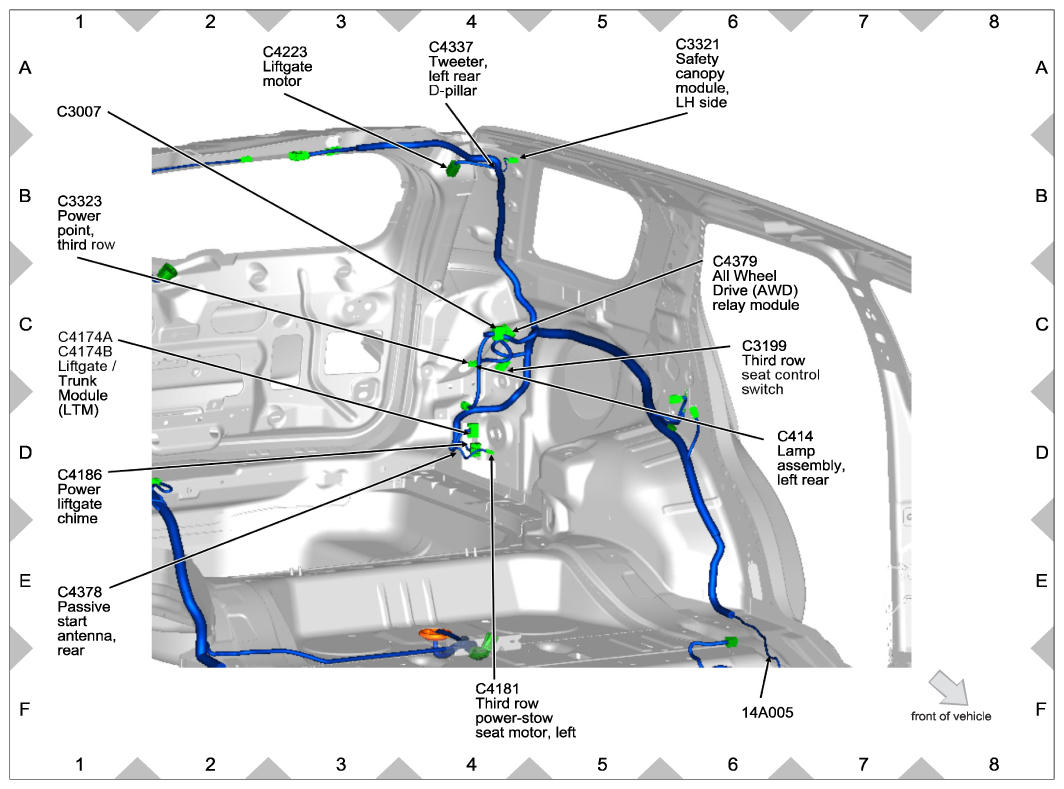

Fig 36: LH Rear Compartment Wiring Harness Connectors Location (2 Of 3)

G09230343

Courtesy of FORD MOTOR CO.

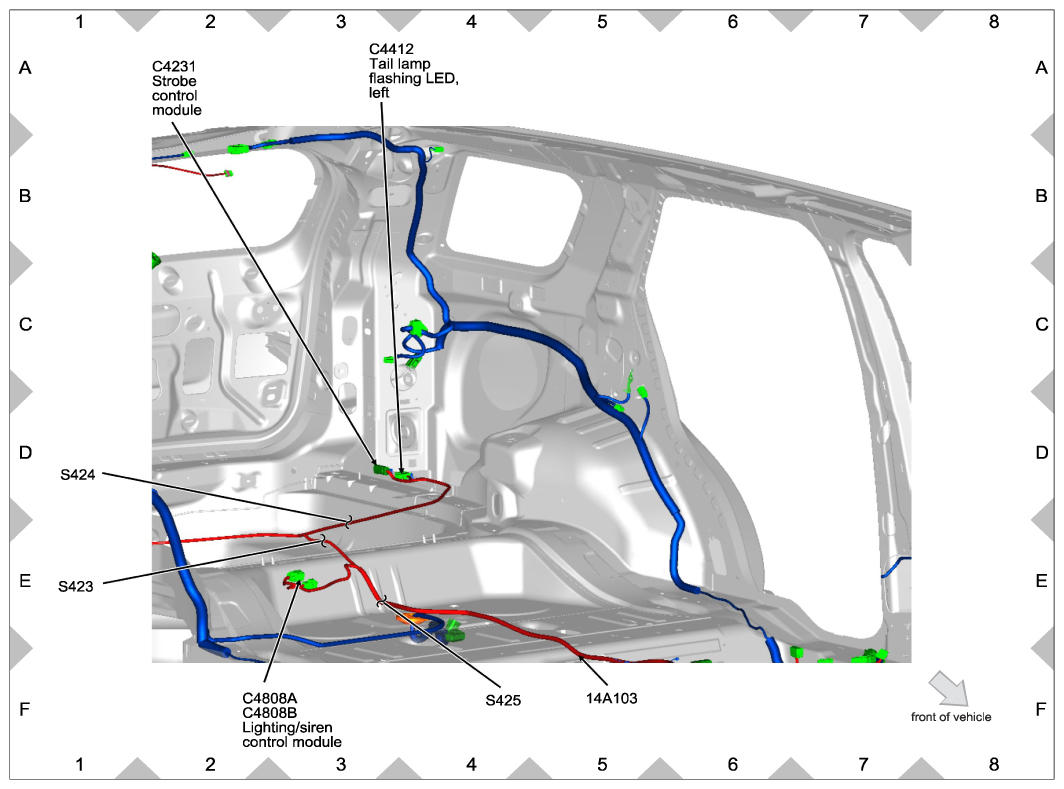

Fig 37: LH Rear Compartment Wiring Harness Connectors Location (3 Of 3)

G09230344

Courtesy of FORD MOTOR CO.

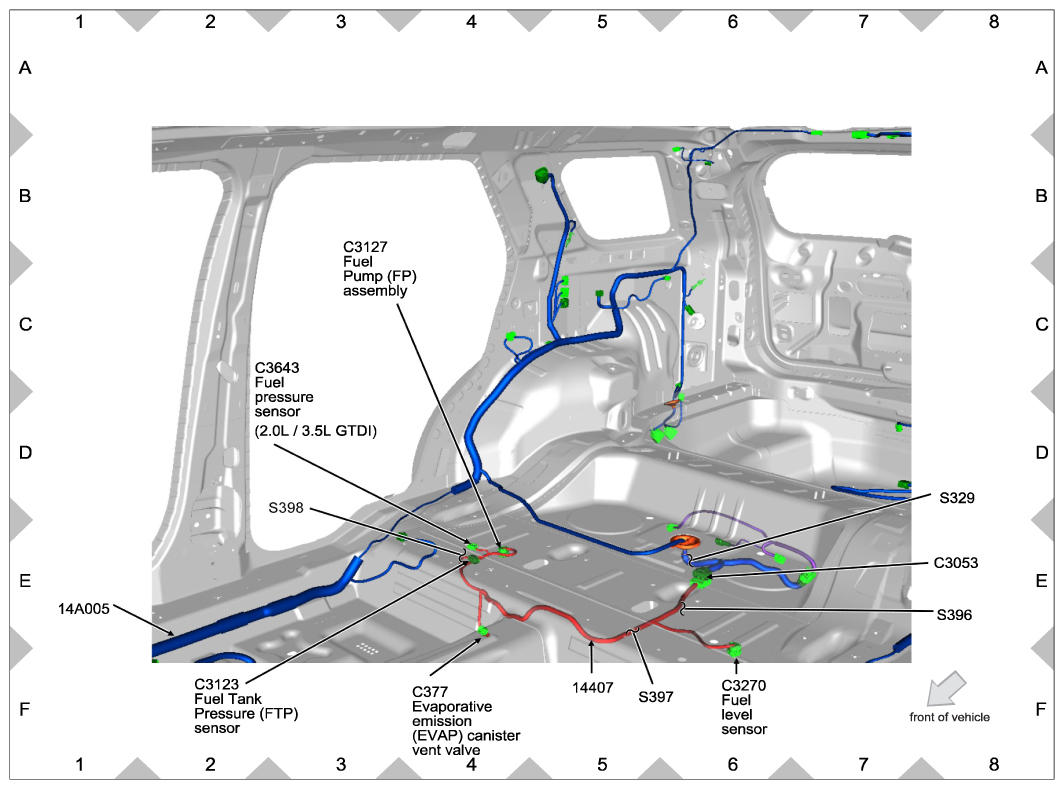

Fig 38: RH Rear Compartment Wiring Harness Connectors Location (1 Of 4)

G09230345

Courtesy of FORD MOTOR CO.

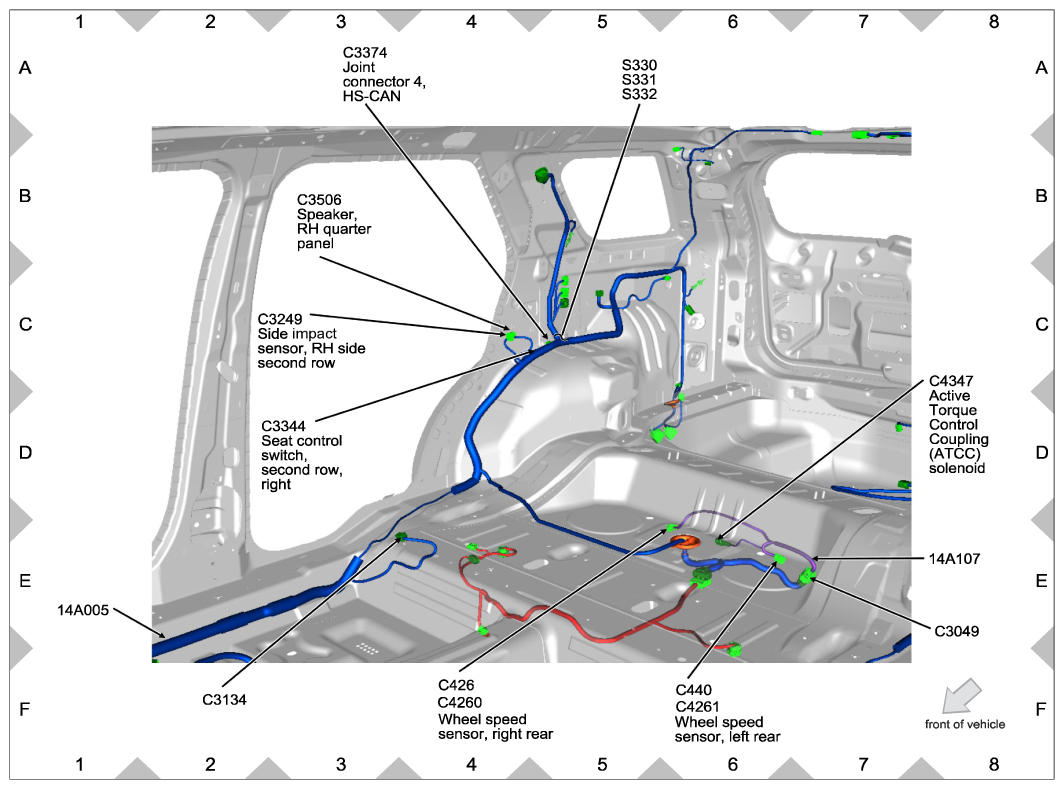

Fig 39: RH Rear Compartment Wiring Harness Connectors Location (2 Of 4)

G09230346

Courtesy of FORD MOTOR CO.

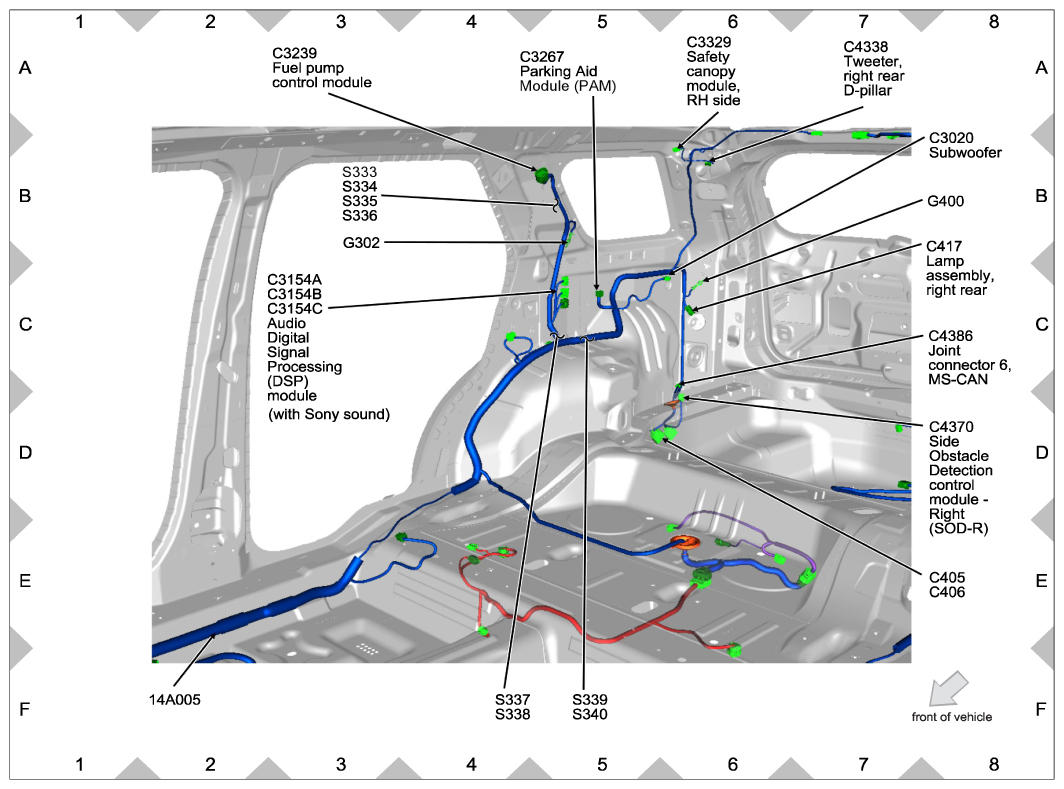

Fig 40: RH Rear Compartment Wiring Harness Connectors Location (3 Of 4)

G09230347

Courtesy of FORD MOTOR CO.

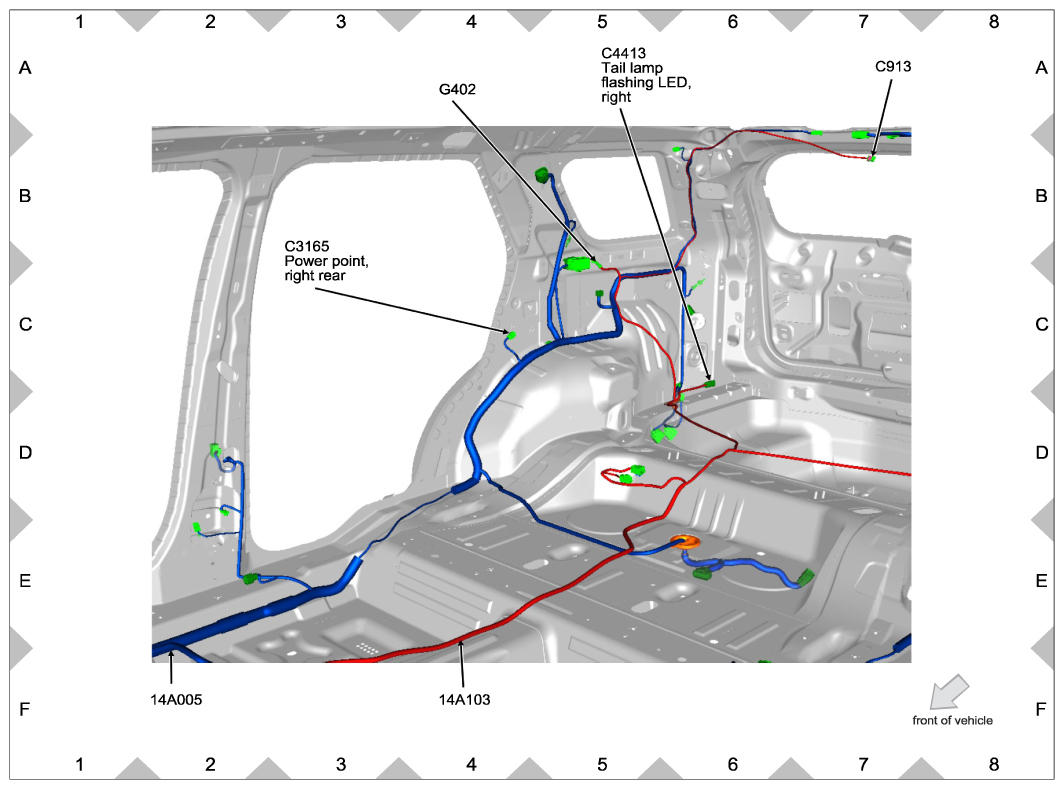

Fig 41: RH Rear Compartment Wiring Harness Connectors Location (4 Of 4)

G09230348

Courtesy of FORD MOTOR CO.

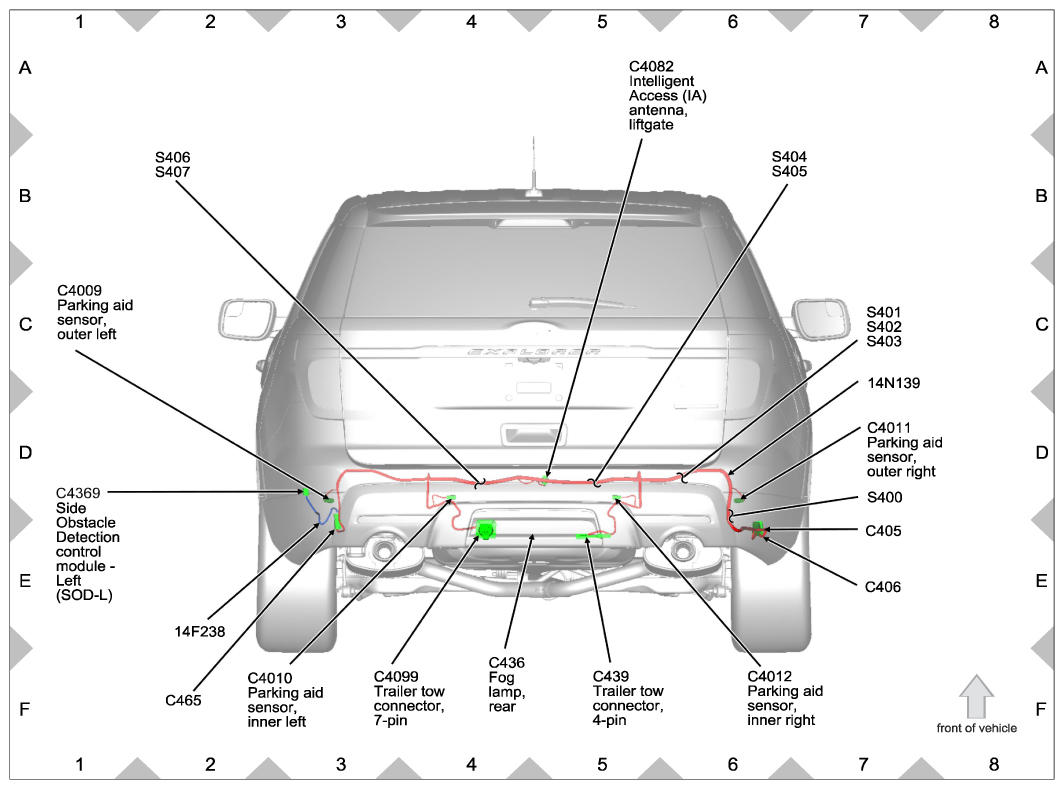

Fig 42: Rear Bumper Wiring Harness Connectors Location

G09230349

Courtesy of FORD MOTOR CO.

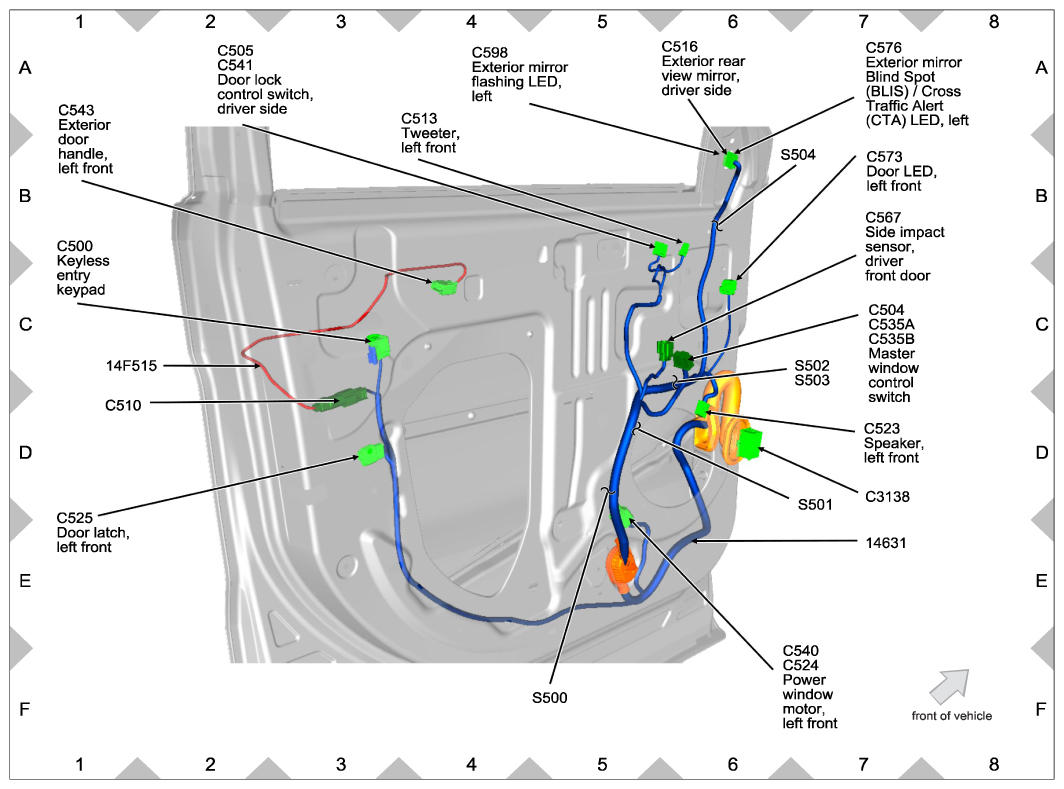

Fig 43: LH Front Door Wiring Harness Connectors Location

G09230350

Courtesy of FORD MOTOR CO.

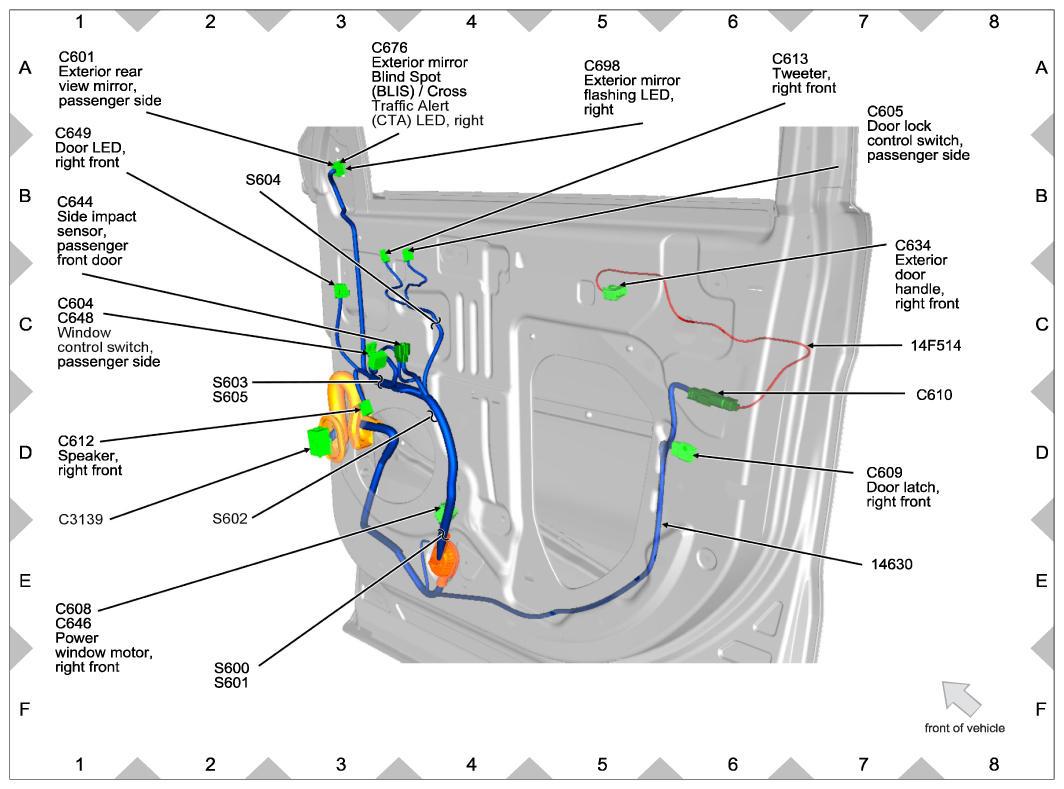

Fig 44: RH Front Door Wiring Harness Connectors Location

G09230351

Courtesy of FORD MOTOR CO.

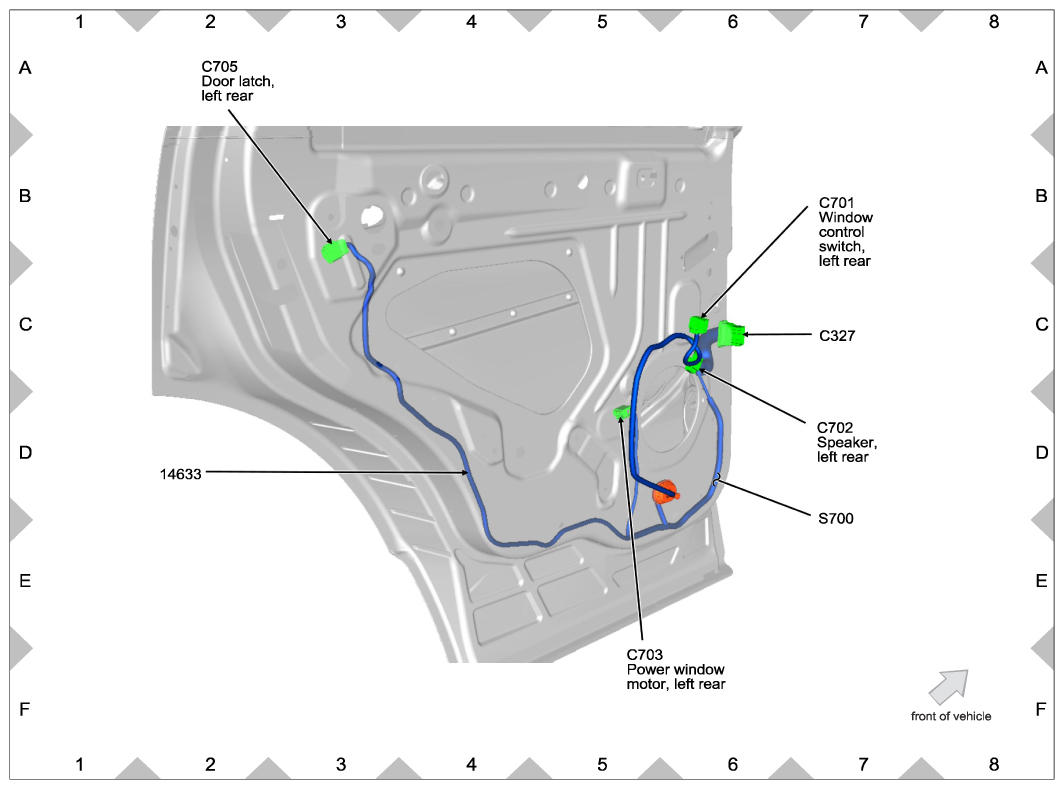

Fig 45: LH Rear Door Wiring Harness Connectors Location

G09230352

Courtesy of FORD MOTOR CO.

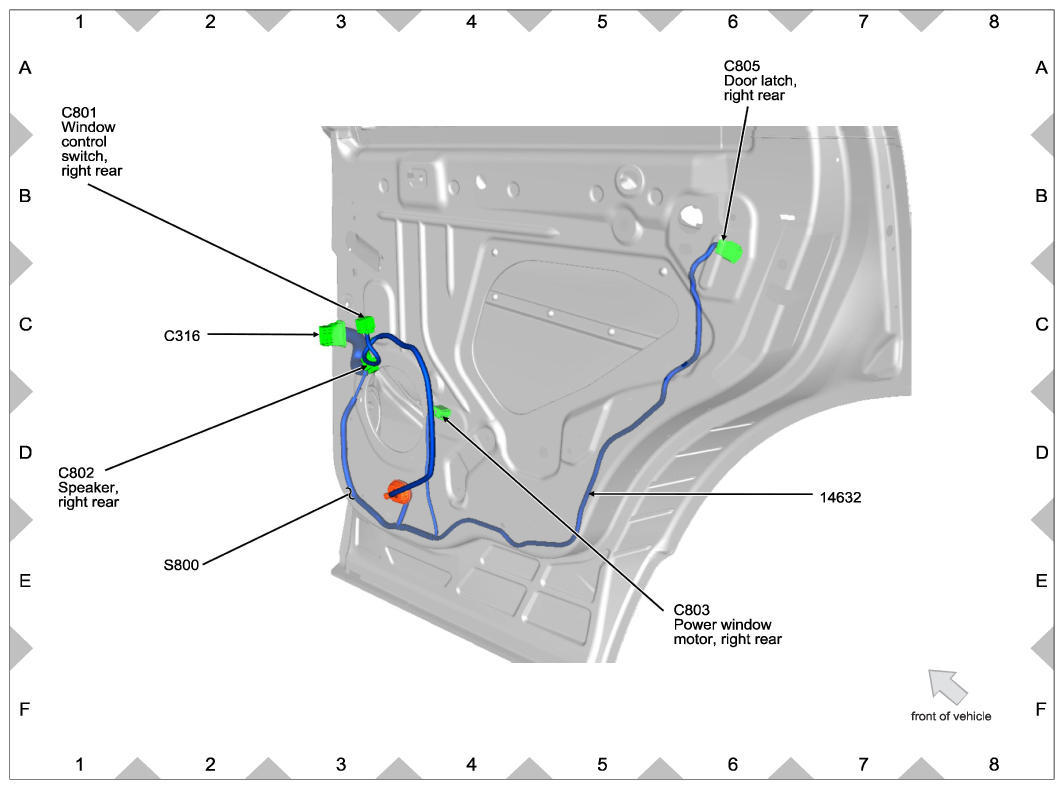

Fig 46: RH Rear Door Wiring Harness Connectors Location

G09230353

Courtesy of FORD MOTOR CO.

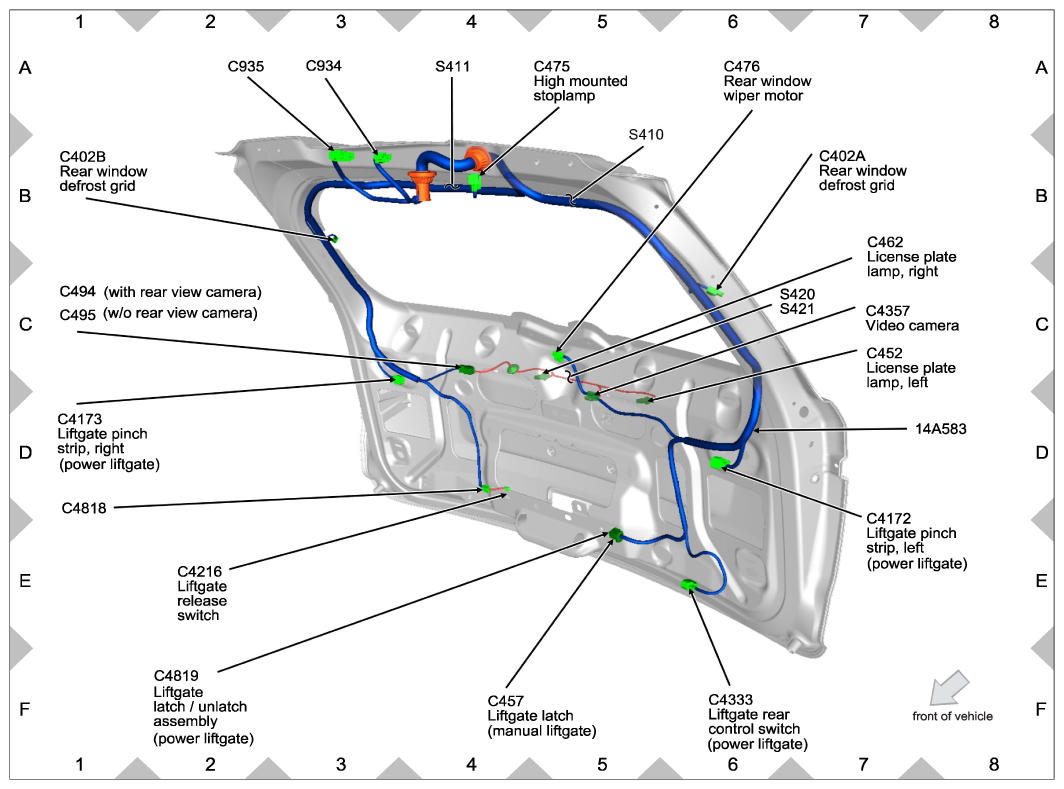

Fig 47: Liftgate Wiring Harness Connectors Location (1 Of 2)

G09230354

Courtesy of FORD MOTOR CO.

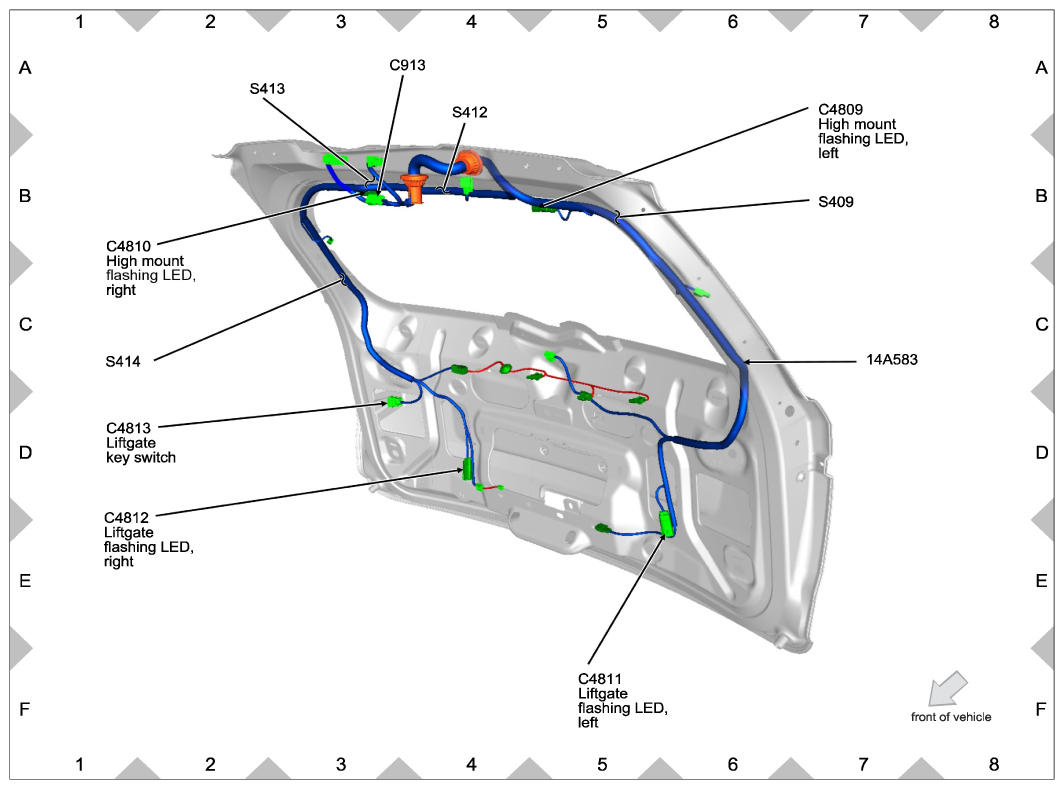

Fig 48: Liftgate Wiring Harness Connectors Location (2 Of 2)

G09230355

Courtesy of FORD MOTOR CO.

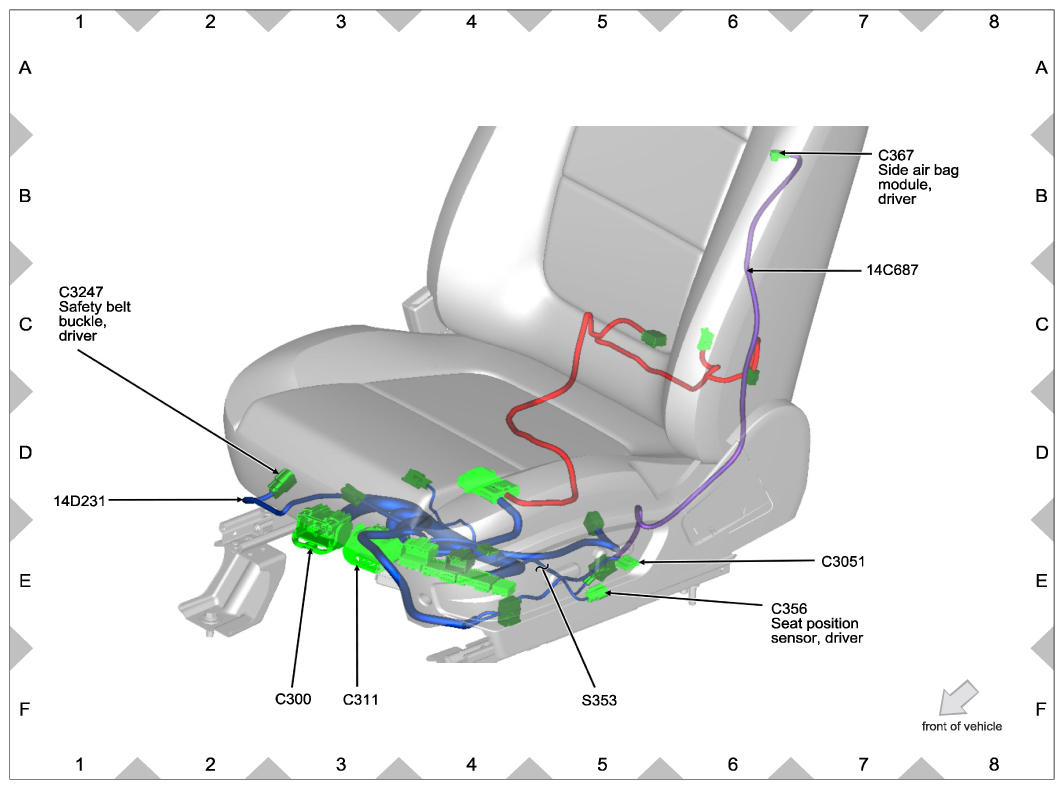

Fig 49: DriverSeat Wiring Harness Connectors Location (1 Of 2)

G09230356

Courtesy of FORD MOTOR CO.

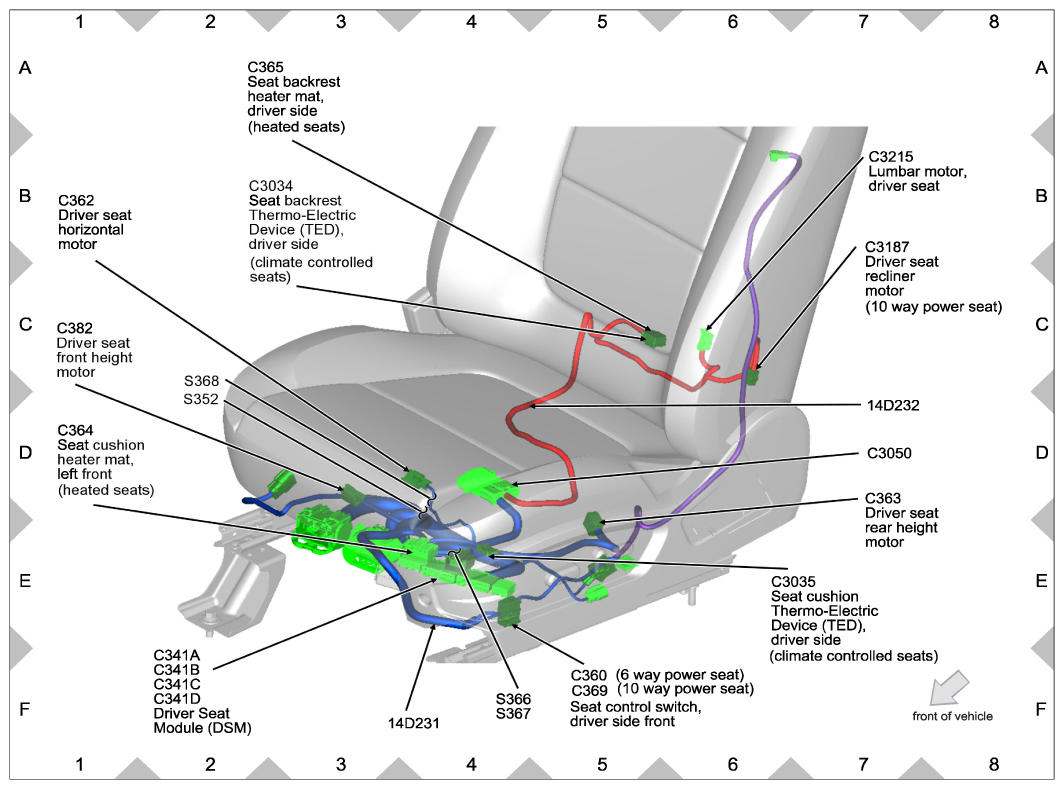

Fig 50: DriverSeat Wiring Harness Connectors Location (2 Of 2)

G09230357

Courtesy of FORD MOTOR CO.

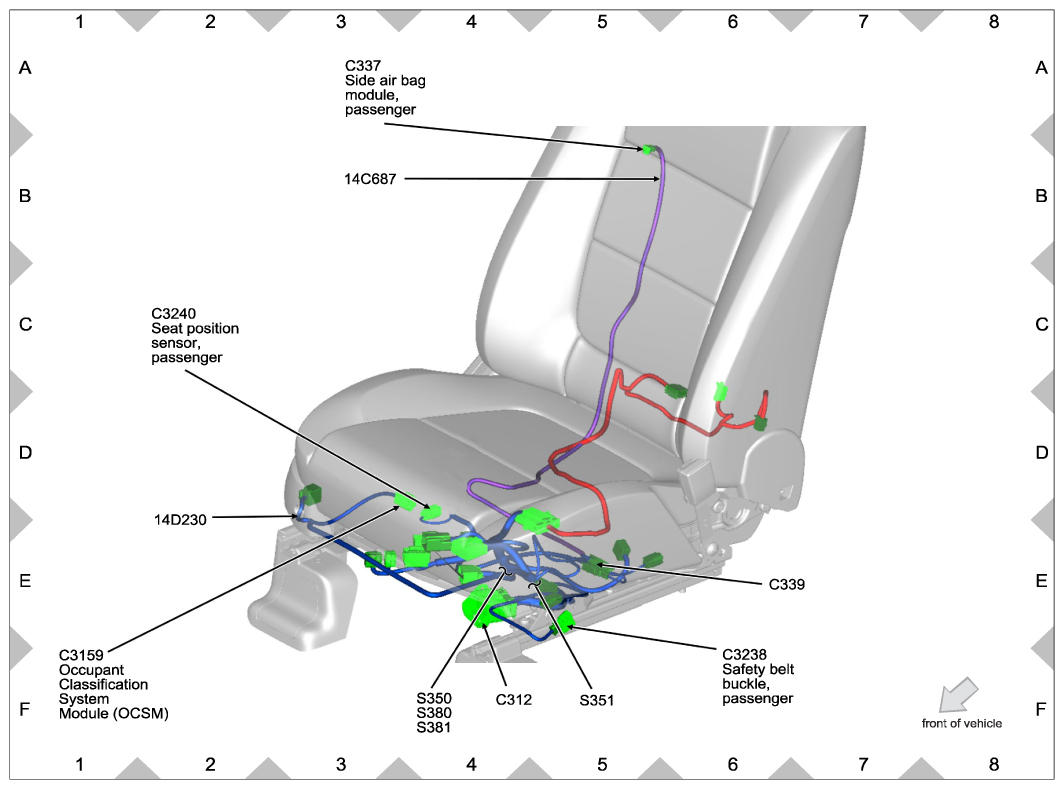

Fig 51: Passenger Seat - Front Wiring Harness Connectors Location (1 Of 2)

G09230358

Courtesy of FORD MOTOR CO.

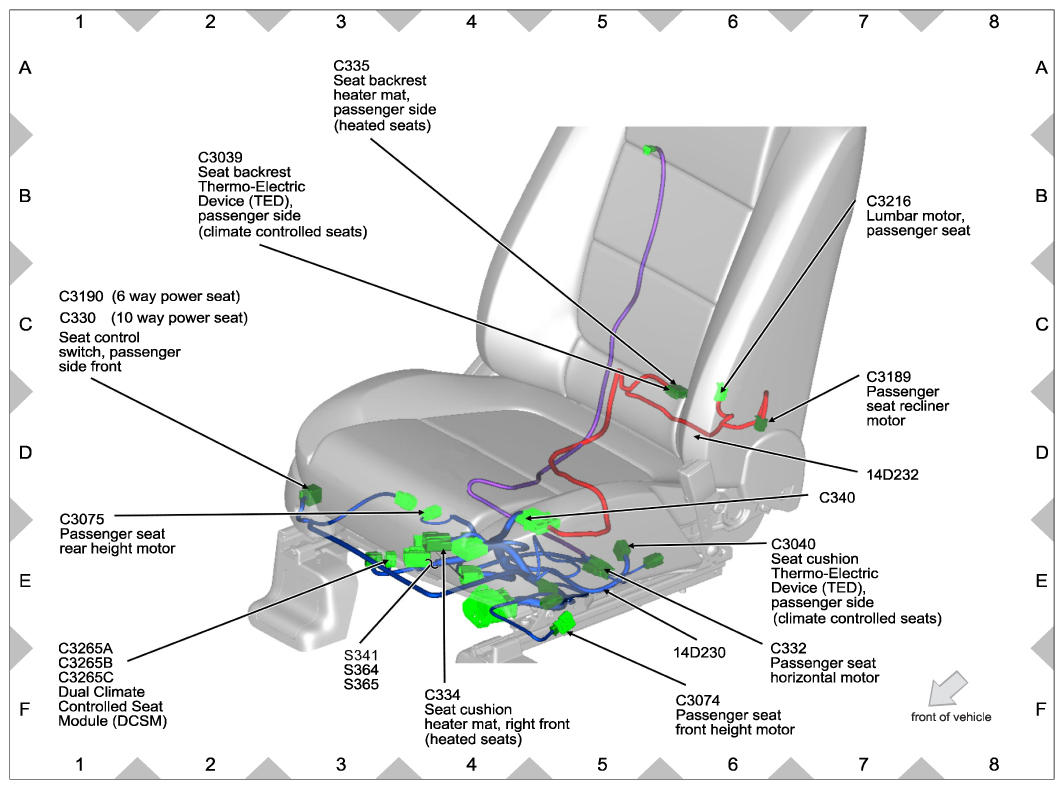

Fig 52: Passenger Seat - Front Wiring Harness Connectors Location (2 Of 2)

G09230359

Courtesy of FORD MOTOR CO.

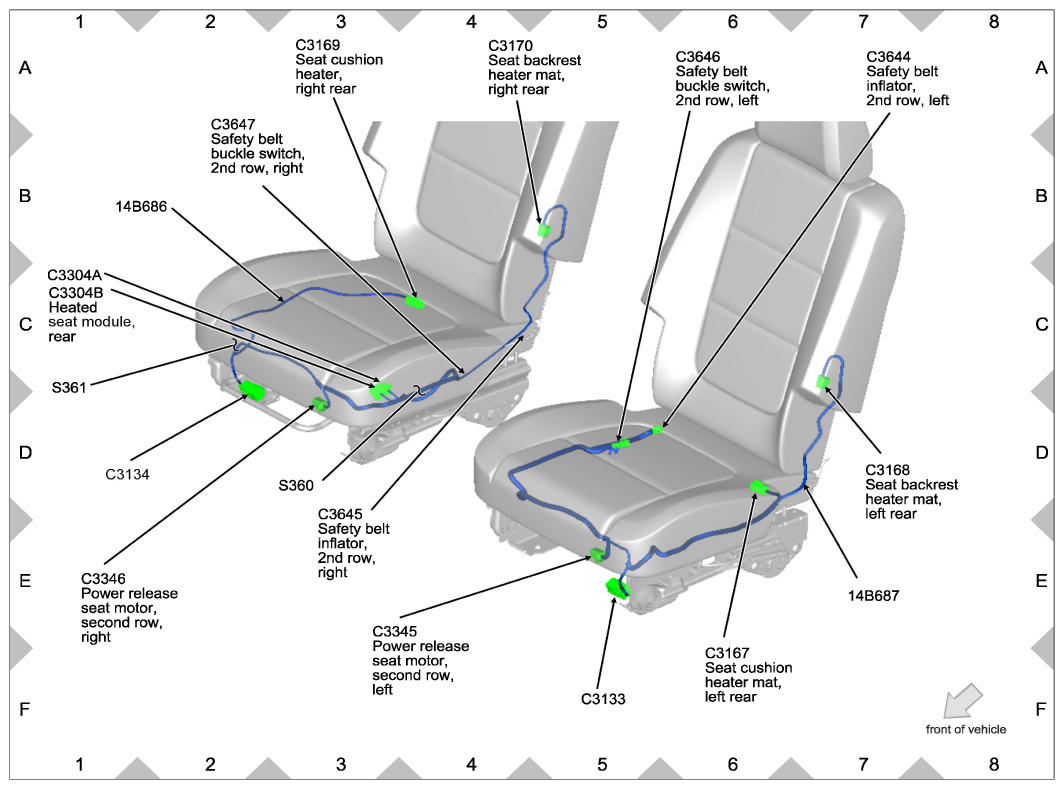

Fig 53: Seat - Second Row Wiring Harness Connectors Location

G09230360

Courtesy of FORD MOTOR CO.

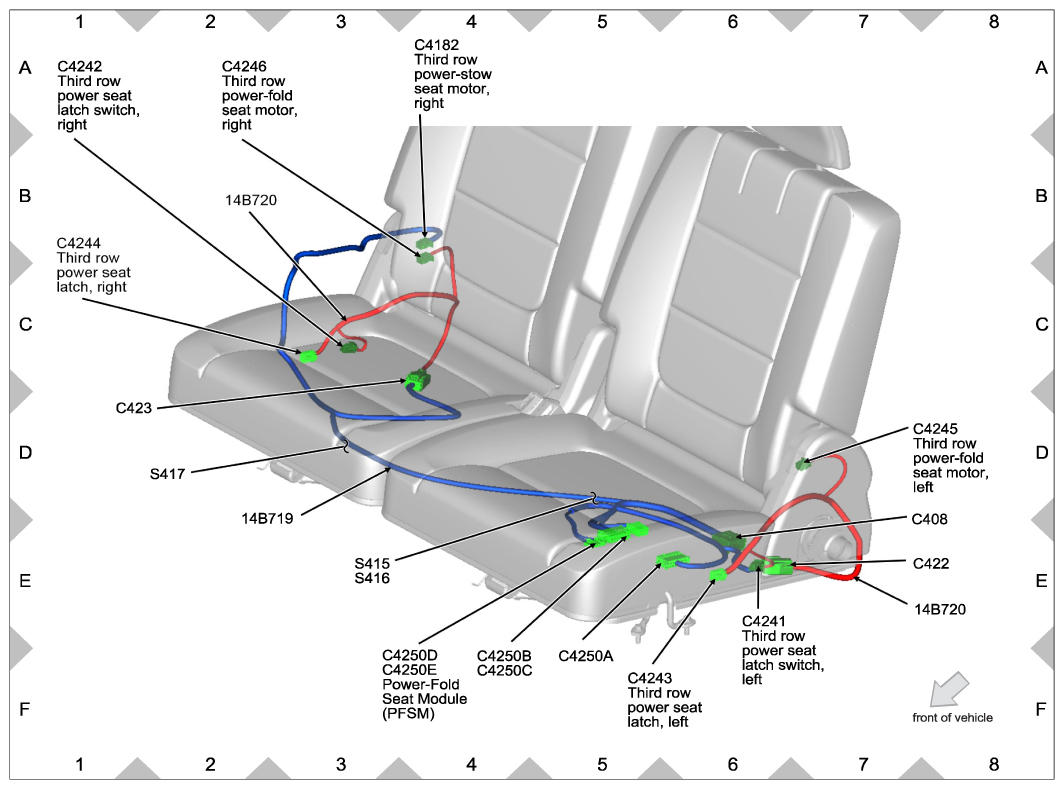

Fig 54: Seat - Third Row Wiring Harness Connectors Location

G09230361

Courtesy of FORD MOTOR CO.

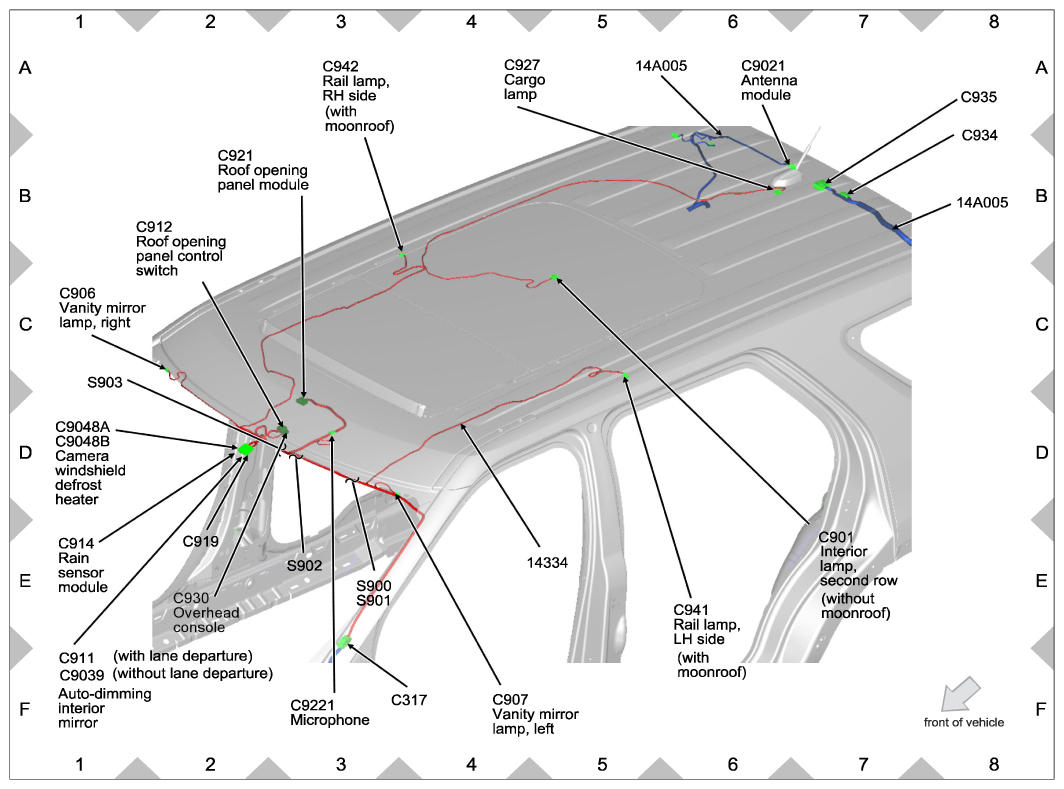

Fig 55: Roof Wiring Harness Connectors Location (1 Of 2)

G09230362

Courtesy of FORD MOTOR CO.

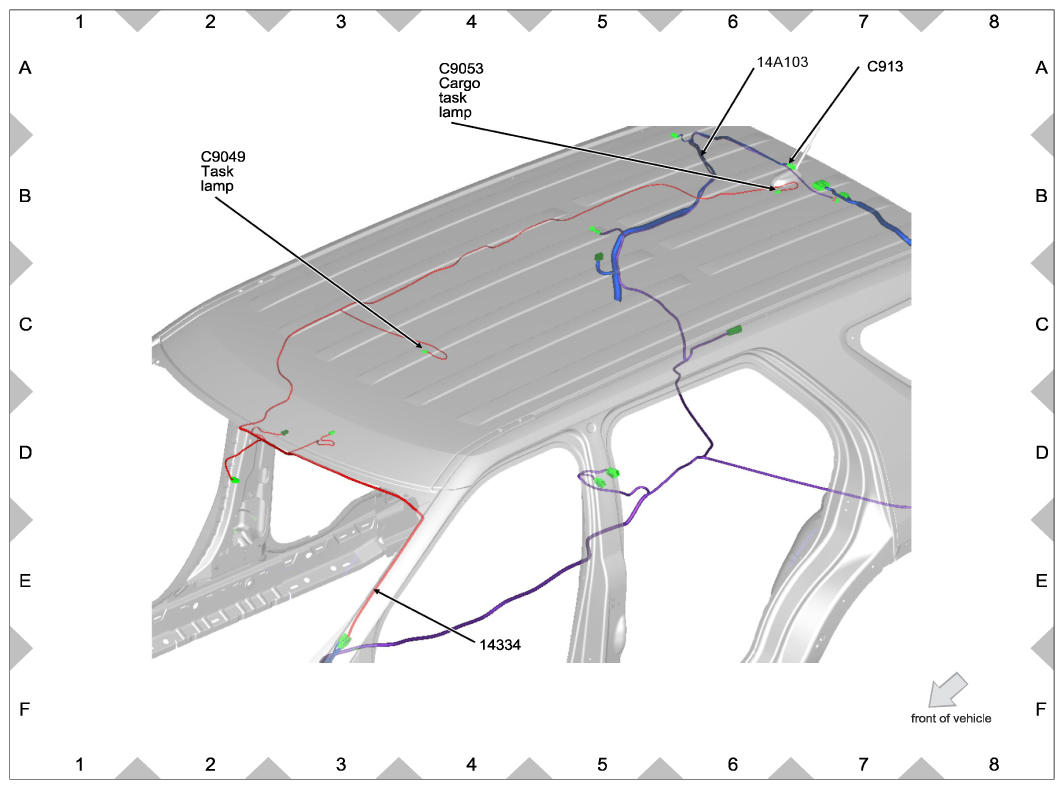

Fig 56: Roof Wiring Harness Connectors Location (2 Of 2)

G09230363

Courtesy of FORD MOTOR CO.
