Home › Ford › 2014 › Explorer Sport › Repair and Diagnosis › Electrical › Body Electrical › OEM Ground Distribution › Grounds › G103

OEM Ground Distribution: Grounds: G103

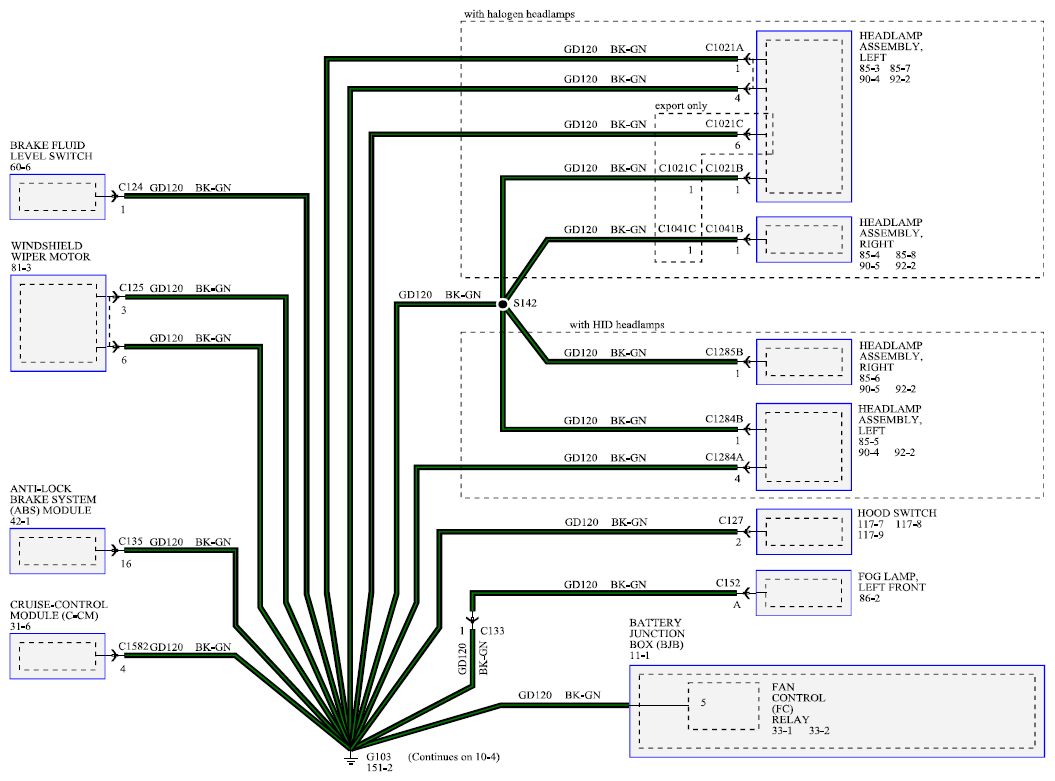

Fig 1: Grounds System - Wiring Diagram - G103
G09230124Courtesy of FORD MOTOR CO.
