OEM Ground Distribution: Grounds: G201

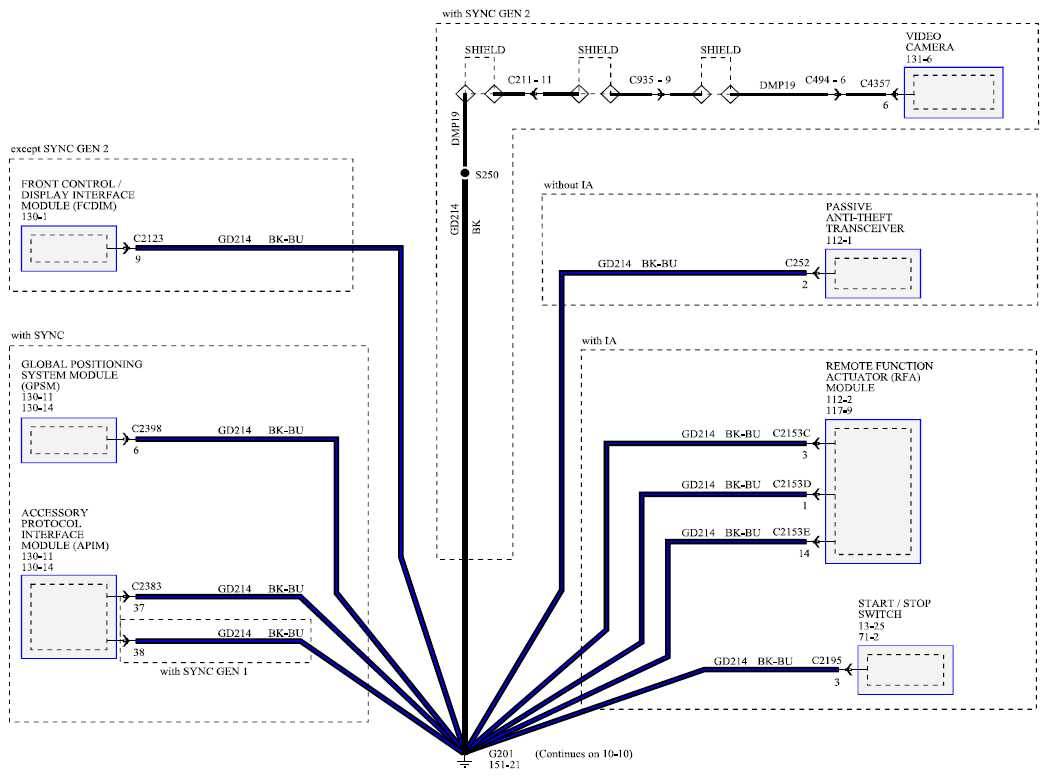

Fig 1: Grounds System - Wiring Diagram - G201 (1 Of 2)

Courtesy of FORD MOTOR CO.

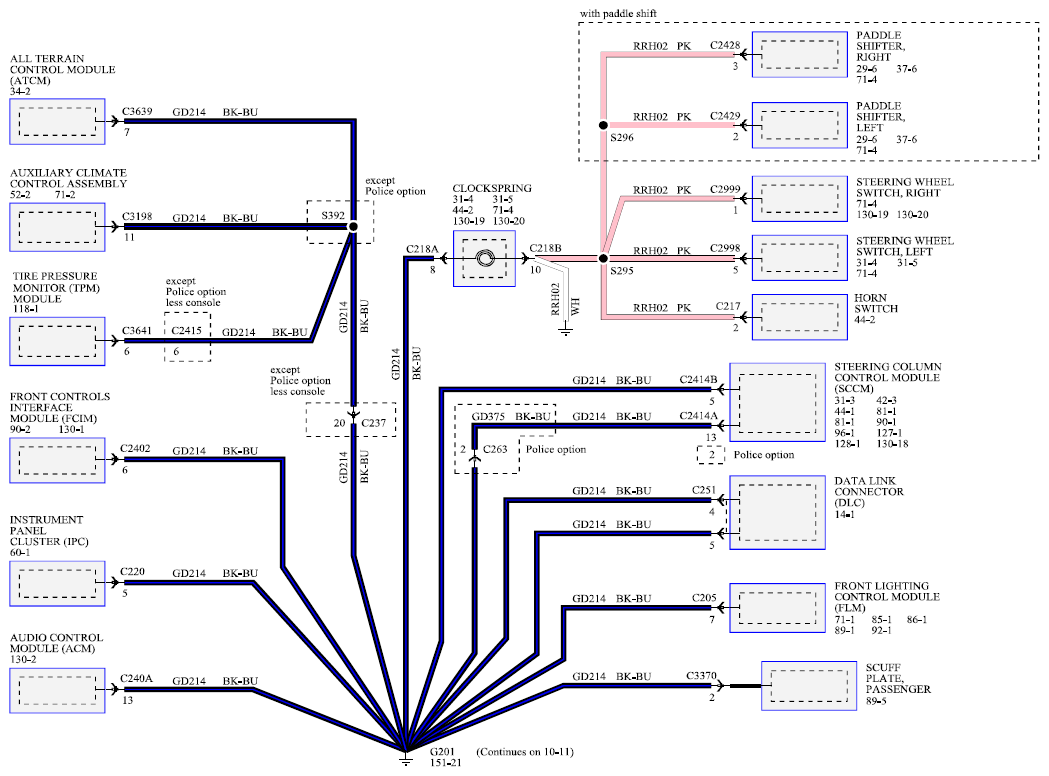

Fig 2: Grounds System - Wiring Diagram - G201 (2 Of 2)

Courtesy of FORD MOTOR CO.
