Roof Opening Panel Control Switch: Schematic

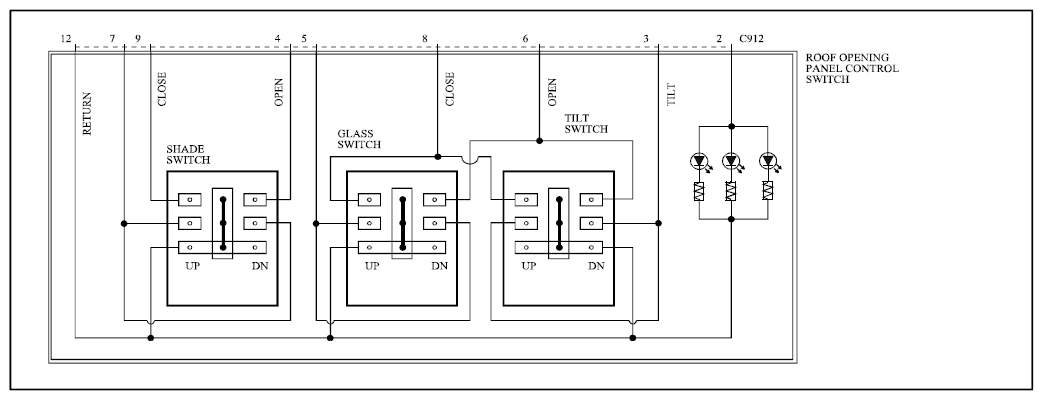

Fig 1: Roof Opening Panel Control Switch Schematic
G09231123Courtesy of FORD MOTOR CO.
