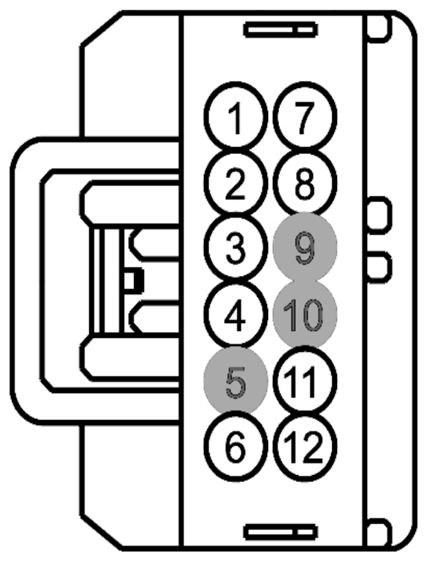

Camera Switching Module Connector End View (C1664)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CBP34 (VT-BN) | 22 | FUSE - 34 OR CIRCUIT BREAKER | |
| 2 | VMP19 (WH-GN) | 22 | CAMERA - VIDEO OUT | |
| 3 | RMP19 (BN-VT) | 22 | CAMERA - VIDEO OUT | |
| 4 | DMP19 (BK) | 20 | CAMERA - VIDEO OUT | |
| 5 | * | * | Not Used | |
| 6 | GD120 (BK-GN) | 20 | GROUND - FENDER FRONT LEFT | |
| 7 | VMP19 (WH) | 20 | CAMERA - PARKING AID REAR VIDEO | |
| 8 | RMP19 (BN) | 20 | CAMERA - PARKING AID REAR VIDEO | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | RMP19 (BN-VT) | 20 | CAMERA - FRONT VIDEO | |
| 12 | VMP19 (WH-GN) | 20 | CAMERA - FRONT VIDEO |

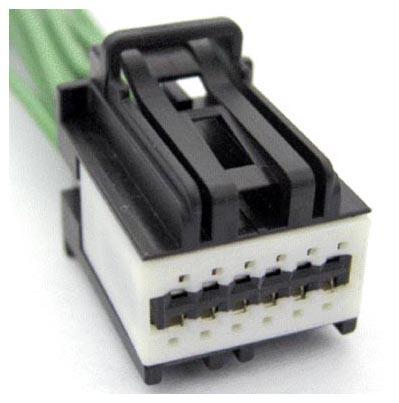

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-930 | Service Part Number: 9U2Z-14S411-DA Gauge: 18 Pin material: Silver Cavities: 12 Vehicle Uses
|
