Generator - 3.5L GTDI: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

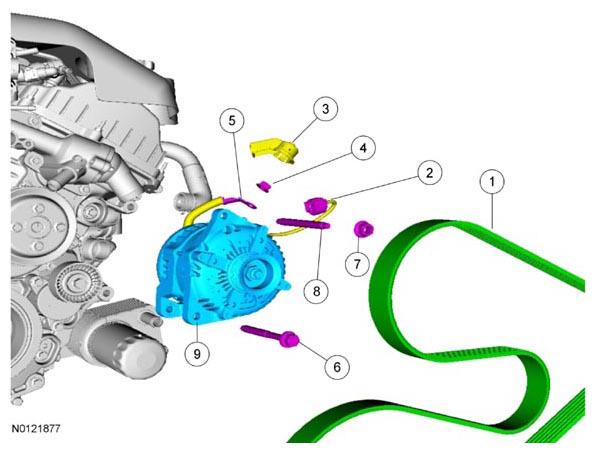

| Item | Part Number | Description |
|---|---|---|
| 1 | 8620 | Accessory drive belt |
| 2 | - | Generator electrical connector (part of 14300) |
| 3 | - | Generator B+ protective boot (part of 14300) |
| 4 | W711953 | Generator B+ terminal nut - 17 Nm (150 lb-in) |
| 5 | - | Generator B+ terminal (part of 14300) |
| 6 | W715092 | Generator bolt (lower) - 47 Nm (35 lb-ft) |
| 7 | W520414 | Generator stud nut - 47 Nm (35 lb-ft) |
| 8 | W715087 | Generator stud - 8 Nm (71 lb-in) |
| 9 | 10346 | Generator |
