Generator - 5.0L: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

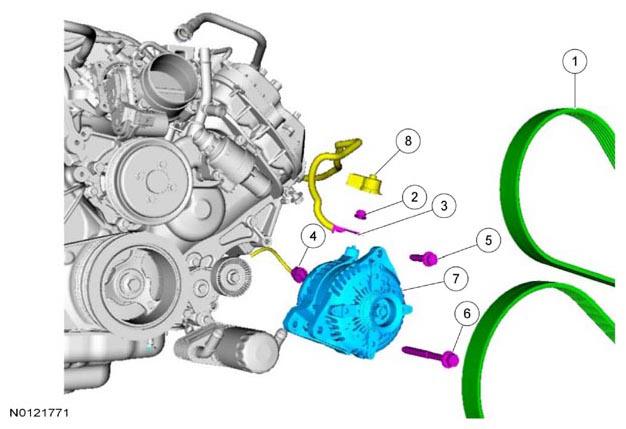

| Item | Part Number | Description |
|---|---|---|
| 1 | 8620 | Accessory drive belt |
| 2 | W711953 | Generator B+ terminal nut - 17 Nm (150 lb-in) |
| 3 | - | Generator B+ terminal (part of 14B060) |
| 4 | - | Generator electrical connector (part of 14B060) |
| 5 | W715094 | Upper generator bolt - 48 Nm (35 lb-ft) |
| 6 | W715092 | Lower generator bolt - 48 Nm (35 lb-ft) |
| 7 | 10346 | Generator |
| 8 | - | Generator B+ protective boot (part of 14B060) |
