Brake Shift Interlock Actuator - Column Shift: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

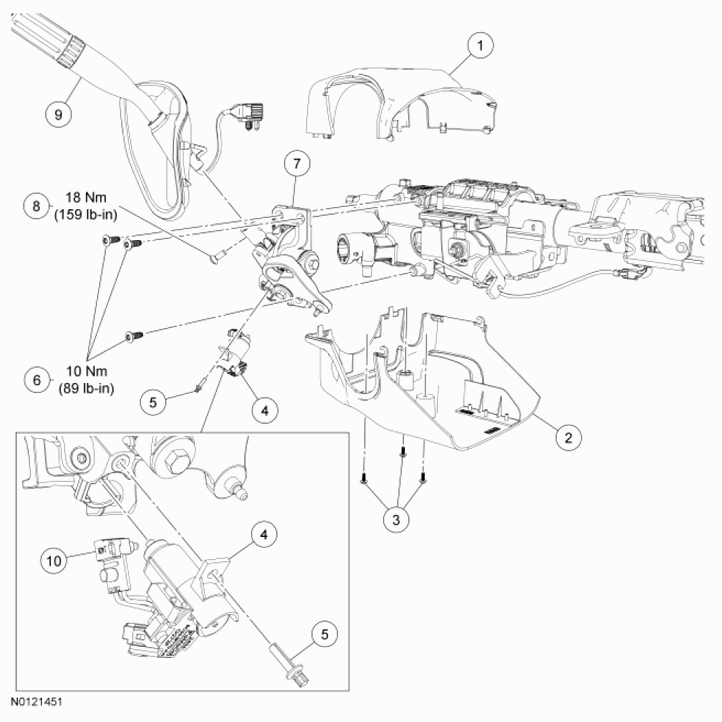

Fig 1: Exploded View Of Brake Shift Interlock Actuator With Torque Specifications (Column Shift)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3530	Upper steering column shroud
2	3530	Lower steering column shroud
3	W710485	Lower steering column shroud screws (3 required)
4	3Z719	Brake Shift Interlock Actuator (BSIA)
5	3F907	BSIA  screw
6	W790181	Selector lever mechanism bolts (3 required)
7	7210B	Selector lever mechanism
8	W712000	Selector lever bolt
9	7210A	Selector lever
10	-	Park position switch (part of 3Z719)
