Hydraulic Control Unit (HCU): Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft® High Performance DOT 3 Motor Vehicle Brake Fluid (US)/Motorcraft® Brake Fluid - Heavy Duty DOT 3 (Canada) PM-1-C (US); CPM-1-C (Canada)	WSS-M6C65-A1

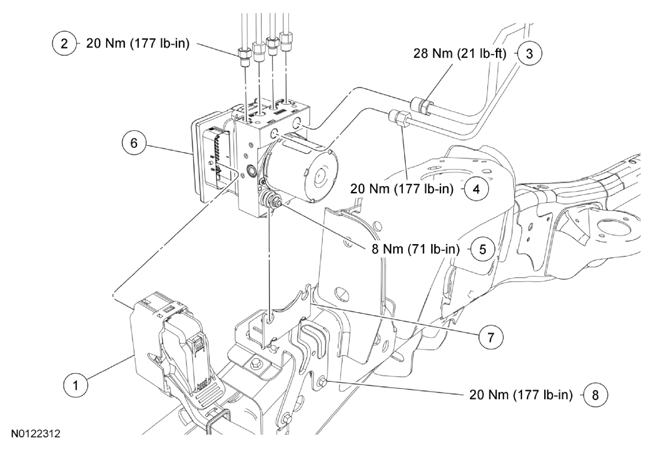

Fig 1: Hydraulic Control Unit Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	ABS module electrical connector (part of 12A581)
2	-	Brake tube-to-Hydraulic Control Unit (HCU) fitting (4 required)
3	2A040	Master cylinder primary brake tube-to-HCU  fitting
4	2B253	Master cylinder secondary brake tube-to-HCU  fitting
5	-	HCU  -to-bracket nut (part of kit 2C229) (2 required)
6	2C215	HCU  (also part of 2C405)
7	2C304	HCU  bracket (also part of 2C405)
8	W506424	HCU  bracket bolts (3 required)
