Ford
›
2014
›
F-150 Limited, 4WD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Ground Distribution
›
Grounds
›
Notes
OEM Ground Distribution: Grounds: Notes

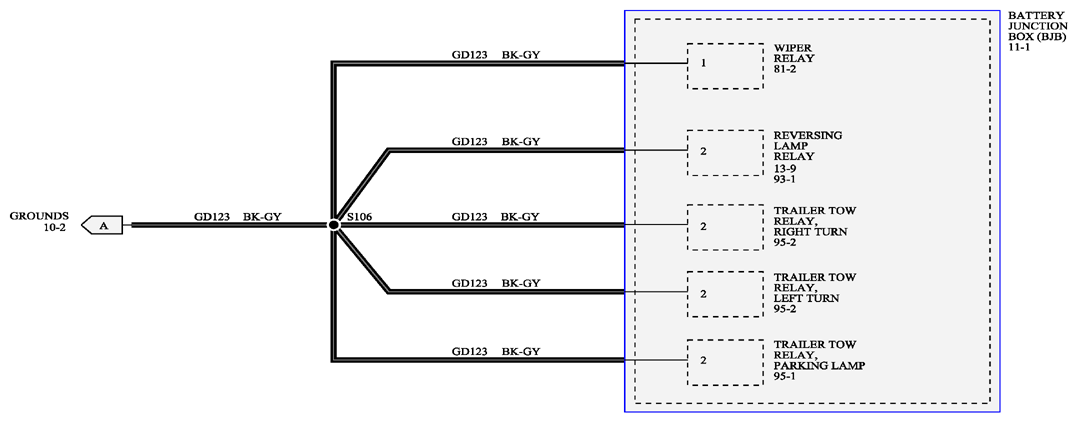

Fig 1: Ground System - Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

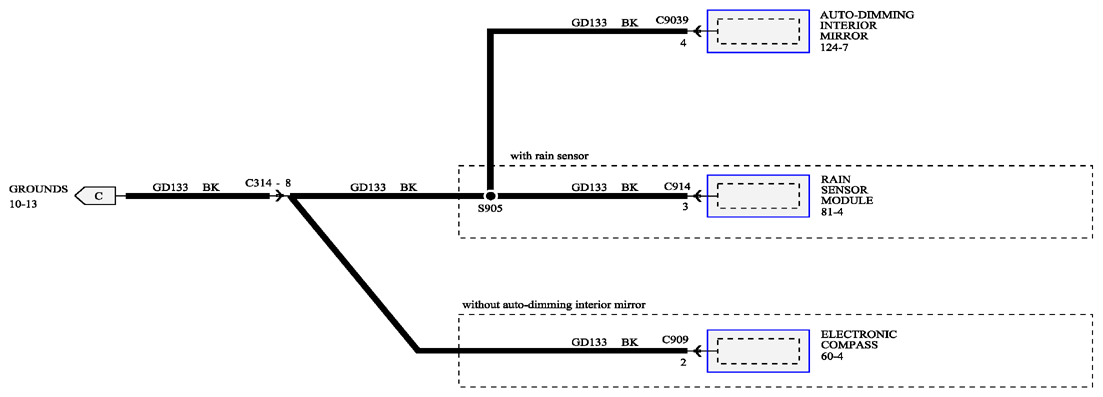

Fig 2: Ground System - Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
