Master Window Control Switch: Schematic

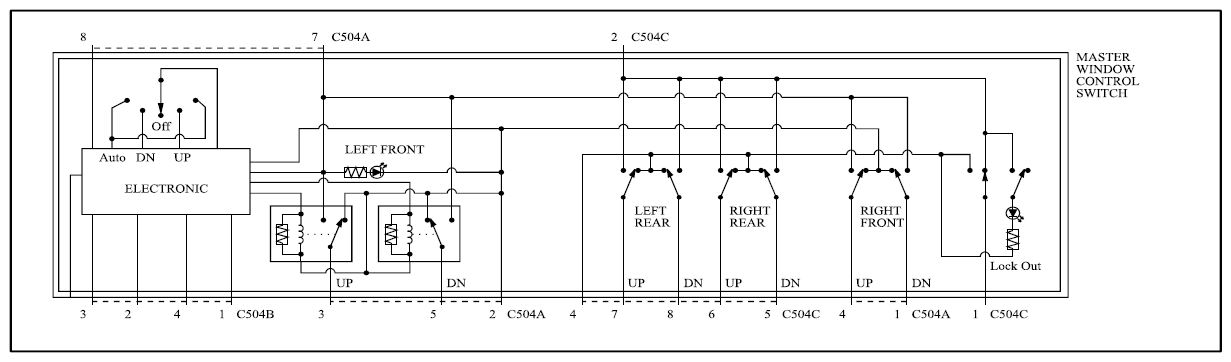

Fig 1: Master Window Control Switch Schematic
G09259742Courtesy of FORD MOTOR CO.
