Automatic Climate Control System: Notes

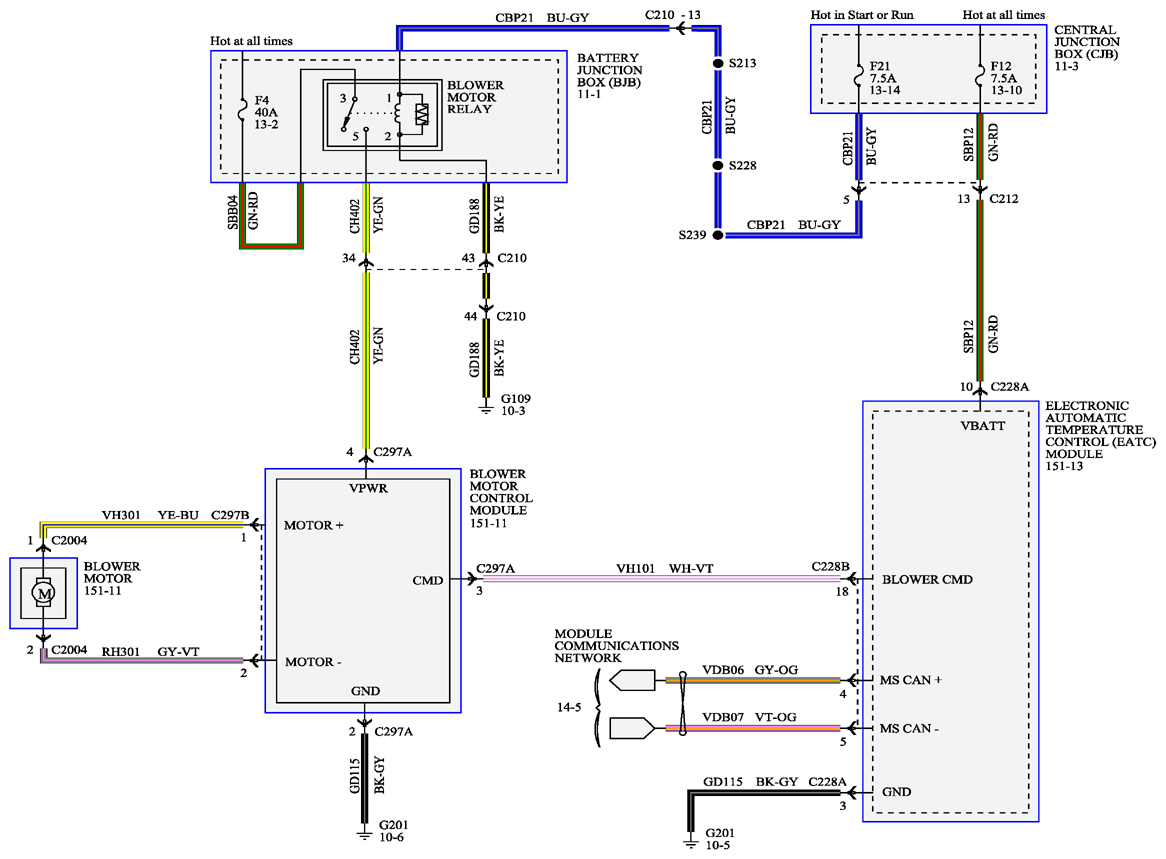

Fig 1: Automatic Climate Control System - Wiring Diagram (1 Of 4)
G09259654Courtesy of FORD MOTOR CO.

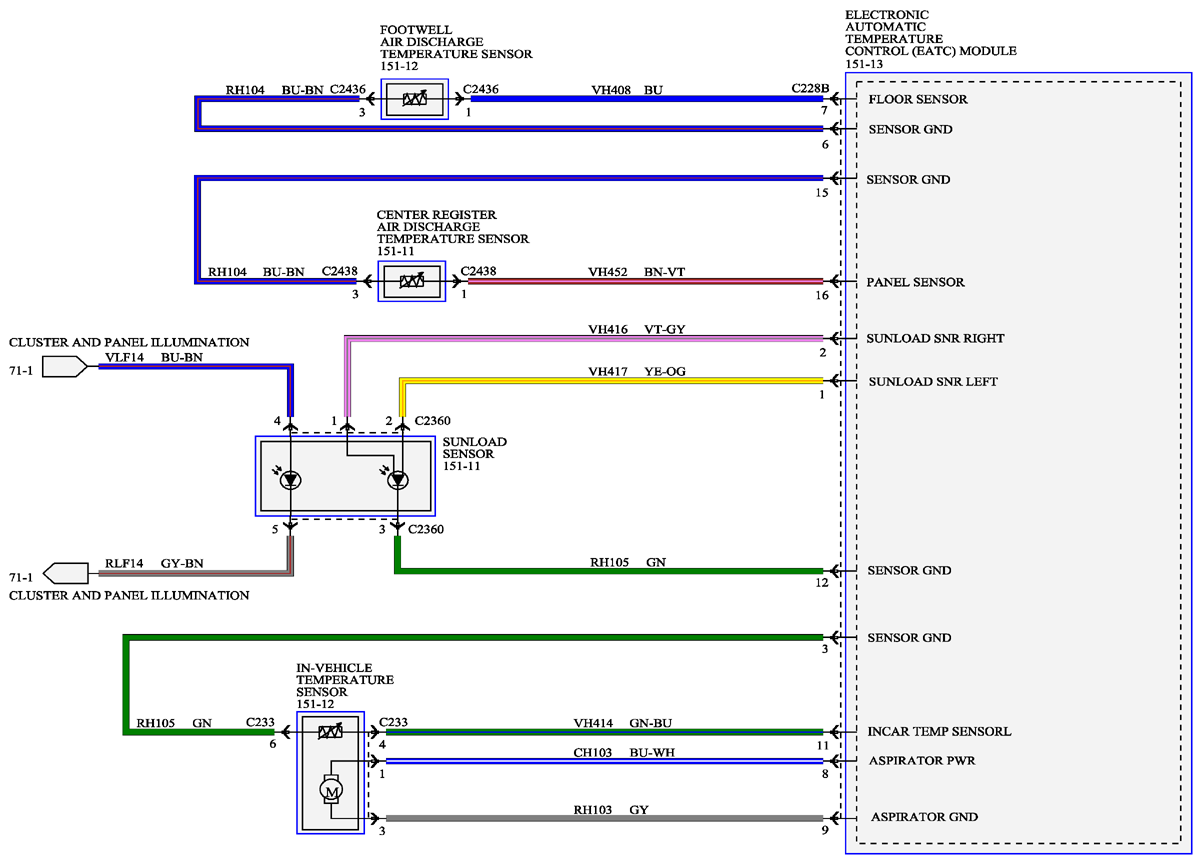

Fig 2: Automatic Climate Control System - Wiring Diagram (2 Of 4)
G09259655Courtesy of FORD MOTOR CO.

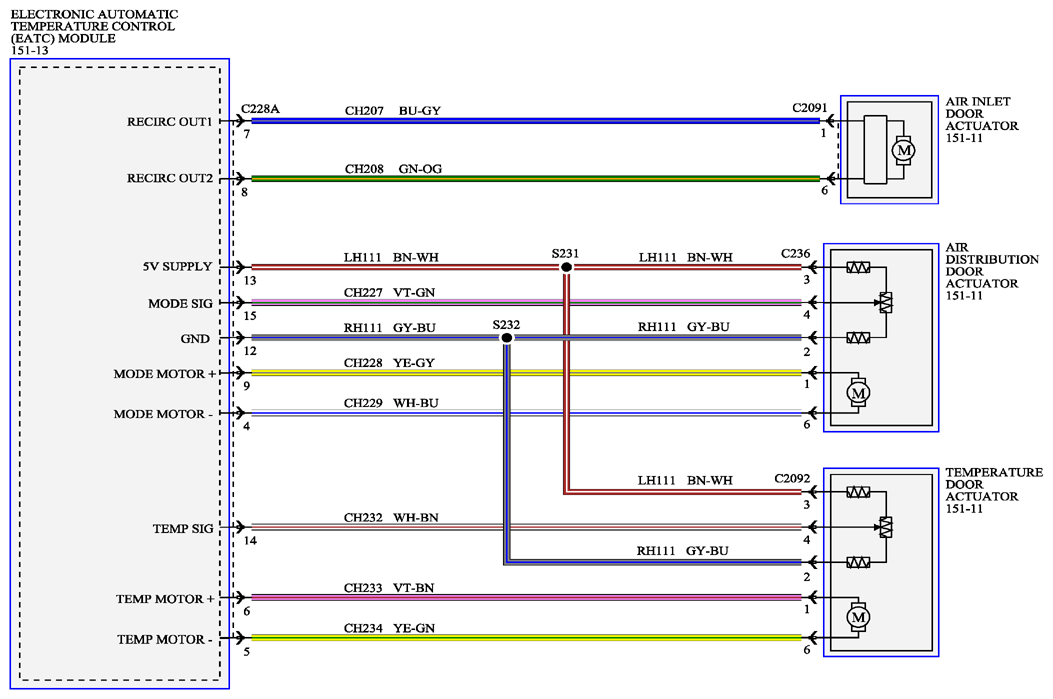

Fig 3: Automatic Climate Control System - Wiring Diagram (3 Of 4)
G09259656Courtesy of FORD MOTOR CO.

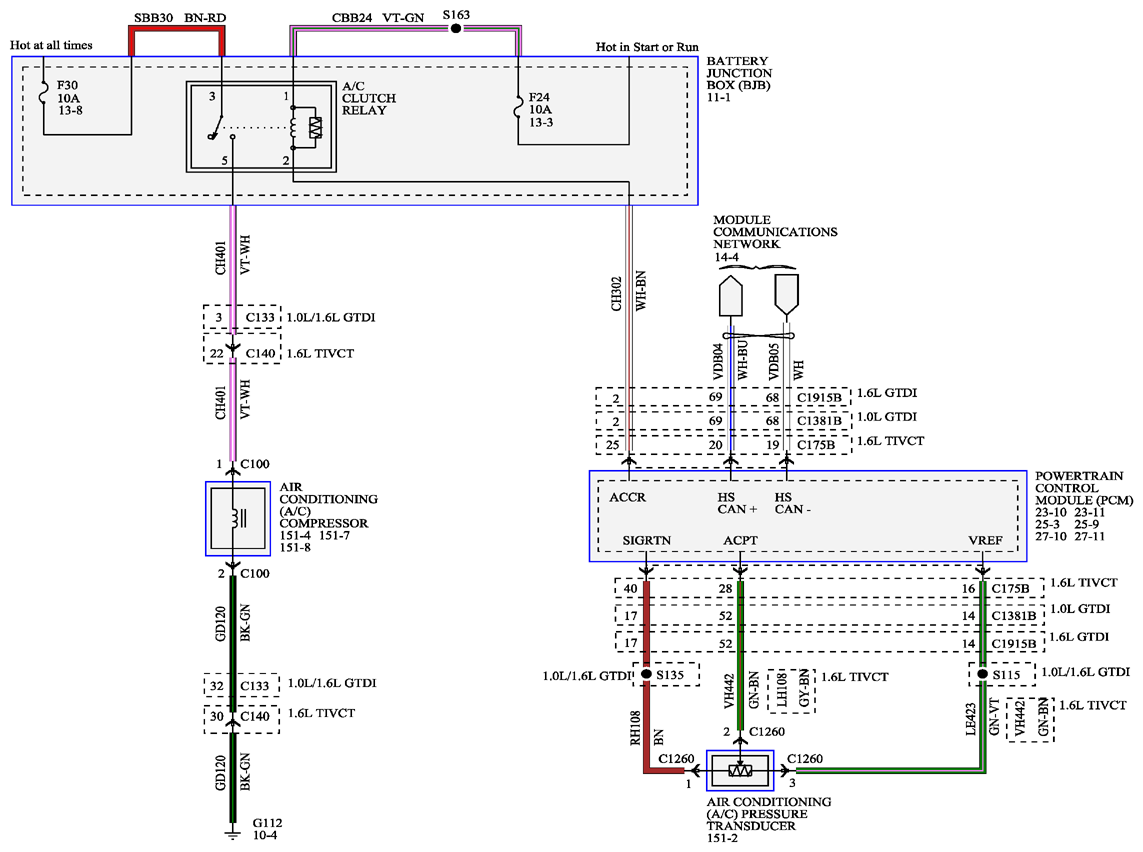

Fig 4: Automatic Climate Control System - Wiring Diagram (4 Of 4)
G09259657Courtesy of FORD MOTOR CO.
