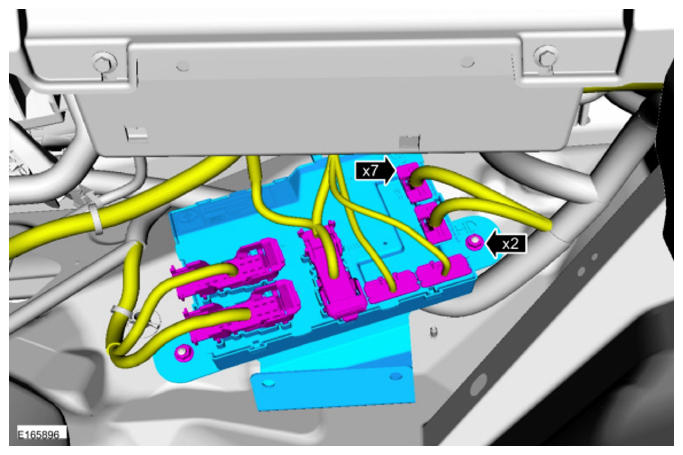

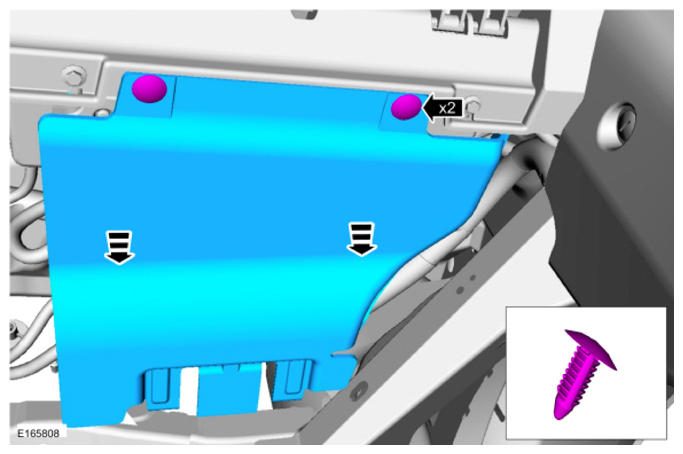

Body Control Module (BCM): Installation
- Torque
: 115 lb.in (13 Nm)
-
NOTE: If the BCM is not being replaced, this is the last step that is necessary.
- Using a diagnostic scan tool, begin the PMI process for the BCM following the on-screen instructions.
- Carry out the BCM self-test to confirm all DTC have been cleared.
- For vehicles without push button start, program all the RKE
transmitter(s) into the new BCM
.
Refer to: REMOTE KEYLESS ENTRY (RKE) TRANSMITTER PROGRAMMING .
