Component Location Views

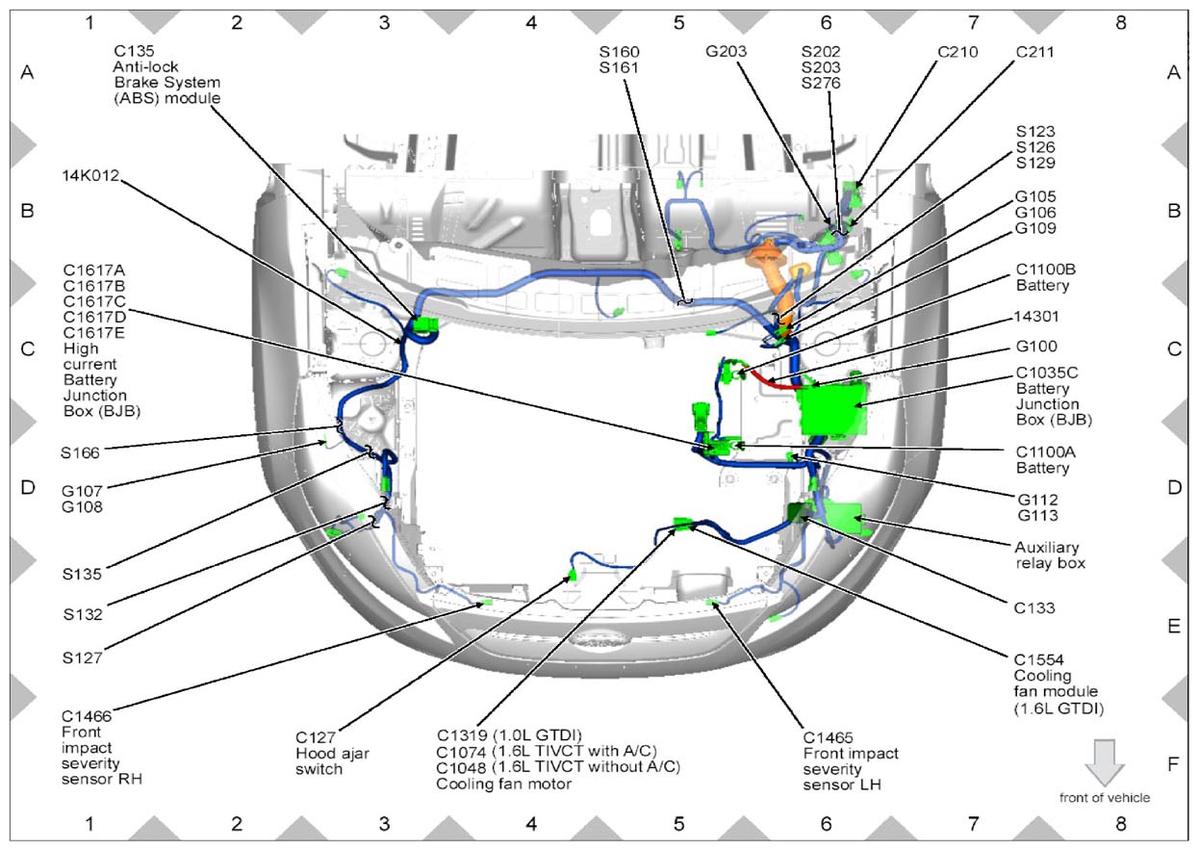

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 3)

G09260326

Courtesy of FORD MOTOR CO.

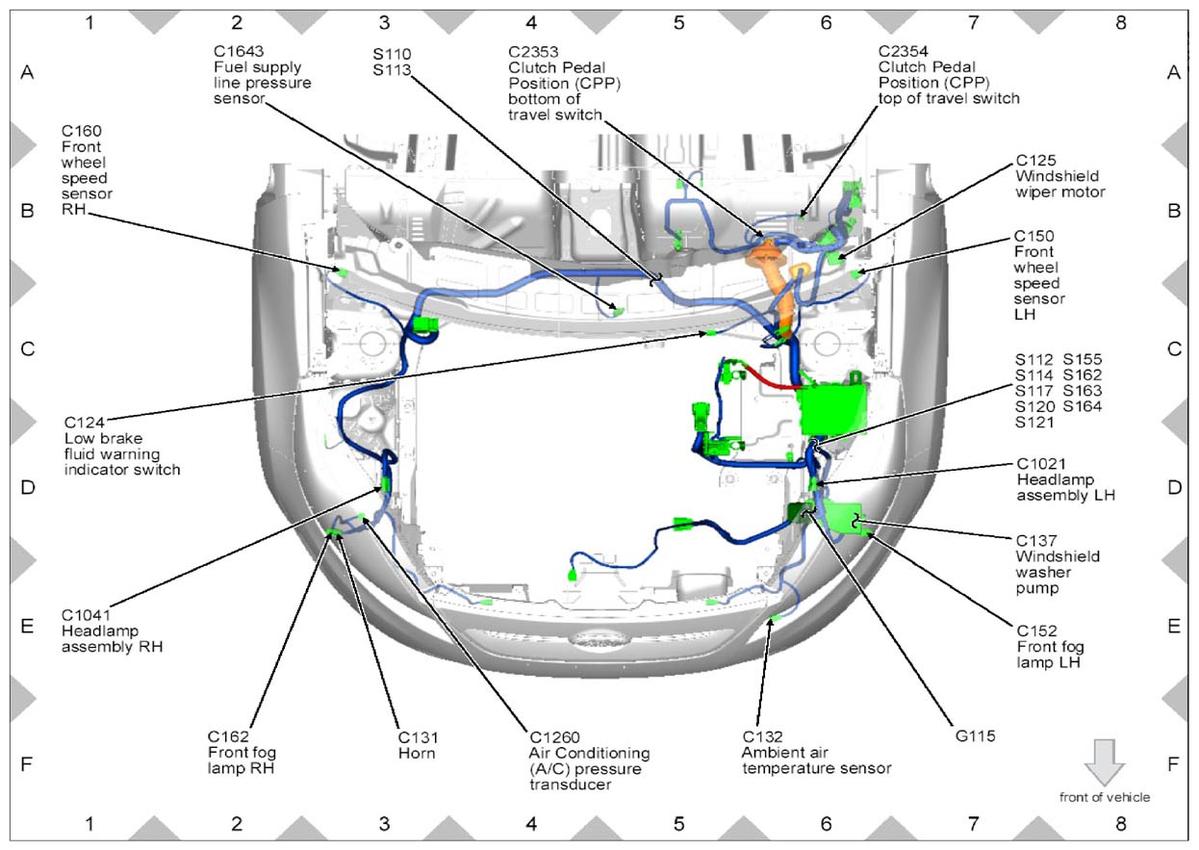

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 3)

G09260327

Courtesy of FORD MOTOR CO.

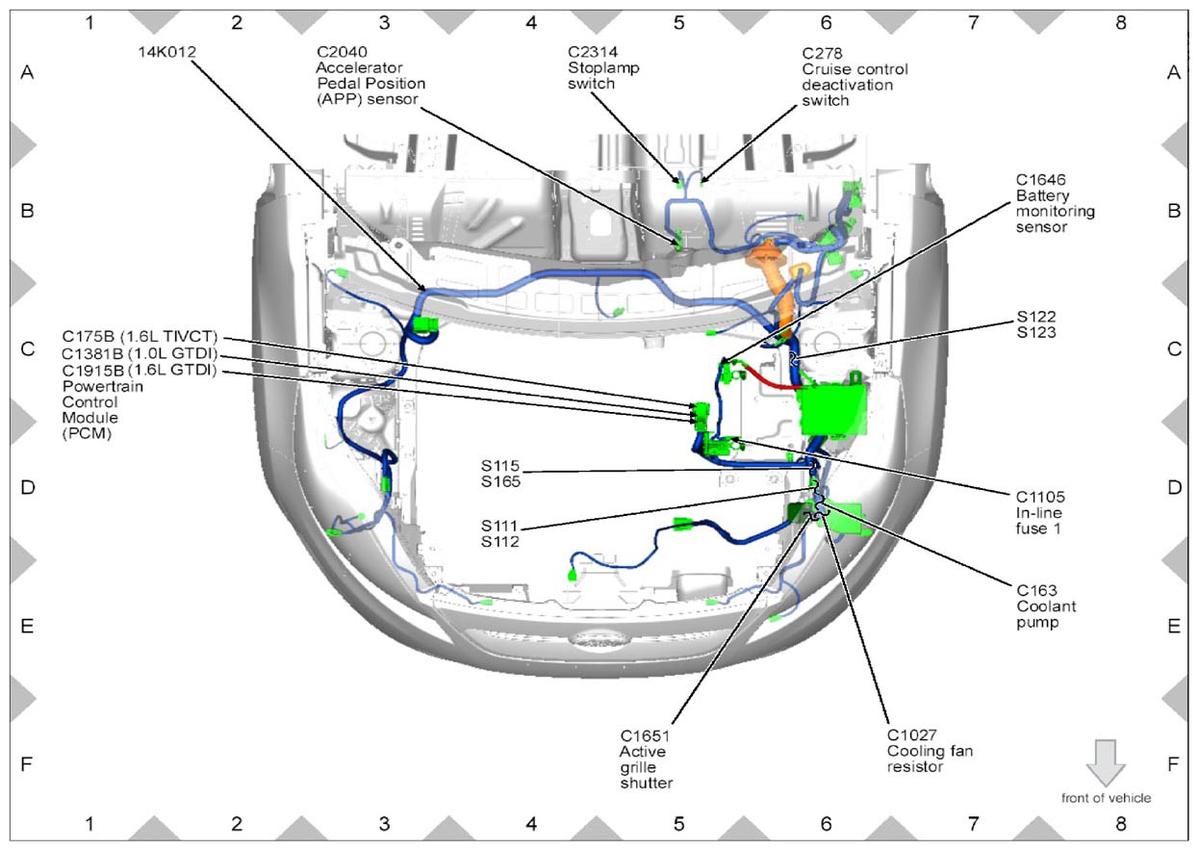

Fig 3: Engine Compartment Wiring Harness Connectors Location (3 Of 3)

G09260328

Courtesy of FORD MOTOR CO.

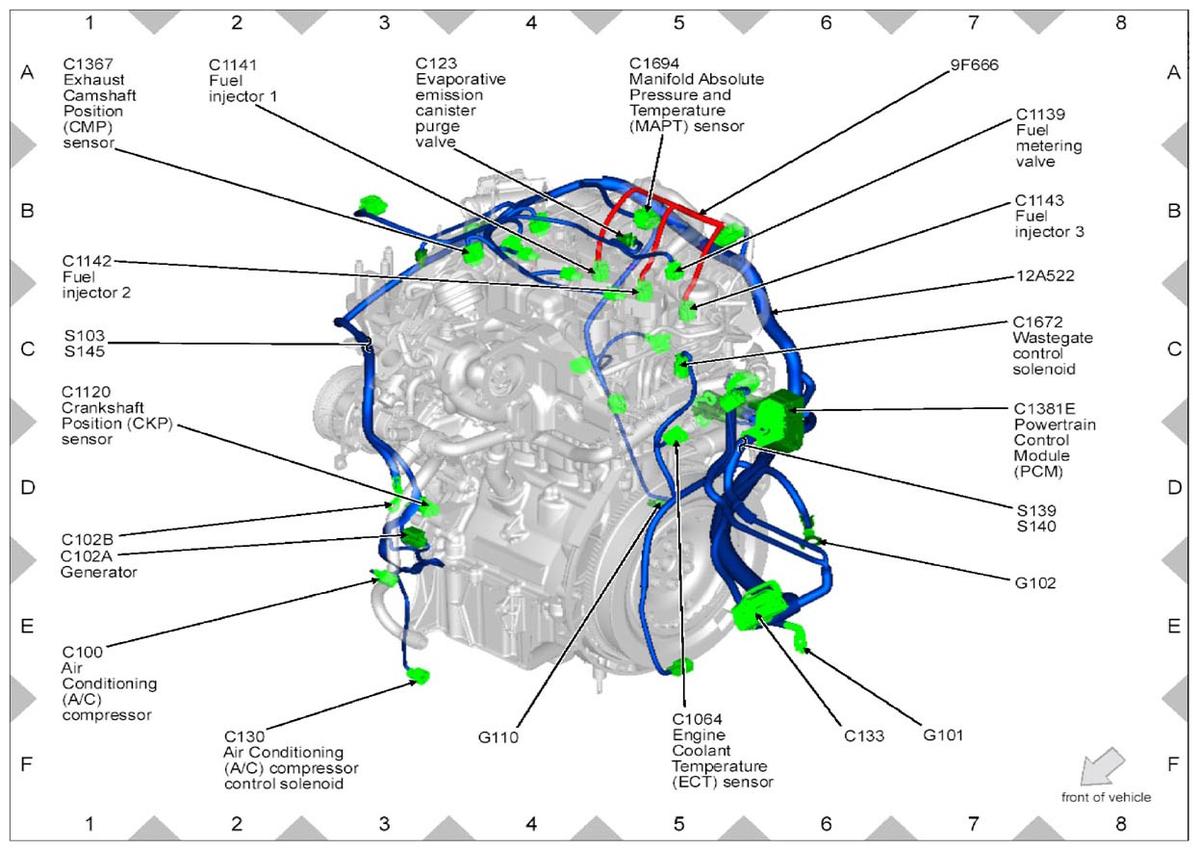

Fig 4: Engine Wiring Harness Connectors Location (1 Of 6)

G09260329

Courtesy of FORD MOTOR CO.

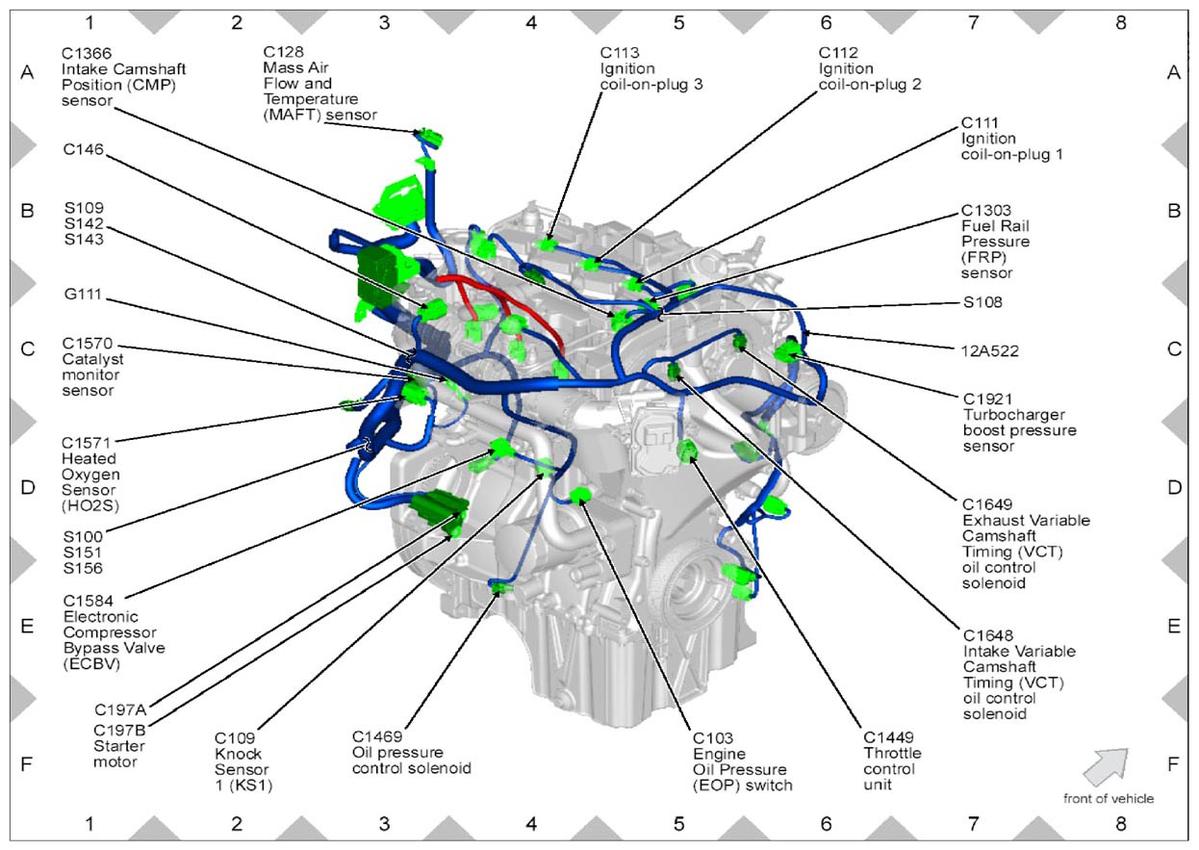

Fig 5: Engine Wiring Harness Connectors Location (2 Of 6)

G09260330

Courtesy of FORD MOTOR CO.

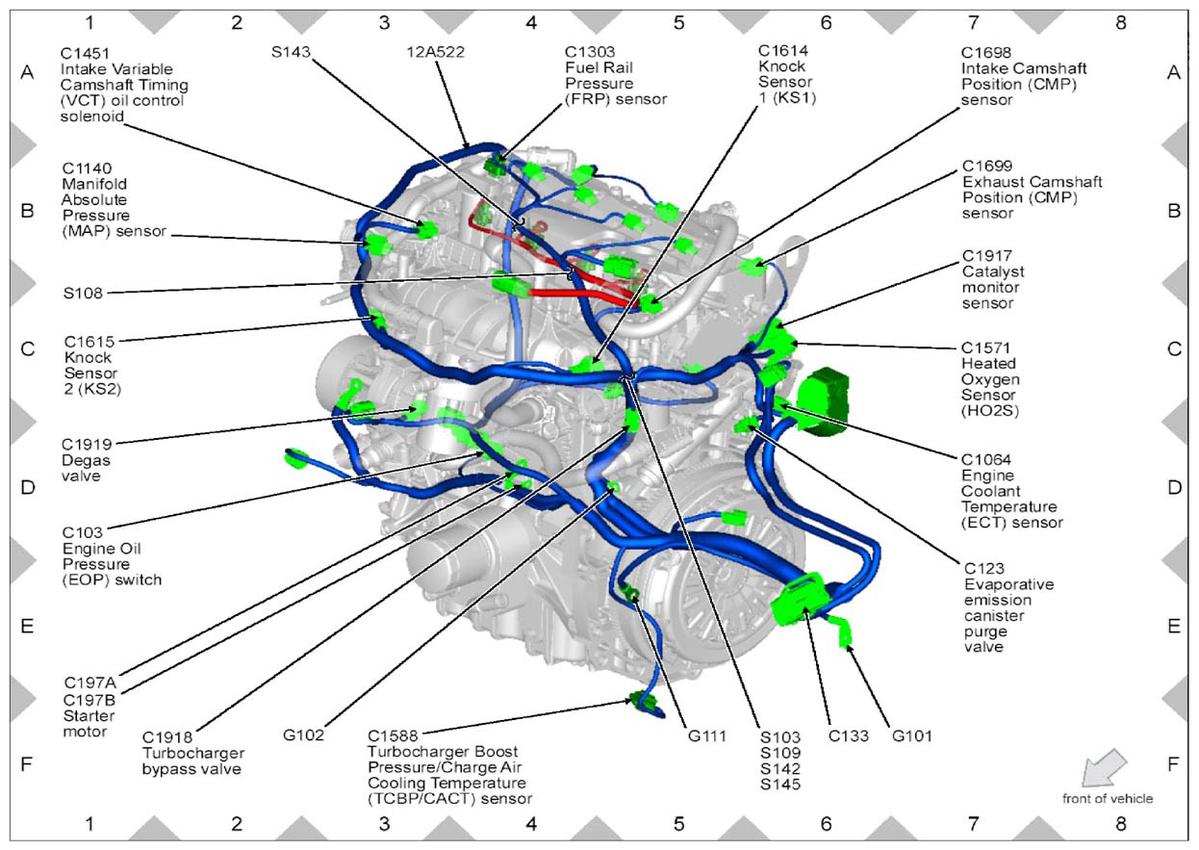

Fig 6: Engine Wiring Harness Connectors Location (3 Of 6)

G09260331

Courtesy of FORD MOTOR CO.

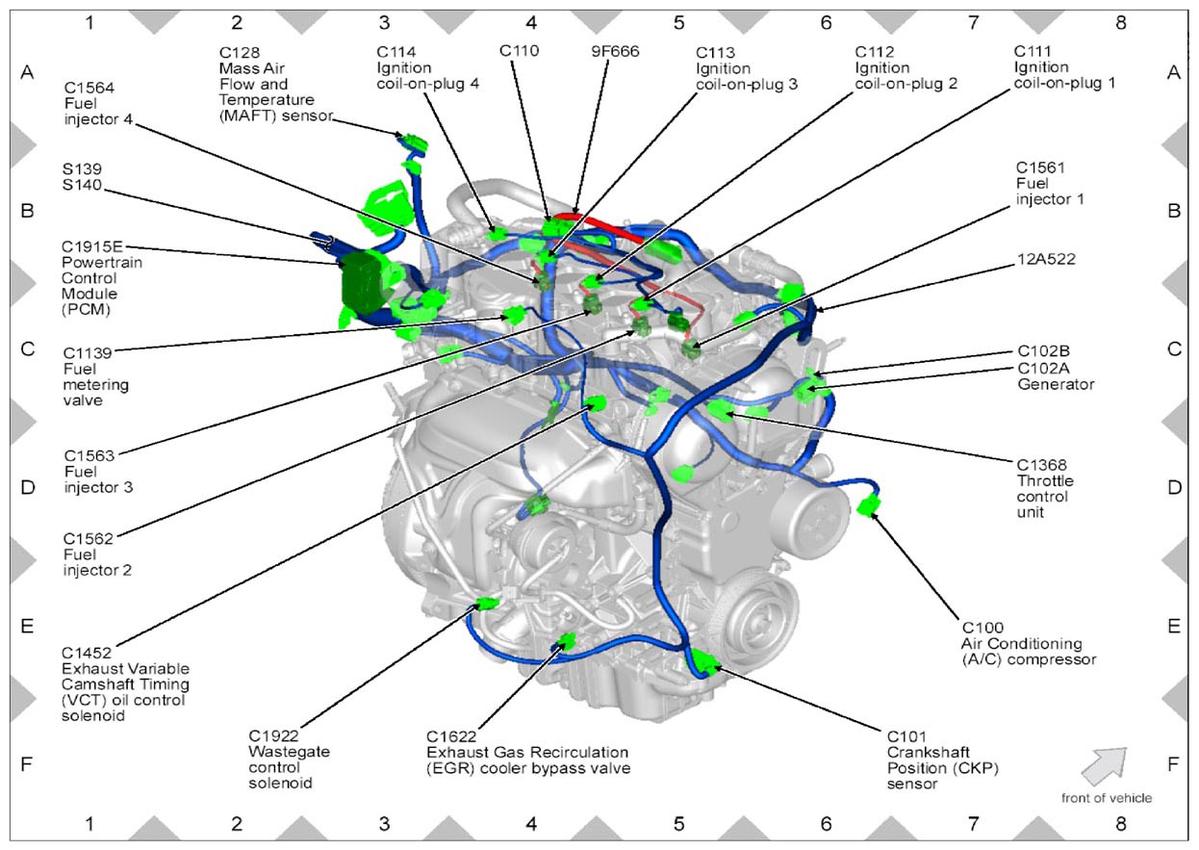

Fig 7: Engine Wiring Harness Connectors Location (4 Of 6)

G09260332

Courtesy of FORD MOTOR CO.

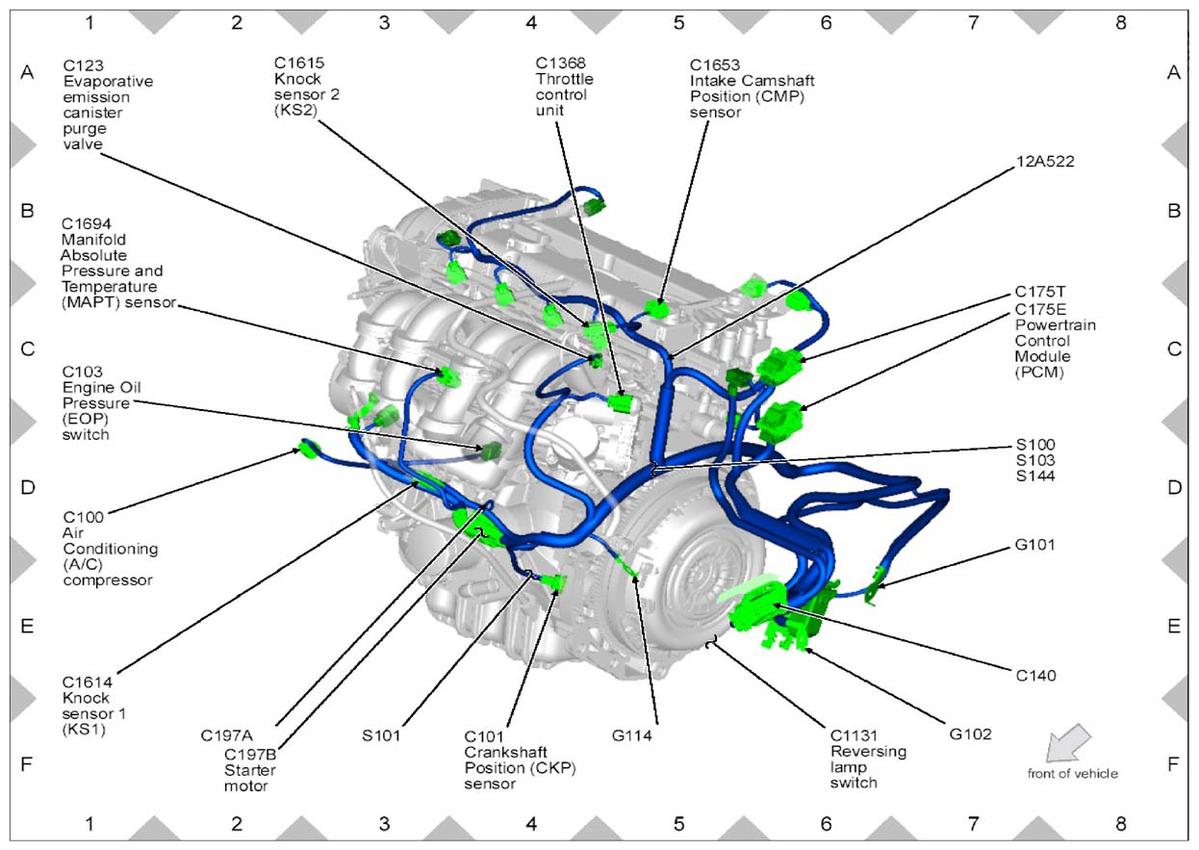

Fig 8: Engine Wiring Harness Connectors Location (5 Of 6)

G09260333

Courtesy of FORD MOTOR CO.

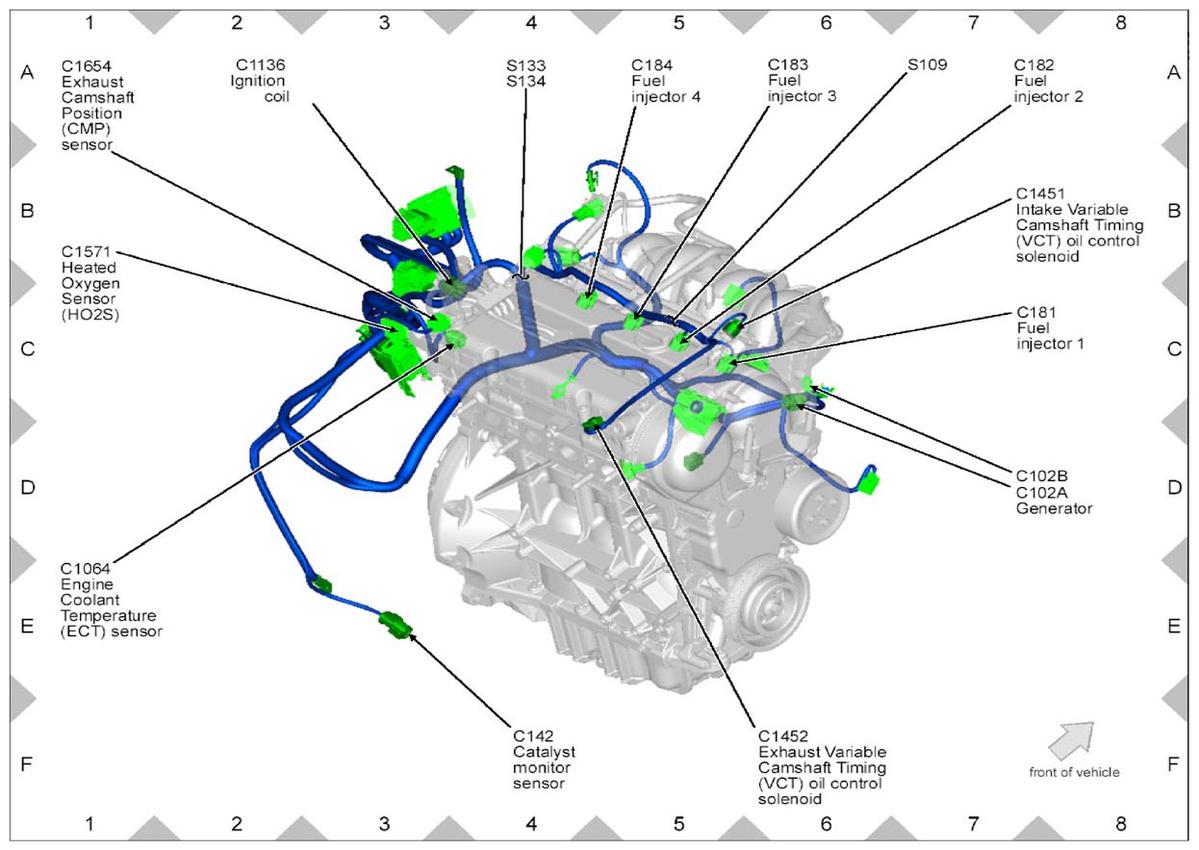

Fig 9: Engine Wiring Harness Connectors Location (6 Of 6)

G09260334

Courtesy of FORD MOTOR CO.

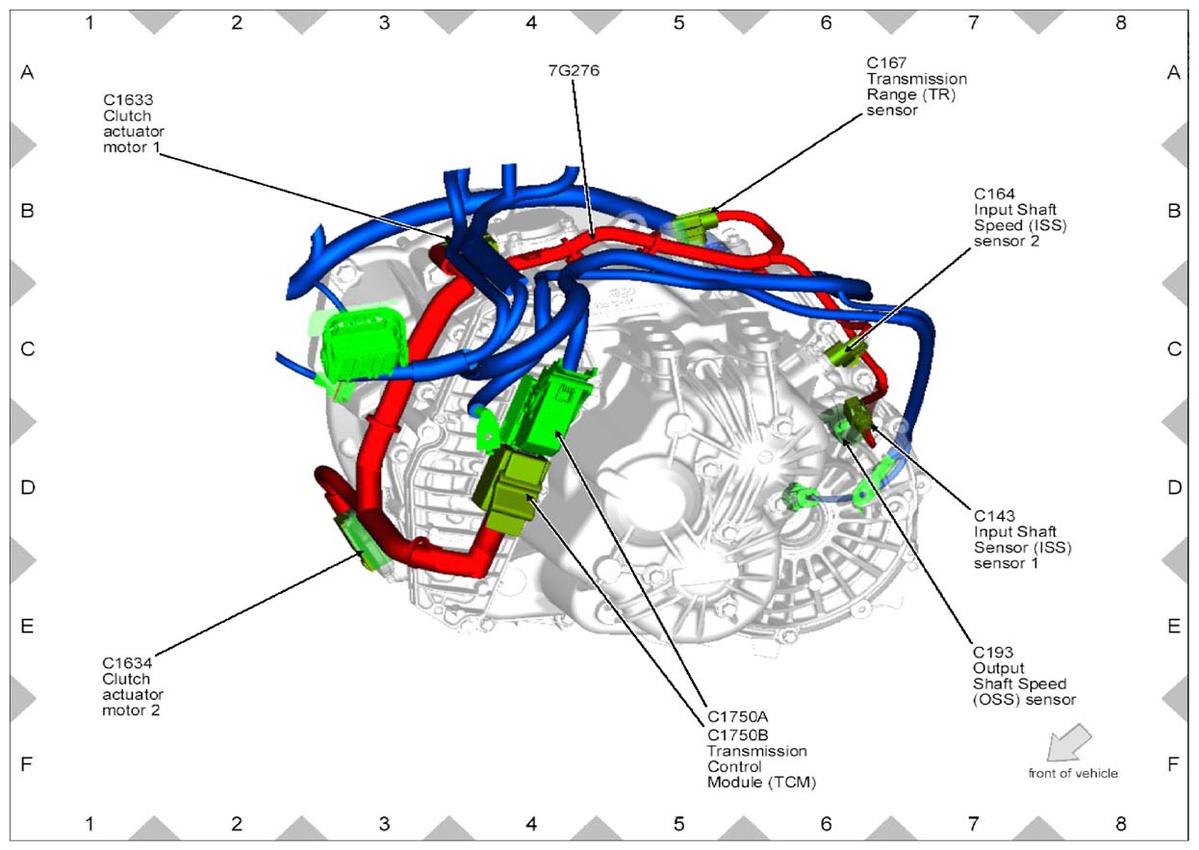

Fig 10: Transmission Control Module Wiring Harness Connectors Location

G09260335

Courtesy of FORD MOTOR CO.

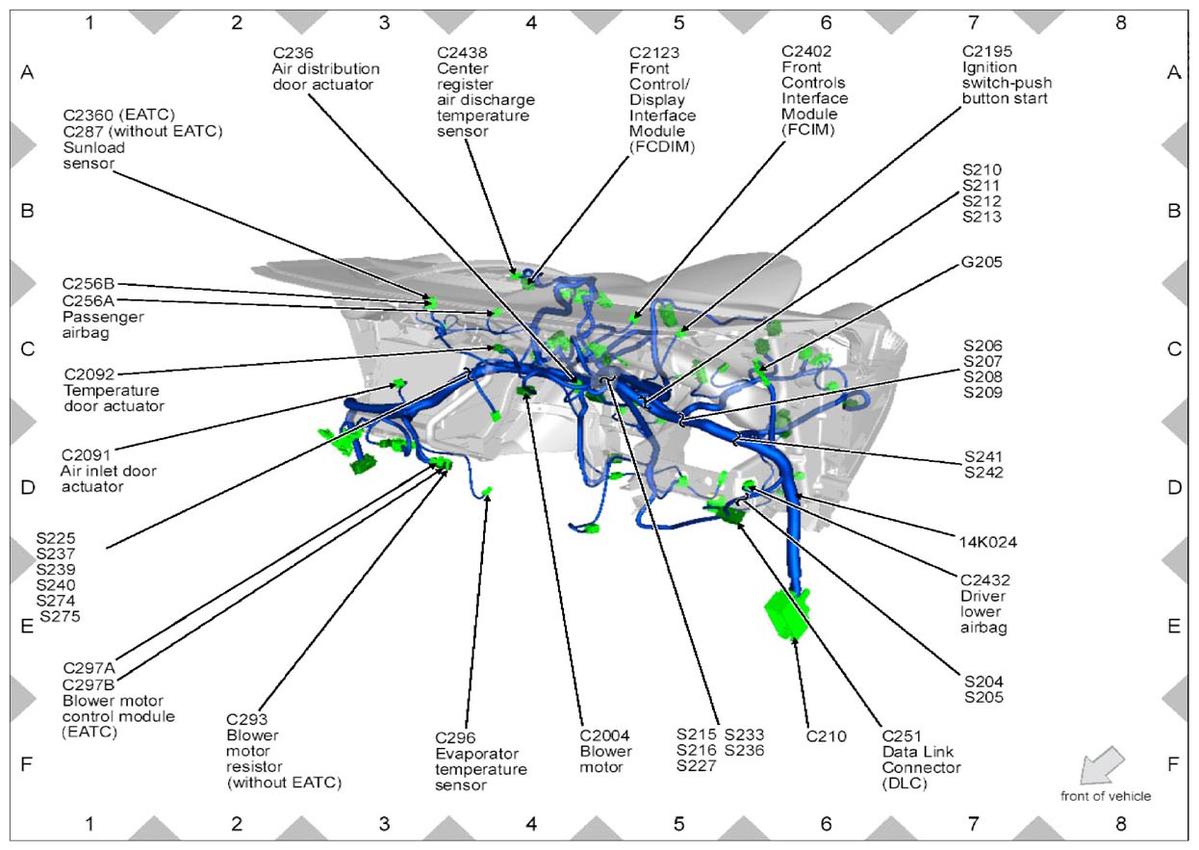

Fig 11: Blower Motor Wiring Harness Connectors Location

G09260336

Courtesy of FORD MOTOR CO.

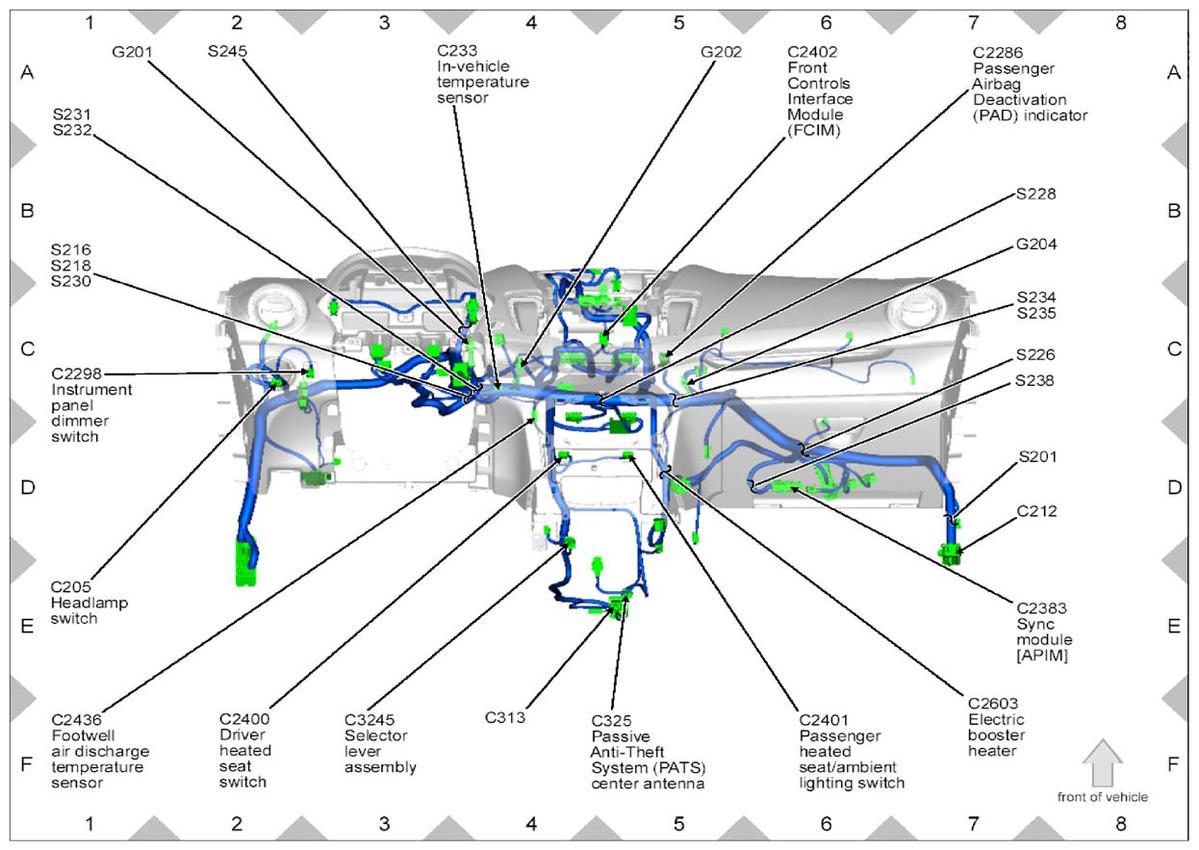

Fig 12: Front Dashboard Wiring Harness Connectors Location (1 Of 2)

G09260337

Courtesy of FORD MOTOR CO.

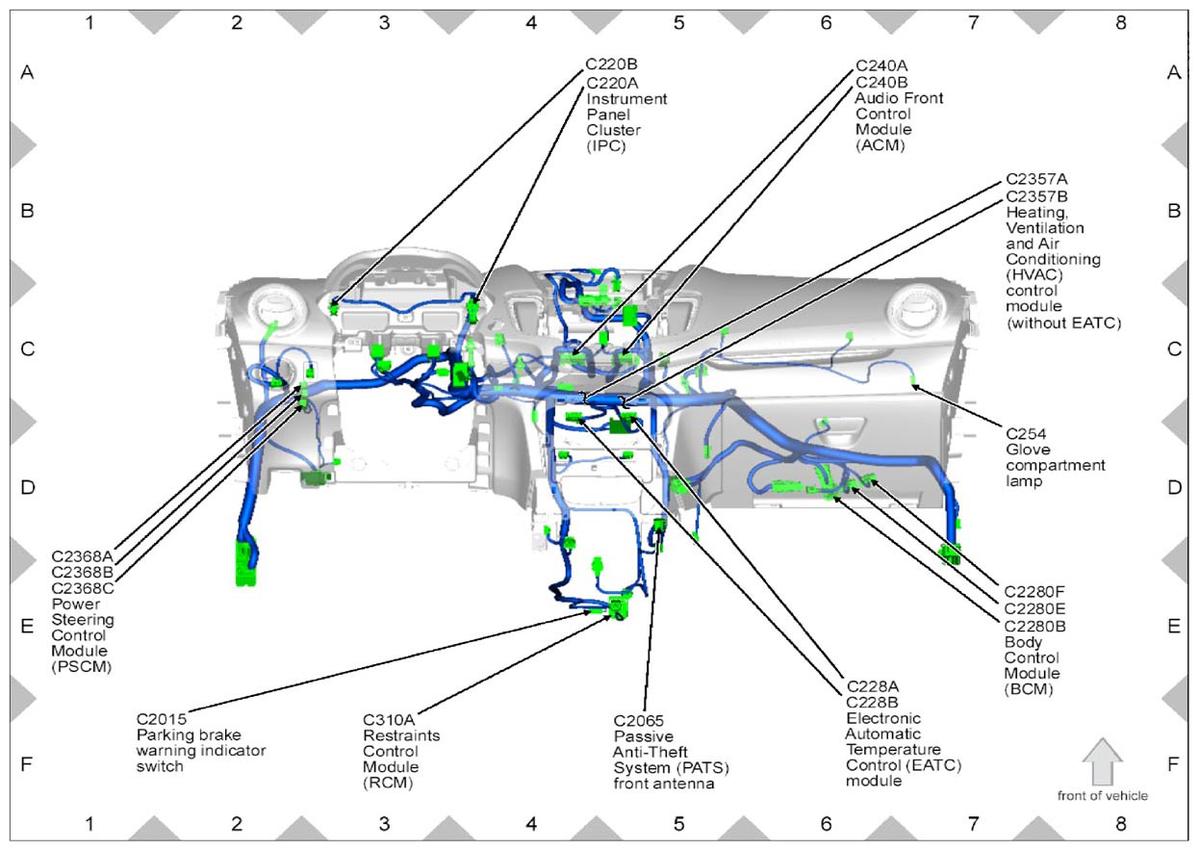

Fig 13: Front Dashboard Wiring Harness Connectors Location (2 Of 2)

G09260338

Courtesy of FORD MOTOR CO.

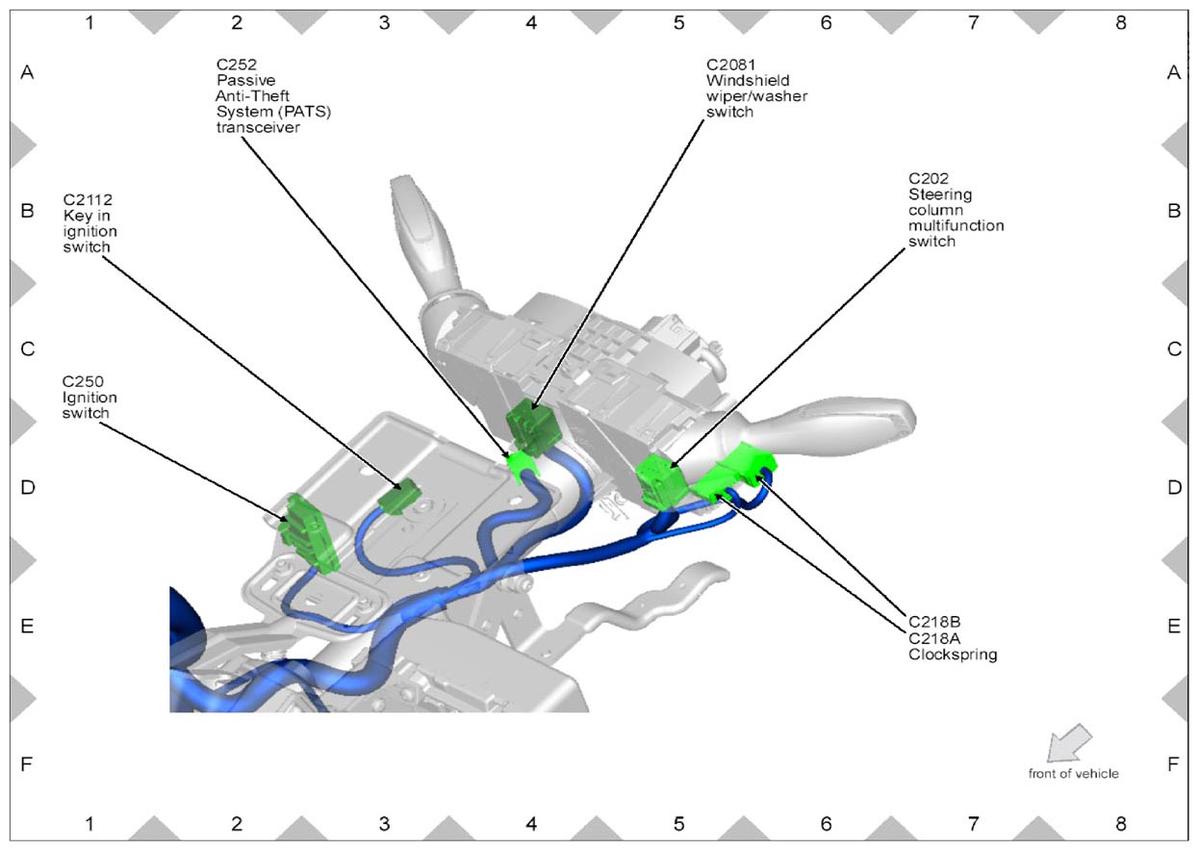

Fig 14: Steering Column Wiring Harness Connectors Location

G09260339

Courtesy of FORD MOTOR CO.

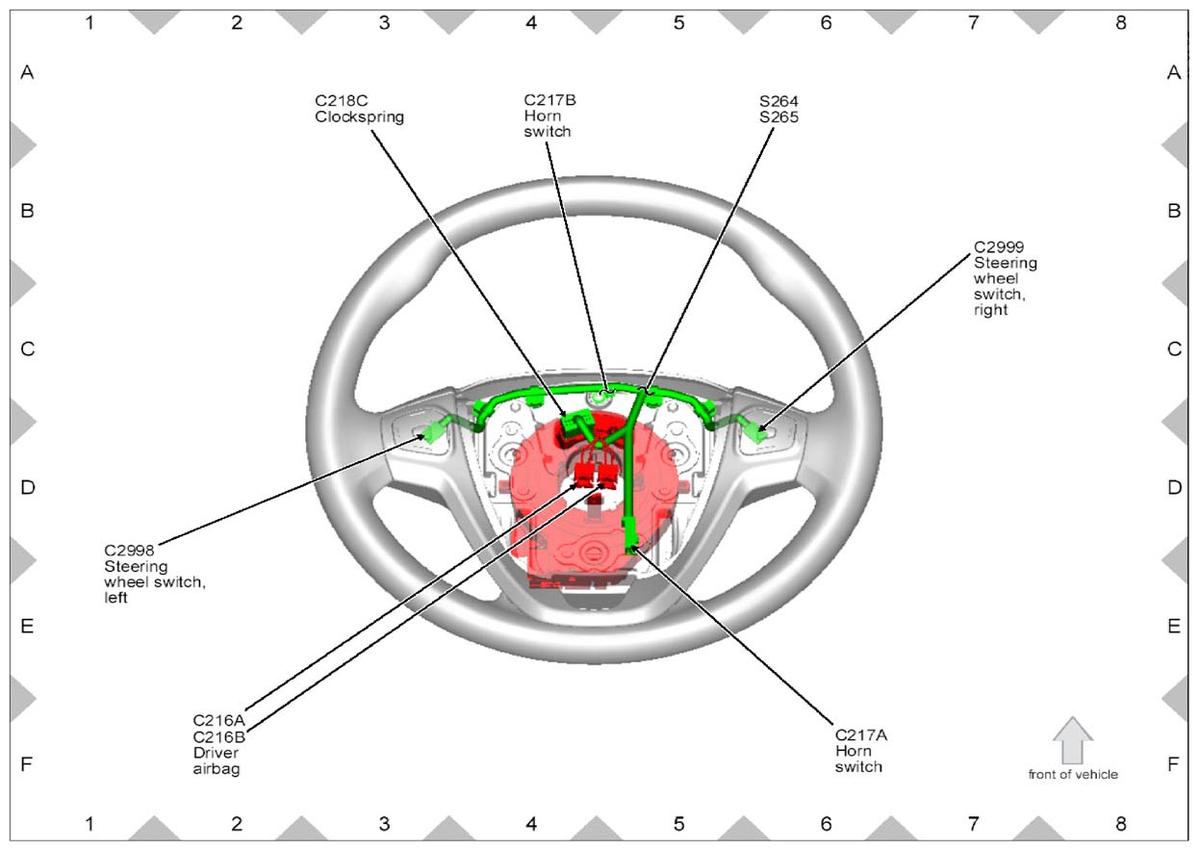

Fig 15: Steering Wheel Wiring Harness Connectors Location

G09260340

Courtesy of FORD MOTOR CO.

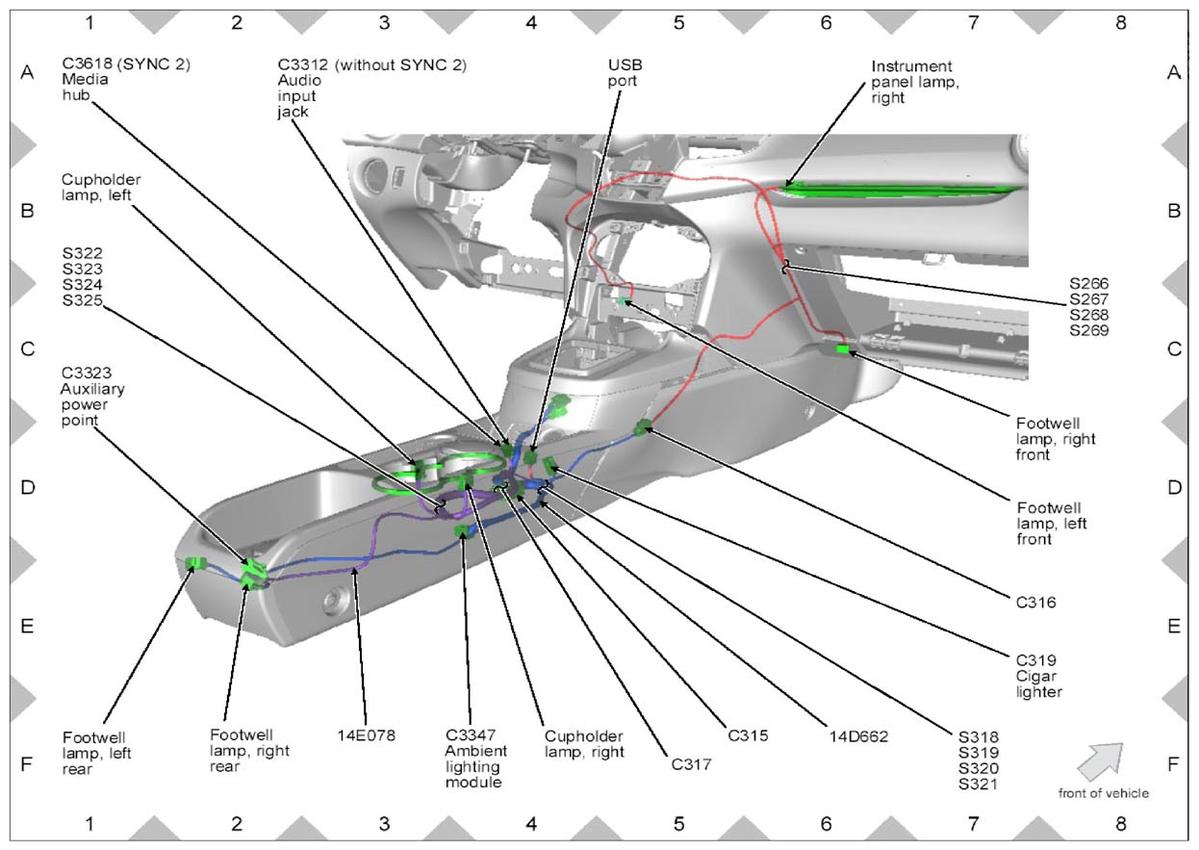

Fig 16: Center Console Wiring Harness Connectors Location

G09260341

Courtesy of FORD MOTOR CO.

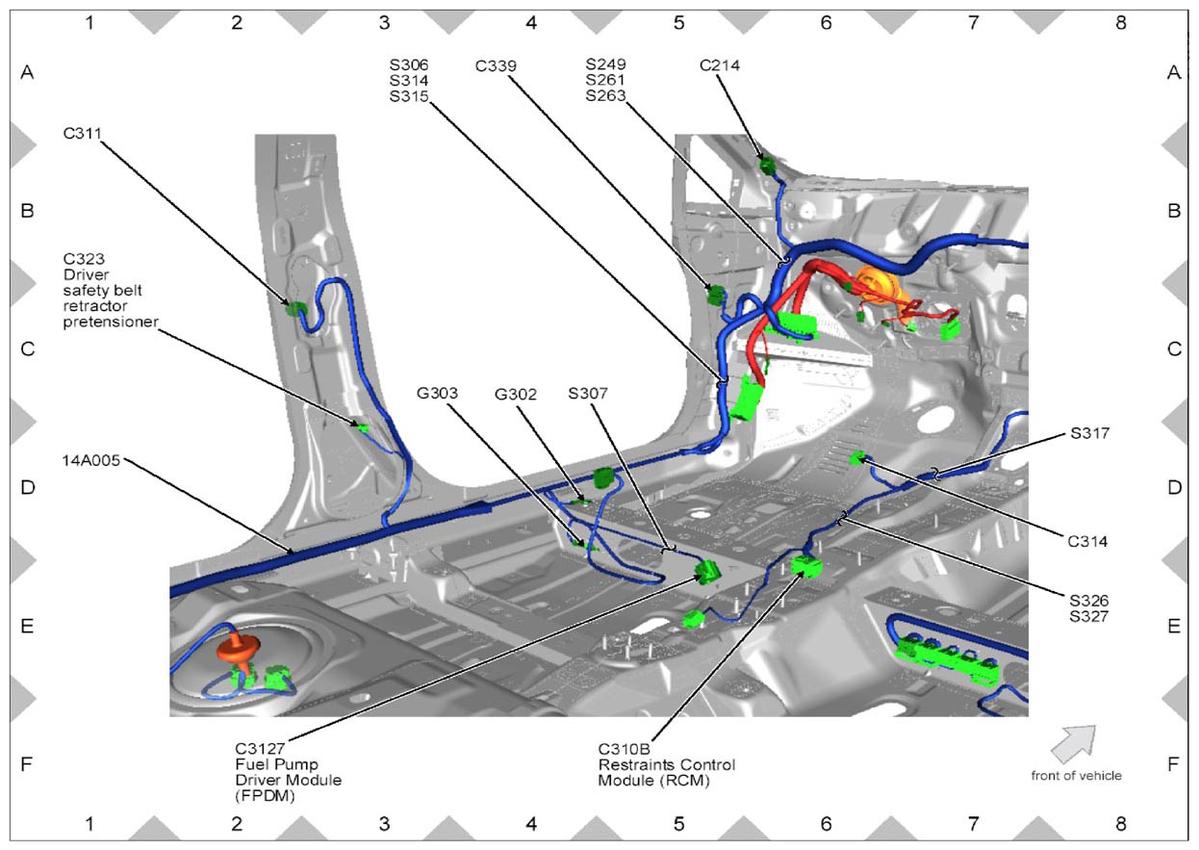

Fig 17: LH Front Compartment Wiring Harness Connectors Location

G09260342

Courtesy of FORD MOTOR CO.

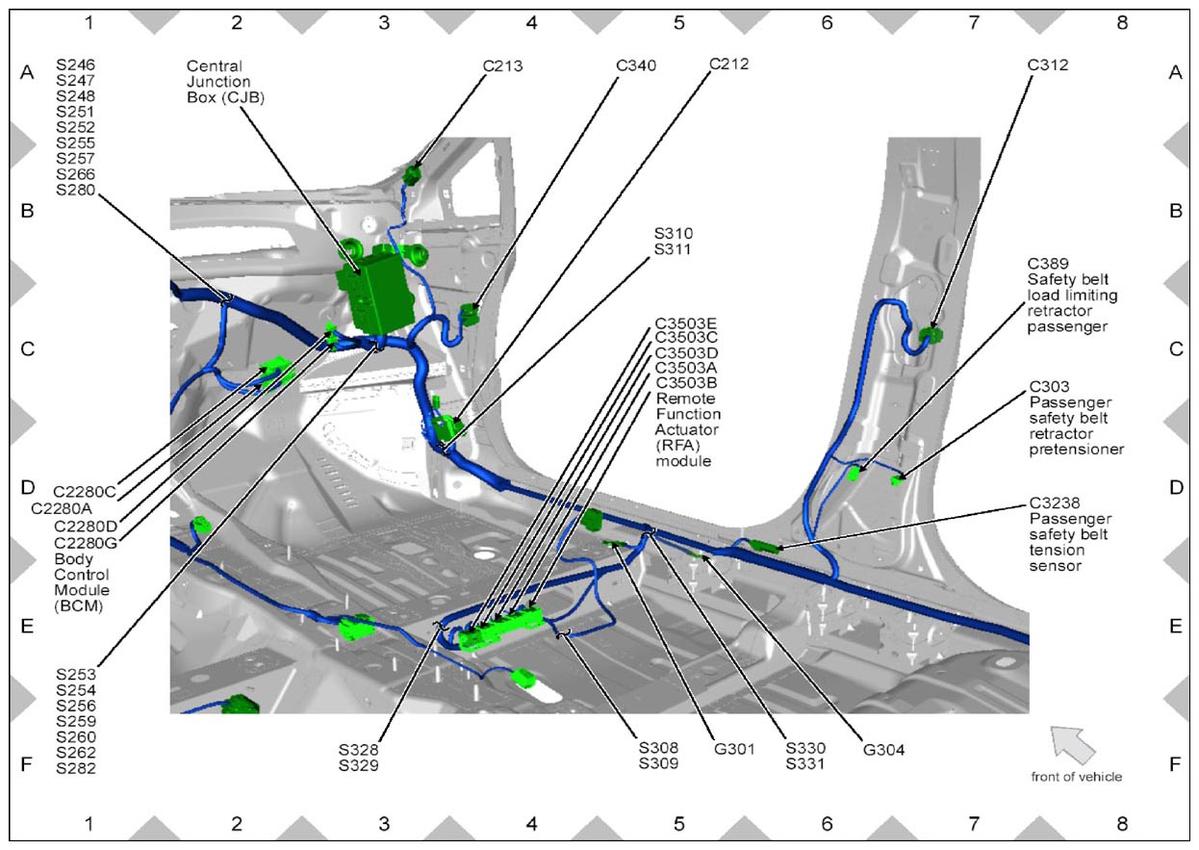

Fig 18: RH Front Compartment Wiring Harness Connectors Location

G09260343

Courtesy of FORD MOTOR CO.

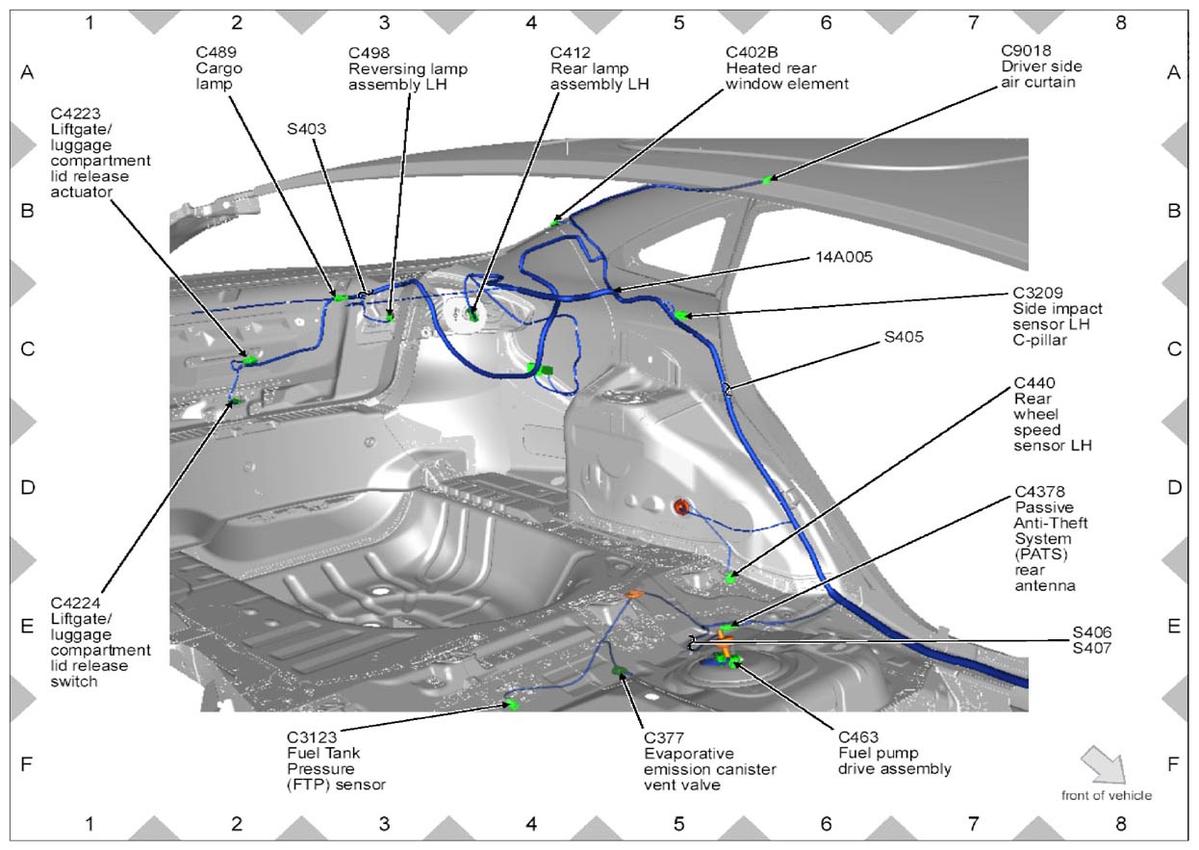

Fig 19: LH Rear Compartment Wiring Harness Connectors Location (1 Of 2)

G09260344

Courtesy of FORD MOTOR CO.

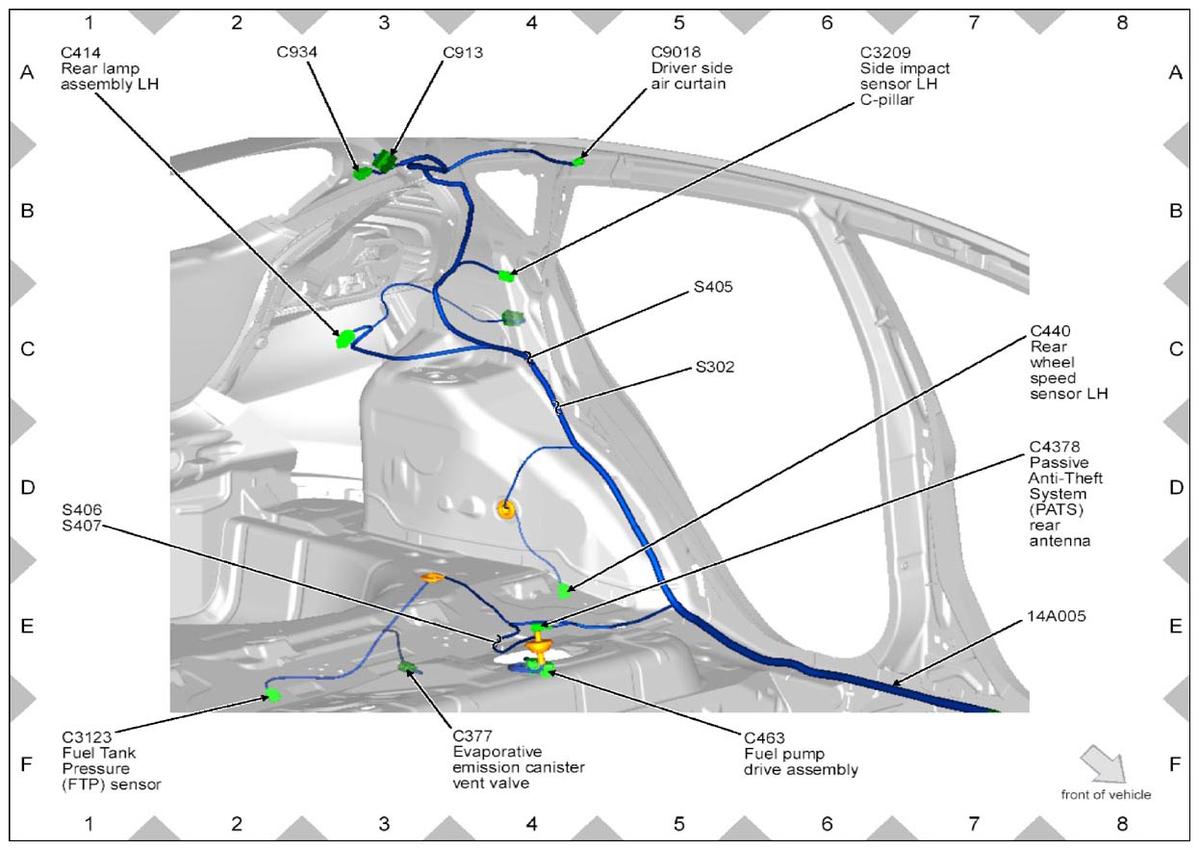

Fig 20: LH Rear Compartment Wiring Harness Connectors Location (2 Of 2)

G09260345

Courtesy of FORD MOTOR CO.

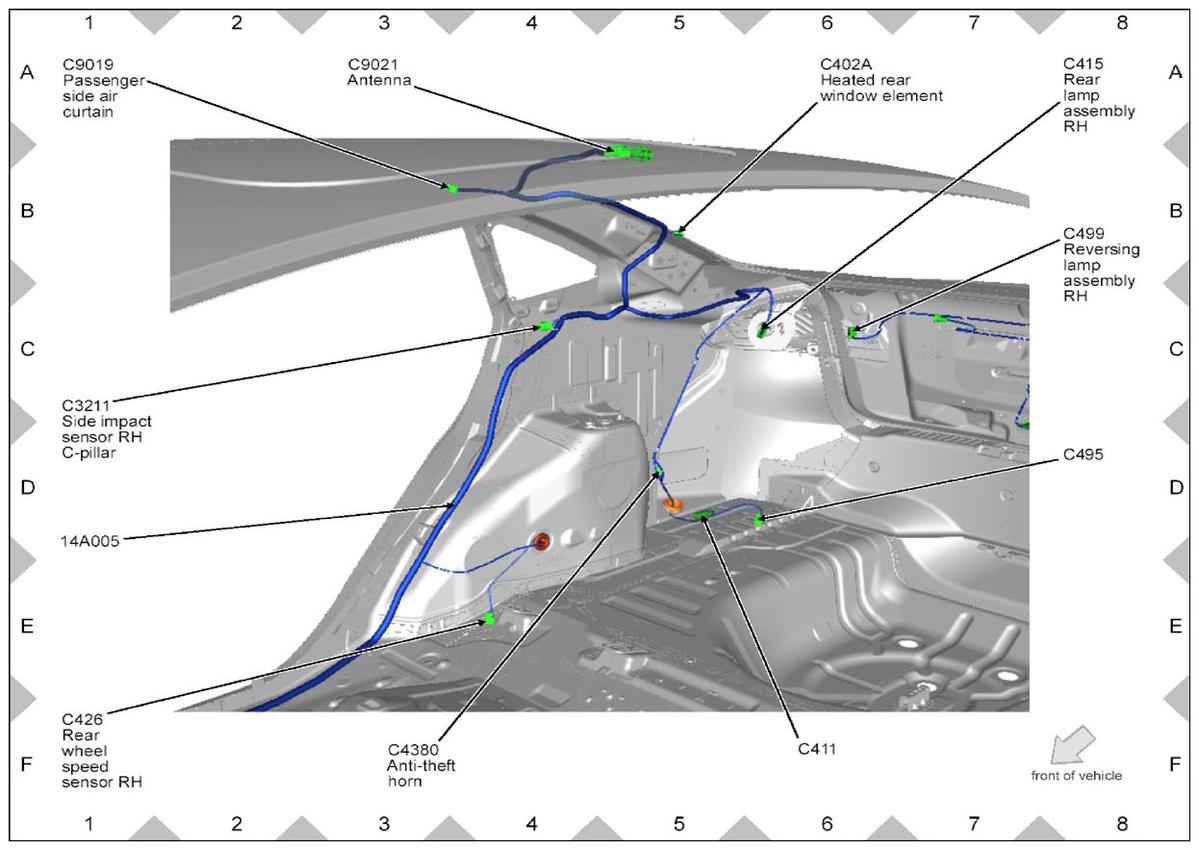

Fig 21: RH Rear Compartment Wiring Harness Connectors Location (1 Of 2)

G09260346

Courtesy of FORD MOTOR CO.

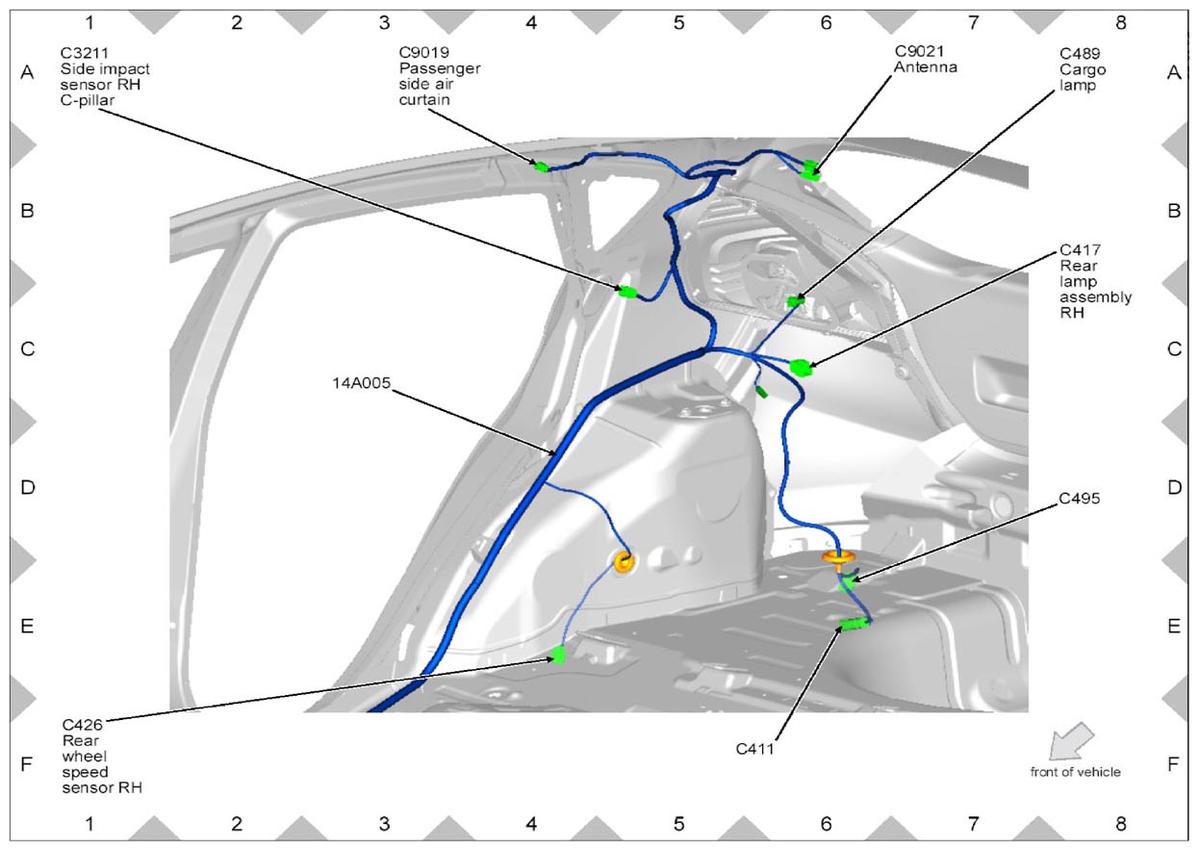

Fig 22: RH Rear Compartment Wiring Harness Connectors Location (2 Of 2)

G09260347

Courtesy of FORD MOTOR CO.

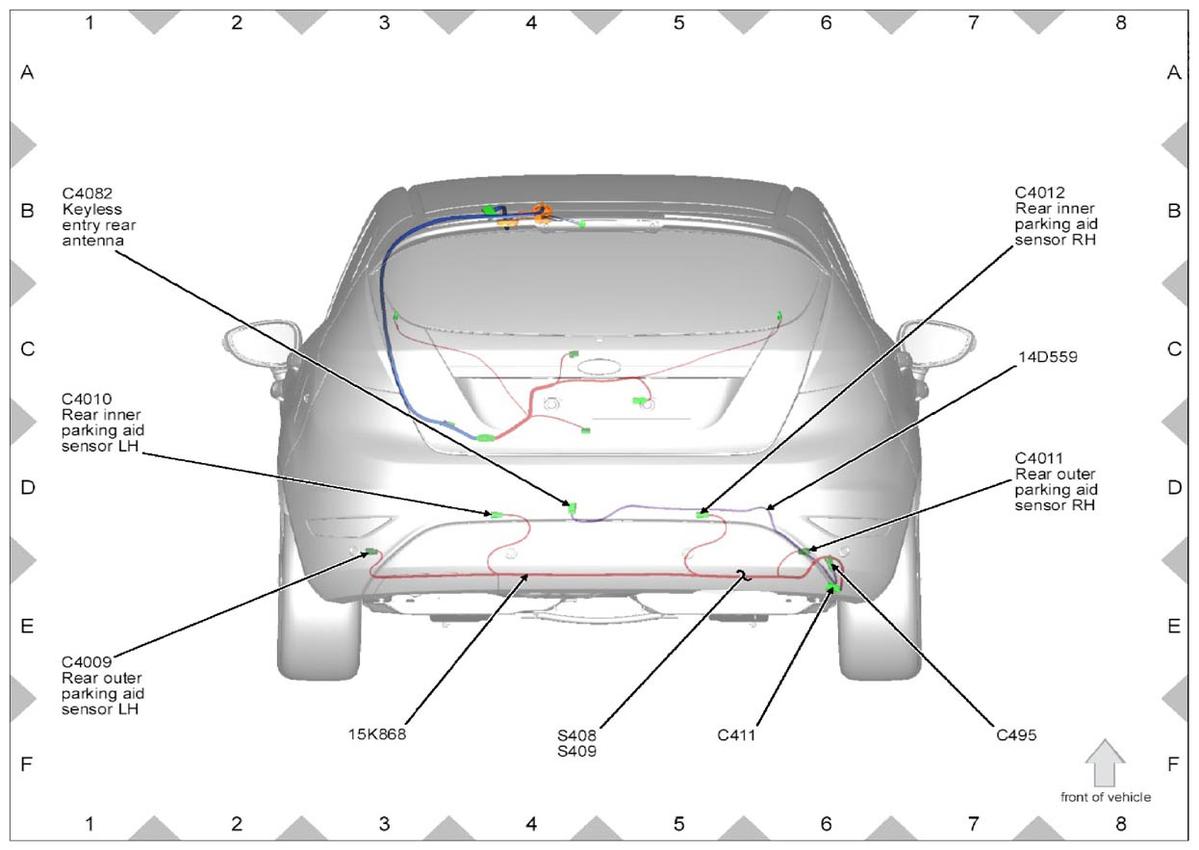

Fig 23: Luggage Compartment Wiring Harness Connectors Location

G09260348

Courtesy of FORD MOTOR CO.

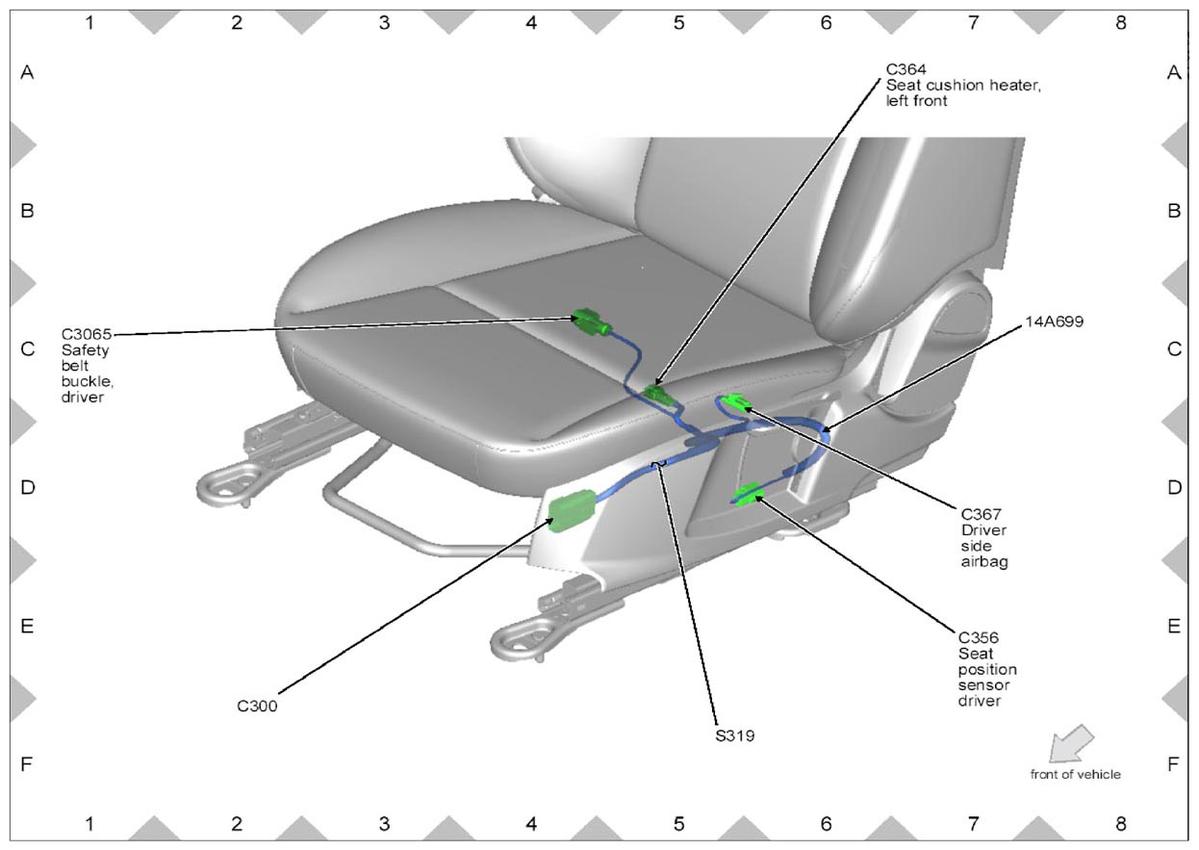

Fig 24: Driver Seat Wiring Harness Connectors Location

G09260349

Courtesy of FORD MOTOR CO.

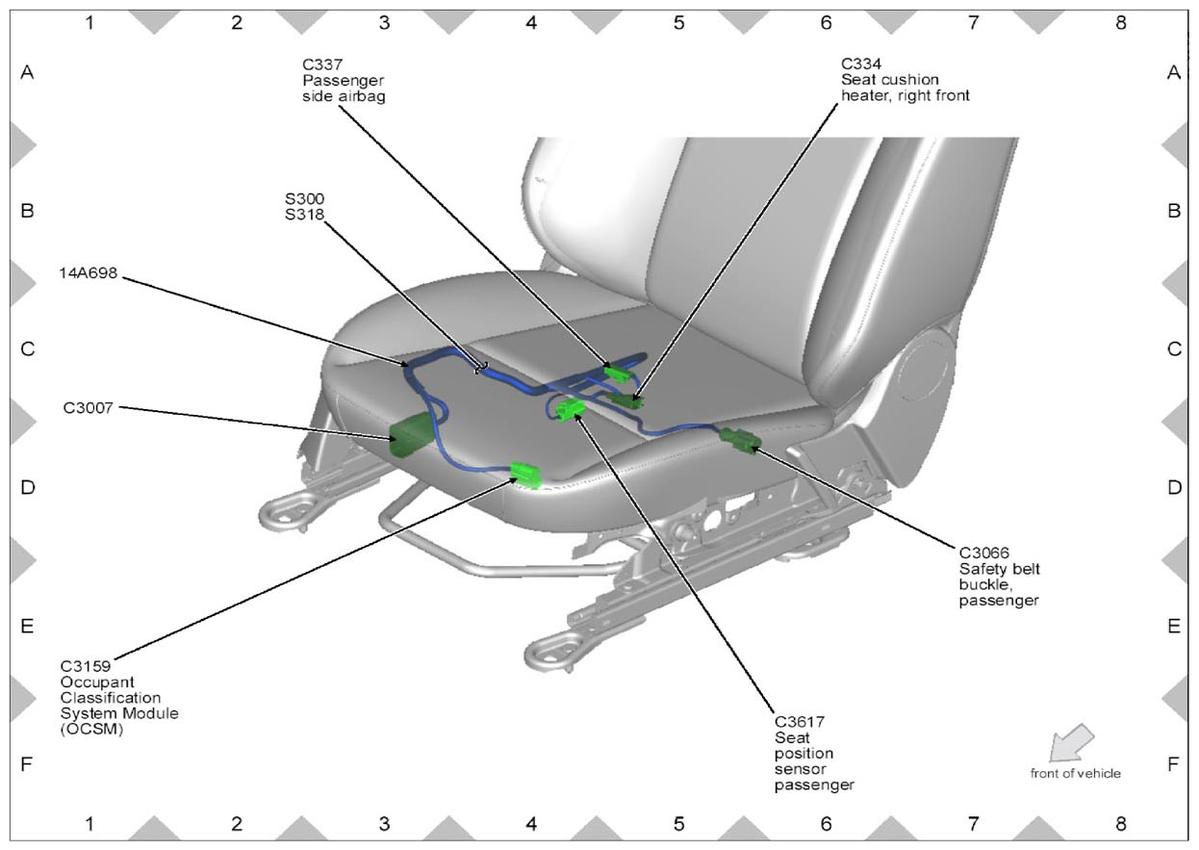

Fig 25: Passenger Seat Wiring Harness Connectors Location

G09260350

Courtesy of FORD MOTOR CO.

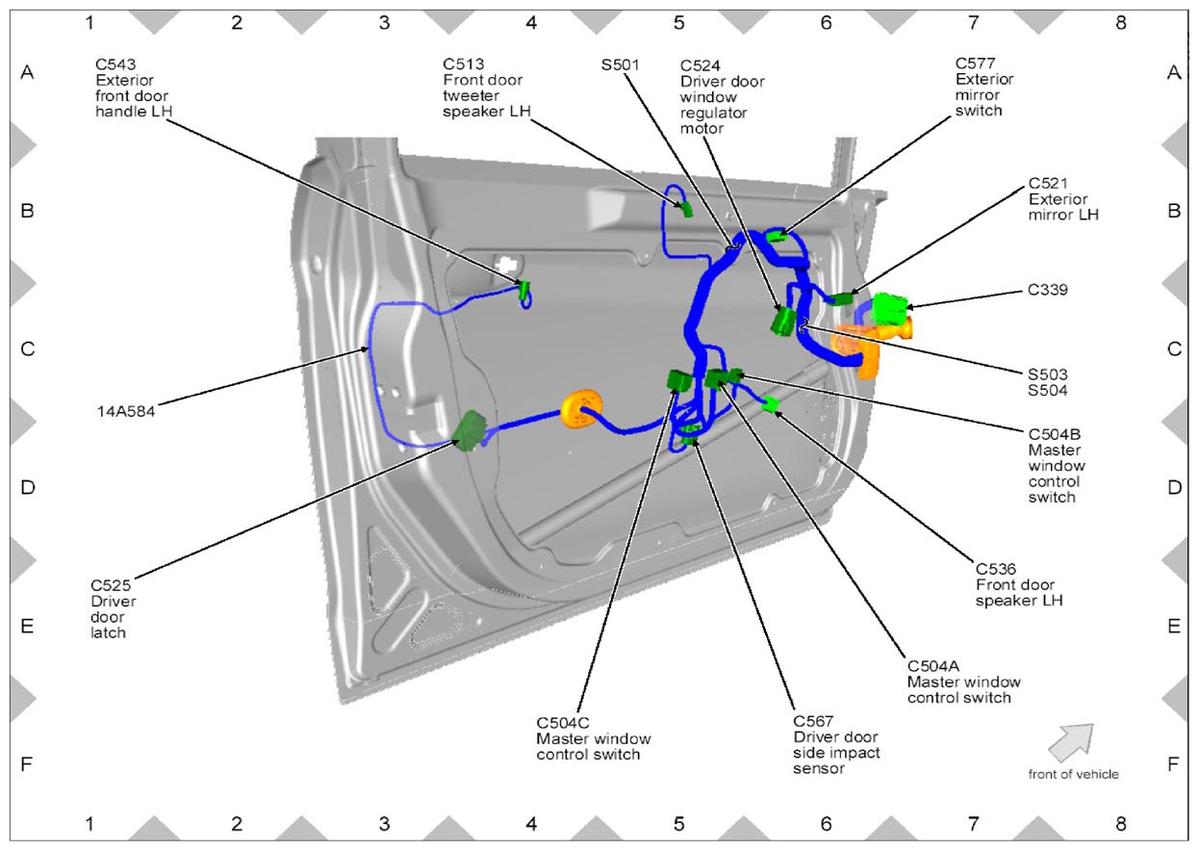

Fig 26: LH Front Door Wiring Harness Connectors Location

G09260351

Courtesy of FORD MOTOR CO.

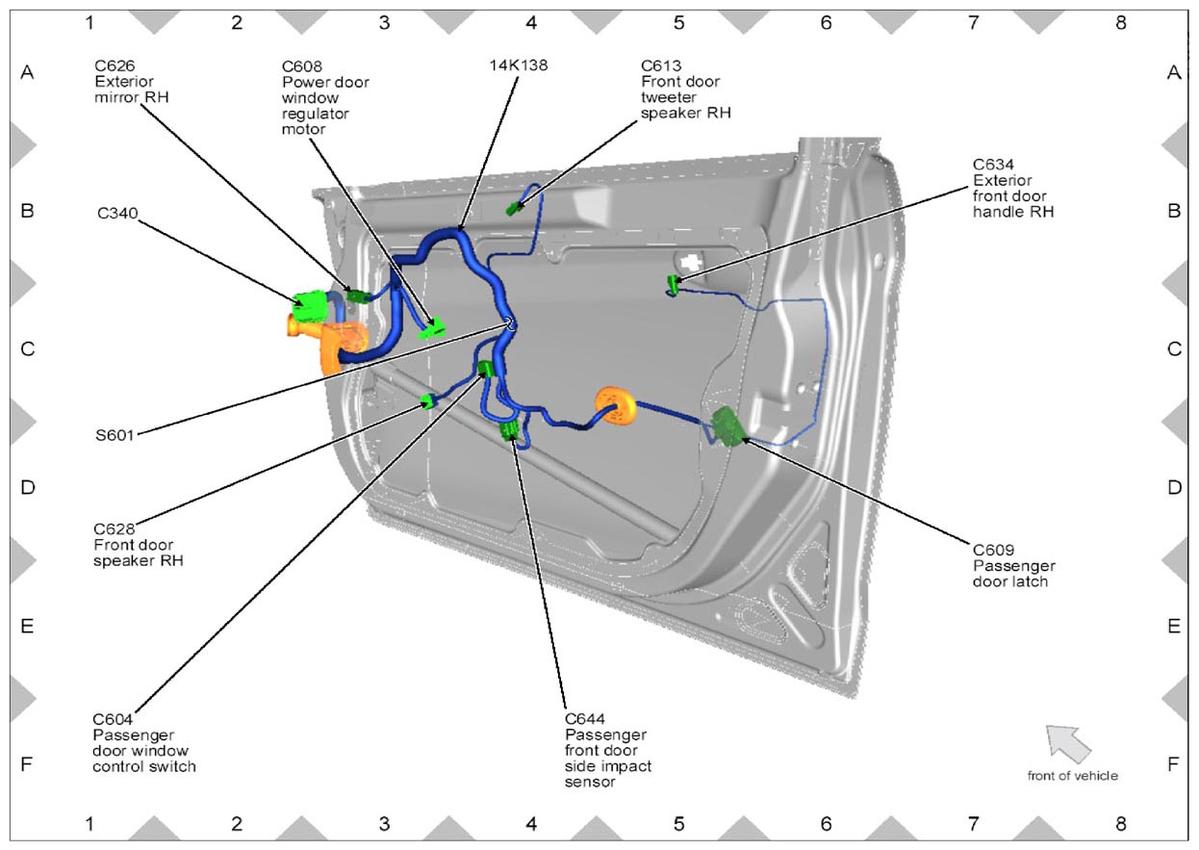

Fig 27: RH Front Door Wiring Harness Connectors Location

G09260352

Courtesy of FORD MOTOR CO.

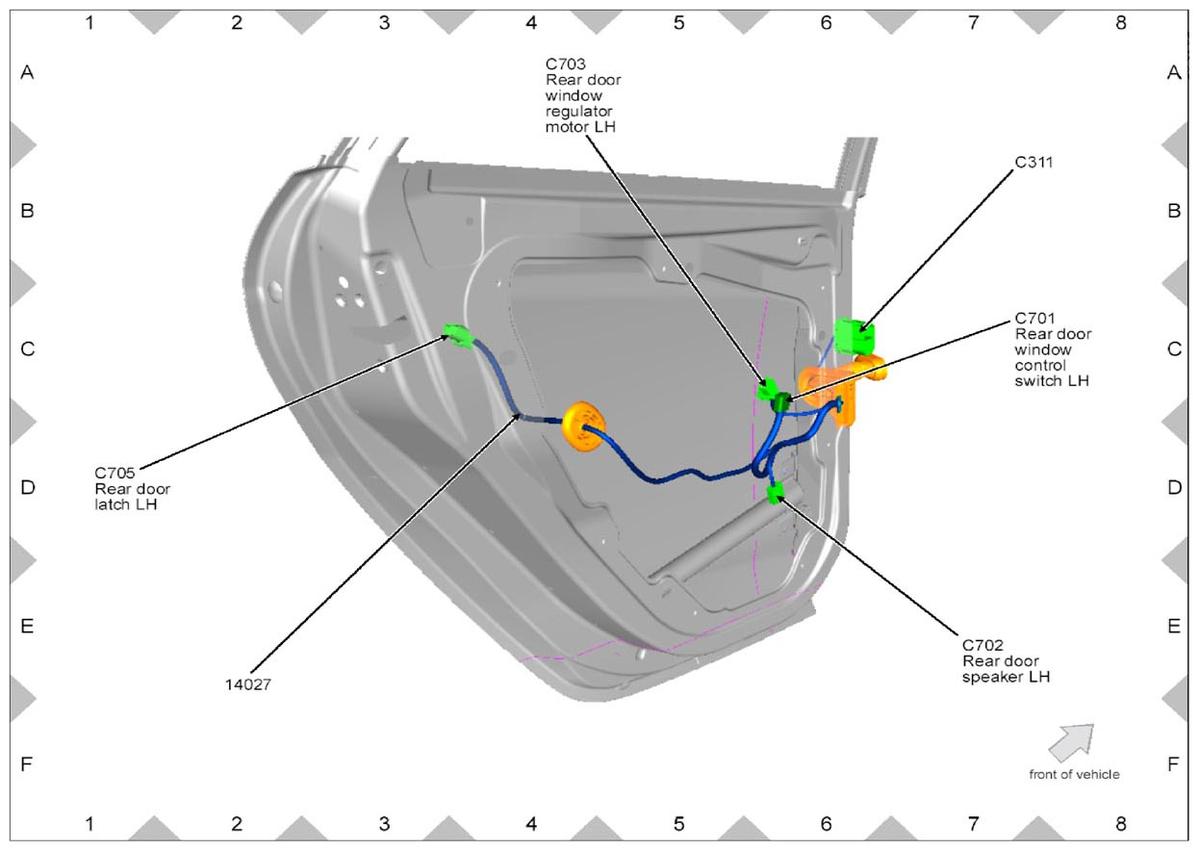

Fig 28: LH Rear Door Wiring Harness Connectors Location

G09260353

Courtesy of FORD MOTOR CO.

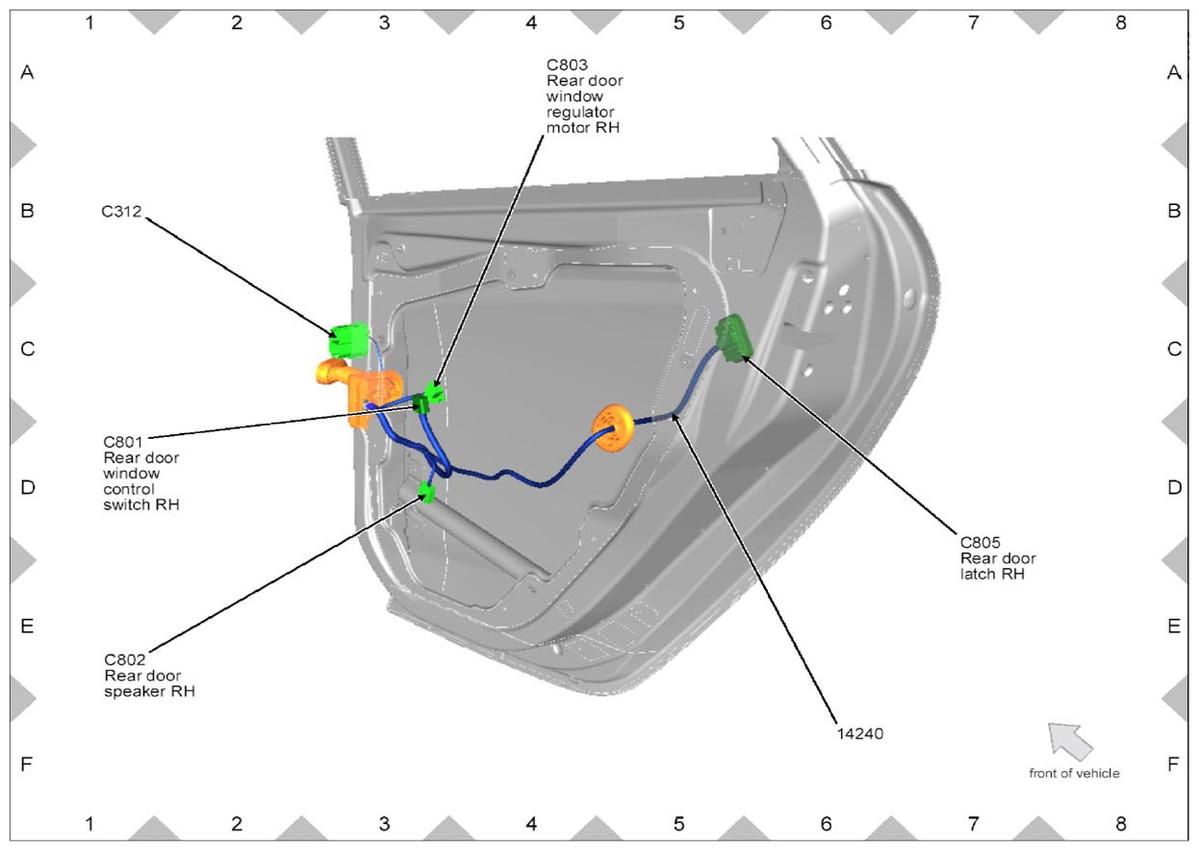

Fig 29: RH Rear Door Wiring Harness Connectors Location

G09260354

Courtesy of FORD MOTOR CO.

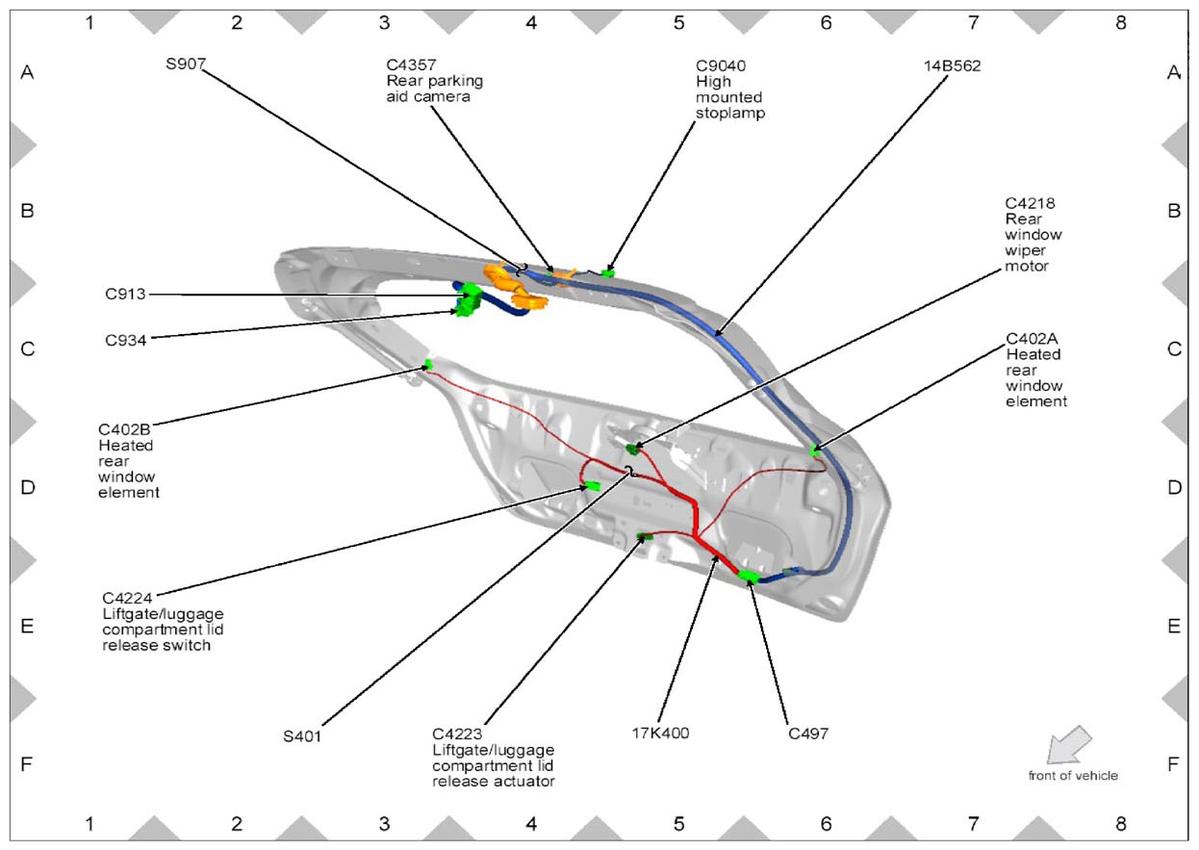

Fig 30: Tailgate Wiring Harness Connectors Location

G09260355

Courtesy of FORD MOTOR CO.

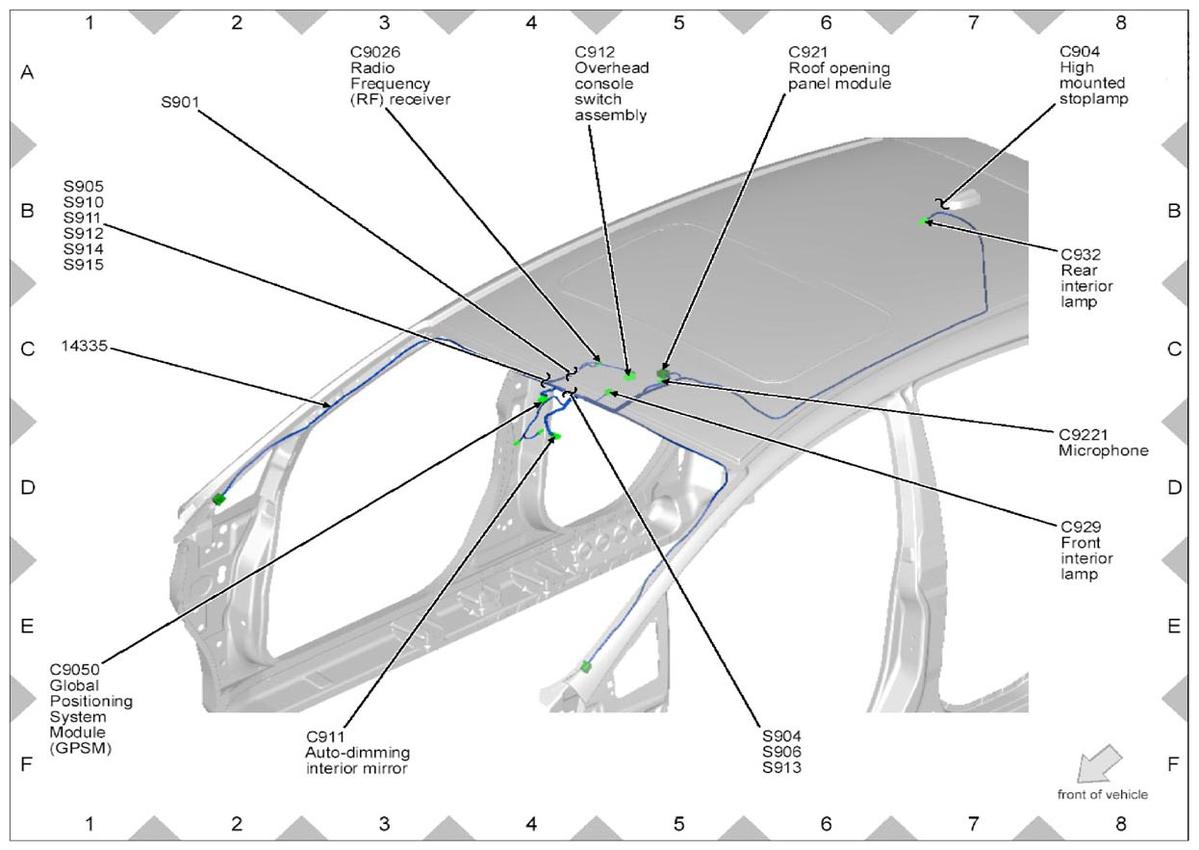

Fig 31: Roof Wiring Harness Connectors Location (1 Of 2)

G09260356

Courtesy of FORD MOTOR CO.

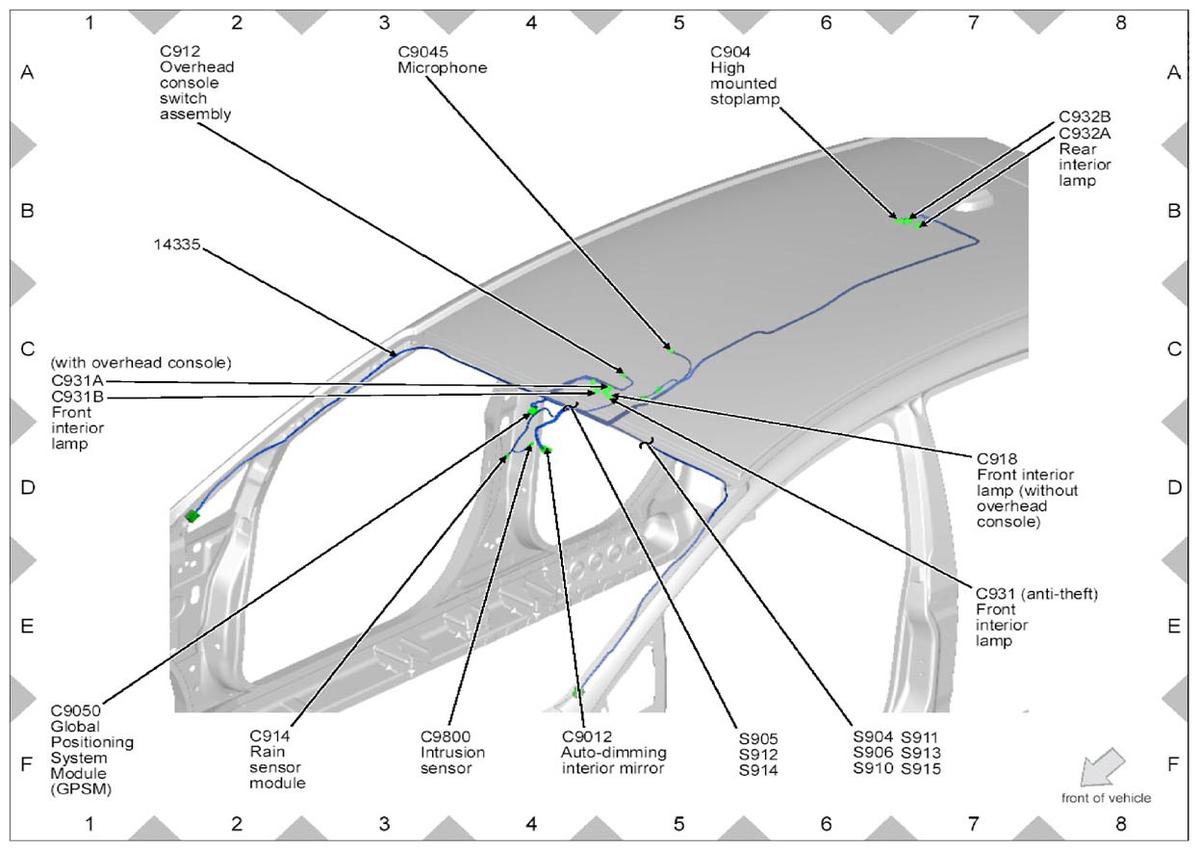

Fig 32: Roof Wiring Harness Connectors Location (2 Of 2)

G09260357

Courtesy of FORD MOTOR CO.
