OEM Ground Distribution: Grounds: G302

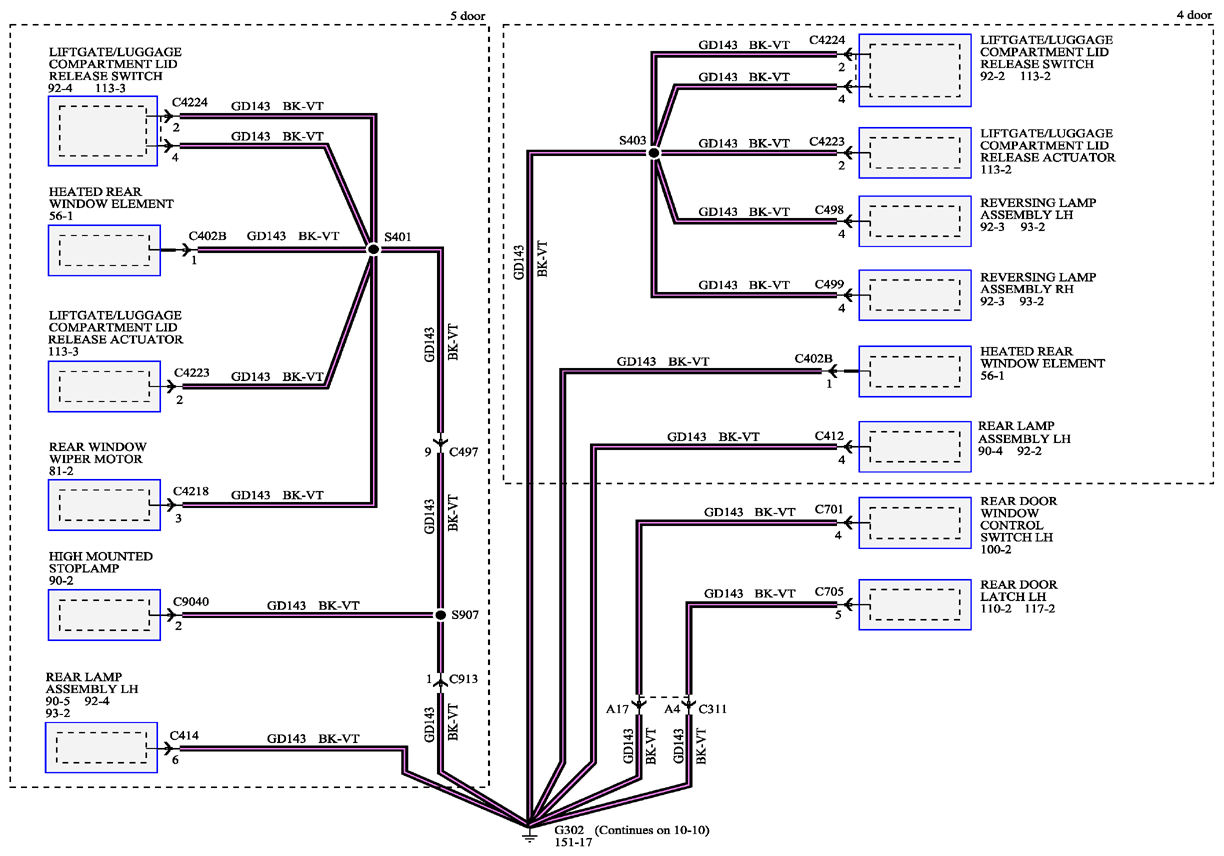

Fig 1: Grounds - Wiring Diagram (G302) (1 Of 2)
G09259556Courtesy of FORD MOTOR CO.
Fig 2: Grounds - Wiring Diagram (G302) (2 Of 2)
G09259557Courtesy of FORD MOTOR CO.
