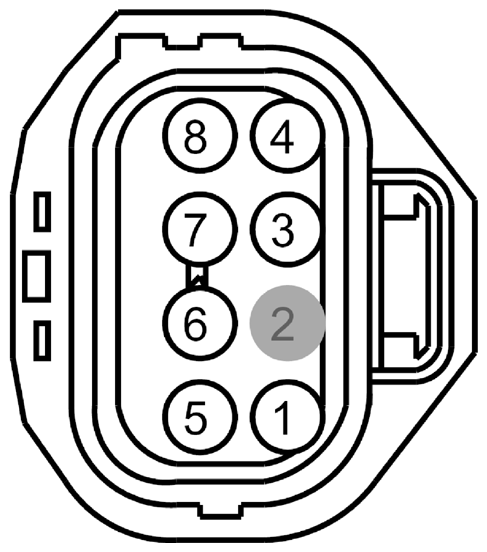

Fuel Pump Driver Module (FPDM) Connector End View (C3127)

Fig 1: Identifying Fuel Pump Driver Module Connector (C3127)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE608 (VT-GN)	12	RELAY - FUEL PUMP
2	*	*	Not Used
3	CE226 (YE-VT)	22	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) +
4	GD354 (BK-BU)	12	GROUND - ROCKER PANEL FRONT LEFT # 2ND POINT
5	CE515 (YE-GY)	12	DRIVER - FUEL PUMP MOTOR (FPDM) +
6	CR167 (YE-VT)	20	CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS)
7	VE518 (BN-WH)	22	MONITOR - FUEL PUMP (FPM)
8	RE515 (WH-BN)	12	DRIVER - FUEL PUMP MOTOR (FPDM) -

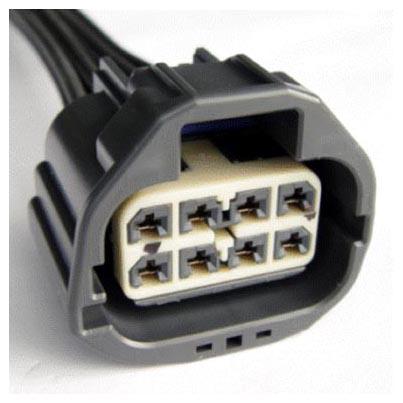

Available Pigtail Kits
Pigtail Kit Part Number WPT-521	Service Part Number: 3U2Z-14S411-TZA  Gauge: 12  Pin material: Tin  Cavities: 8  Vehicle Uses Fuel Pump/Sending Unit Motor - Power Window - LH - Front Motor - Power Window - LH - Rear Motor - Power Window - RH - Front Motor - Power Window - RH - Rear Relay - Fuel Pump
