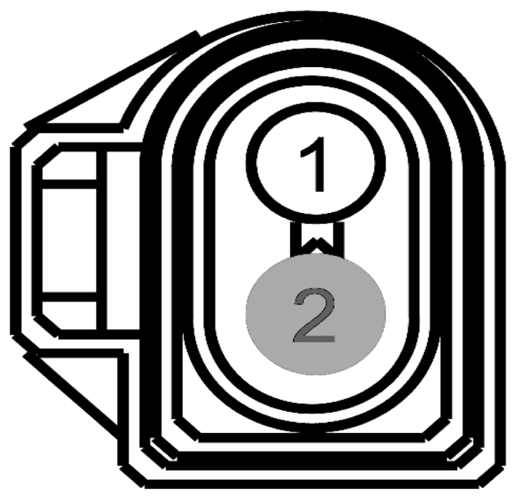

Generator Connector End View (C102A)

Fig 1: Identifying Generator Connector (C102A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CDC15 (VT)	18	GENERATOR (ALTERNATOR) # LOAD INPUT (GENLI)
2	*	*	Not Used

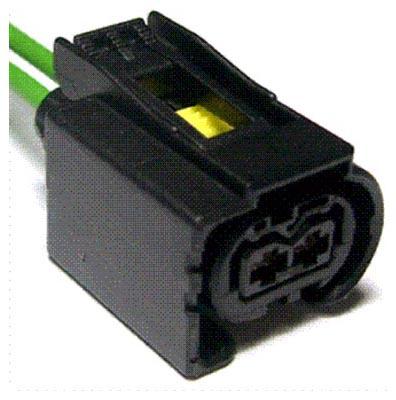

Available Pigtail Kits
Pigtail Kit Part Number WPT-1331	Service Part Number: DU2Z-14S411-BA  Gauge: 16  Pin material: Silver  Cavities: 2  Vehicle Uses Alternator
