Ignition Switch Connector End View (C250)

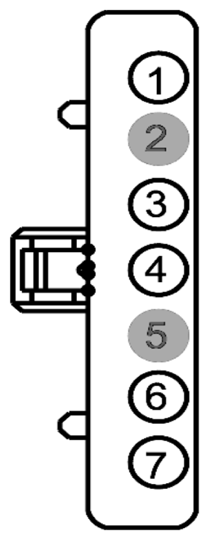

Fig 1: Identifying Ignition Switch Connector (C250)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CDC32 (BN-YE)	18	SWITCH - IGNITION # RUN
2	*	*	Not Used
3	CDC41 (WH-BN)	22	SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL)
4	SBP01 (RD)	18	FUSE - 1 OR CIRCUIT BREAKER
5	*	*	Not Used
6	CDC33 (VT-GN)	18	SWITCH - IGNITION # RUN, ACCESSORY
7	CDC35 (BU-WH)	18	SWITCH - IGNITION # START

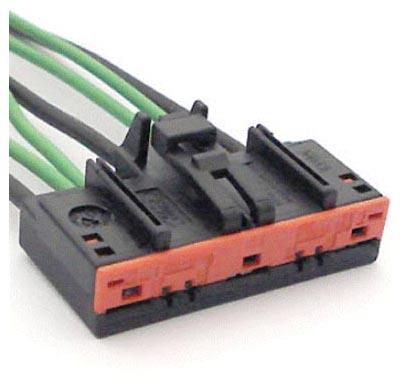

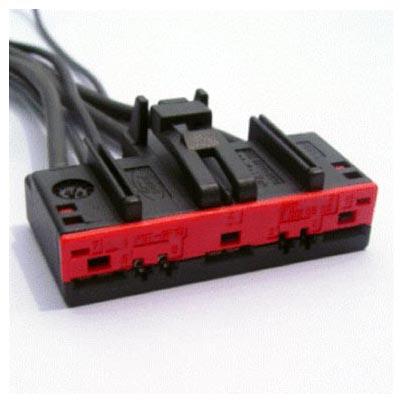

Available Pigtail Kits
Pigtail Kit Part Number WPT-804	Service Part Number: 3U2Z-14S411-FMAA  Gauge: 12 16 20  Pin material: Tin  Cavities: 7  Vehicle Uses Speaker - Tweeter - LH - Front
