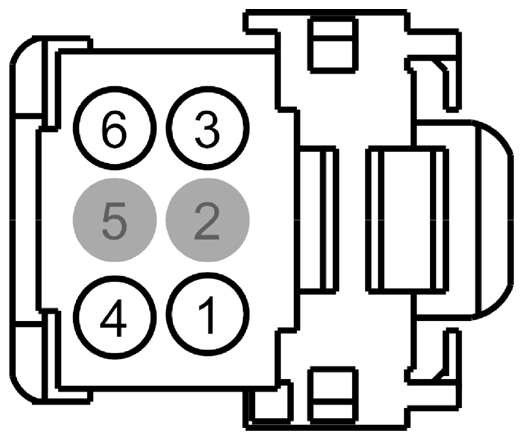

Ignition Switch-Push Button Start Connector End View (C2195)

Fig 1: Identifying Ignition Switch-Push Button Start Connector (C2195)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD115 (BK-GY)	20	GROUND - CROSS CAR BEAM # 2ND POINT (OBSOLETE)
2	*	*	Not Used
3	CPK34 (BN)	26	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 +
4	CPK35 (YE)	26	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 +
5	*	*	Not Used
6	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION

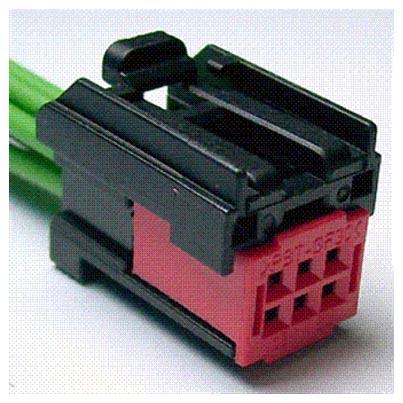

Available Pigtail Kits
Pigtail Kit Part Number WPT-1237	Service Part Number: 3U2Z-14S411-PNB  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Switch - Hazard Warning Switch - Message Center Switch - Start/Stop
