In-Vehicle Temperature Sensor Connector End View (C233)

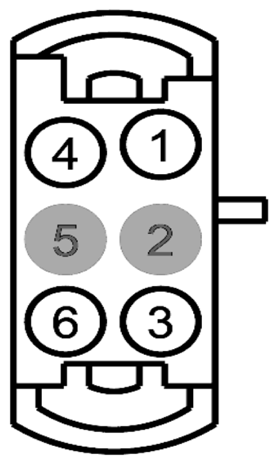

Fig 1: Identifying In-Vehicle Temperature Sensor Connector (C233)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CH103 (BU-WH)	22	CTRL MOD. - CLIMATE # I.T.S. ASPIRATOR MOTOR +
2	*	*	Not Used
3	RH103 (GY)	22	CTRL MOD. - CLIMATE # I.T.S. ASPIRATOR MOTOR -
4	VH414 (GN-BU)	22	SENSOR - INCAR TEMP.
5	*	*	Not Used
6	RH105 (GN)	22	CTRL MOD. - CLIMATE # SENSOR RETURN 2
