Remote Function Actuator (RFA) Module Connector End View (C3503A)

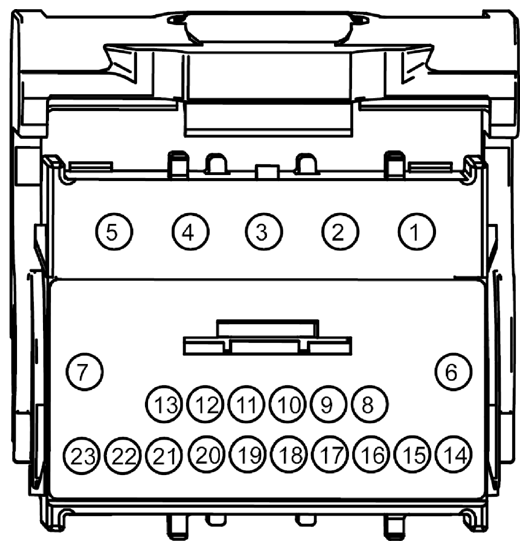

Fig 1: Identifying Remote Function Actuator Module Connector (C3503A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP09 (RD)	12	FUSE - 9 OR CIRCUIT BREAKER
2	SBP14 (BN-RD)	14	FUSE - 14 OR CIRCUIT BREAKER
3	GD145 (BK-BU)	20	GROUND - PILLAR B RIGHT (OBSOLETE)
4	*	*	Not Used
5	*	*	Not Used
6	*	*	Not Used
7	*	*	Not Used
8	*	*	Not Used
9	*	*	Not Used
10	CBP13 (GY-BN)	20	FUSE - 13 OR CIRCUIT BREAKER
11	VRT24 (YE-OG)	22	TRANSCEIVER - PASSIVE ANTI THEFT (IMMOBILIZER) # TX CNTRL
12	VRT23 (VT-GY)	22	TRANSCEIVER - PASSIVE ANTI THEFT (IMMOBILIZER) # RX DATA (RX_IN)
13	*	*	Not Used
14	*	*	Not Used
15	*	*	Not Used
16	*	*	Not Used
17	*	*	Not Used
18	*	*	Not Used
19	*	*	Not Used
20	*	*	Not Used
21	*	*	Not Used
22	*	*	Not Used
23	*	*	Not Used
