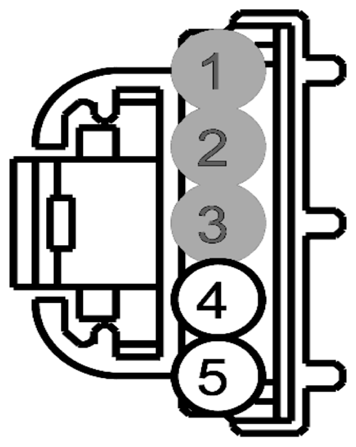

SUNLOAD Sensor Connector End View (C287)

Fig 1: Identifying Sunload Sensor Connector (C287)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	VLF14 (BU-BN)	22	SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) +
5	RLF14 (GY-BN)	22	SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) -

Available Pigtail Kits

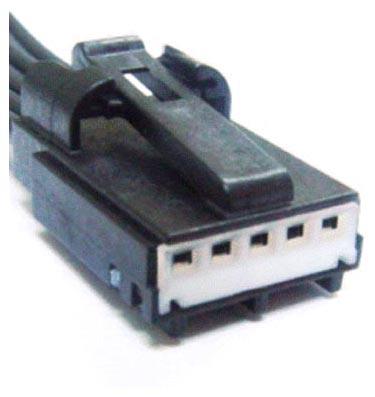

Pigtail Kit Part Number WPT-881	Service Part Number: 6U2Z-14S411-SA  Gauge: 18  Pin material: Tin  Cavities: 5  Vehicle Uses Mirror - Vanity Switch - Cold Engine Lockout Switch - Convertable Top

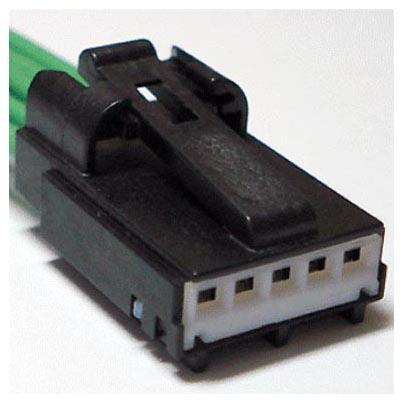

Pigtail Kit Part Number WPT-983	Service Part Number: 6U2Z-14S411-SB  Gauge: 18  Pin material: Silver  Cavities: 5  Vehicle Uses Module - Heads Up Display Switch - Overdrive Cancel Switch - Power Window - LH - Rear Switch - Power Window - Passenger (Front)
