Selector Lever Assembly Connector End View (C3245)

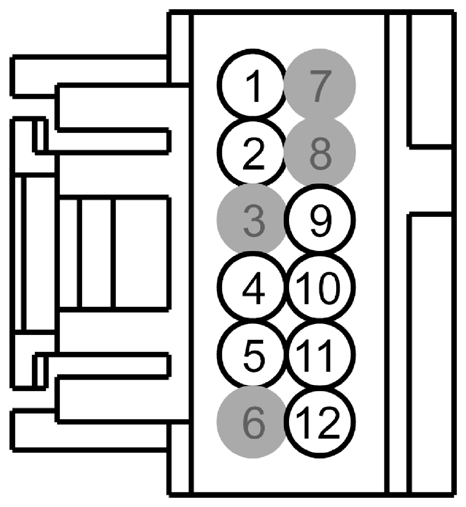

Fig 1: Identifying Selector Lever Assembly Connector (C3245)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CCA26 (BU-GY)	22	CTRL MOD. - SWITCH BRAKE PEDAL FORCE NORMALLY OPEN
2	CDC41 (WH-BN)	22	SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL)
3	*	*	Not Used
4	CLN04 (BU-BN)	22	CTRL MOD. - IP/SWITCH ILLUMINATION +
5	GD115 (BK-GY)	20	GROUND - CROSS CAR BEAM # 2ND POINT (OBSOLETE)
6	*	*	Not Used
7	*	*	Not Used
8	*	*	Not Used
9	CET43 (GY)	20	SWITCH - TRANSMISSION SELECT SHIFT # UP (SST)
10	CET42 (GN-VT)	20	SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)
11	RET42 (WH-BN)	20	SWITCH - TRANSMISSION SELECT SHIFT (SNS GND)
12	CET53 (BU-OG)	22	CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK

Available Pigtail Kits

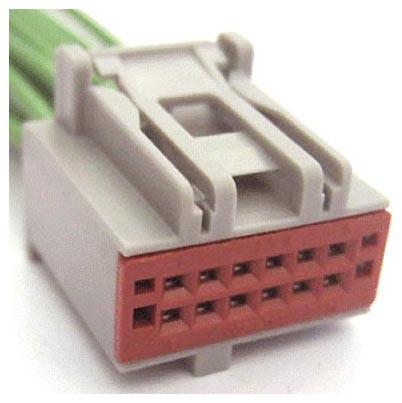

Pigtail Kit Part Number WPT-949	Service Part Number: 3U2Z-14S411-BMAB  Gauge: 18  Pin material: Silver  Cavities: 12  Vehicle Uses Control - Navigation Display Module - Driver Door Module - Front Interface Monitor - Video/DVD Switch - Gear Shift Select/Neutral Safety

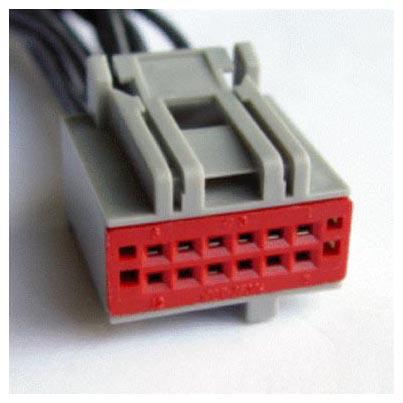

Pigtail Kit Part Number WPT-760	Service Part Number: 3U2Z-14S411-BMAA  Gauge: 18  Pin material: Tin  Cavities: 12  Vehicle Uses Coil - Ignition Lamp - Storage Compartment - Trunk Mirror - Rearview Module - Heated Seat (Rear)
