Throttle Control Unit Connector End View (C1368)

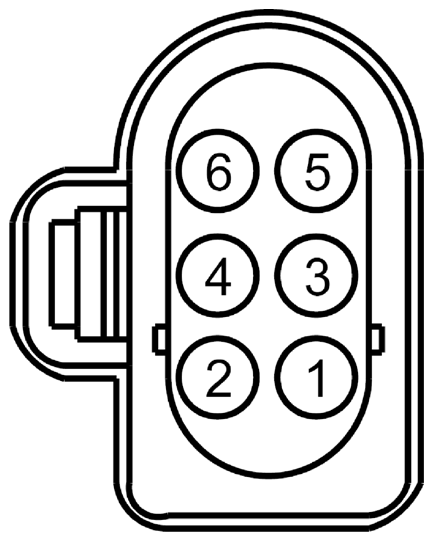

Fig 1: Identifying Throttle Control Unit Connector (C1368)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE414 (GN-OG)	20	CTRL MOD. - POWERTRAIN # THROTTLE POSITION COMMAND 1 (TPCMD)	1.6L TIVCT
1	CE415 (BN-YE)	20	CTRL MOD. - POWERTRAIN # THROTTLE POSITION COMMAND 2 (TPCMD)	1.6L GTDI
2	RE427 (YE-VT)	20	CTRL MOD. - POWERTRAIN # THROTTLE POSITION (TPRTN)	1.6L GTDI
2	LE428 (BU-WH)	20	CTRL MOD. - POWERTRAIN # THROTTLE POSITION (TPREF)	1.6L TIVCT
3	RE134 (BU-OG)	18	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN)
4	CE415 (BN-YE)	20	CTRL MOD. - POWERTRAIN # THROTTLE POSITION COMMAND 2 (TPCMD)	1.6L TIVCT
4	CE414 (GN-OG)	20	MOD. - POWERTRAIN # THROTTLE POSITION COMMAND 1 (TPCMD)	1.6L GTDI
5	LE134 (YE)	18	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF)
6	RE427 (YE-VT)	20	CTRL MOD. - POWERTRAIN # THROTTLE POSITION (TPRTN)	1.6L TIVCT
6	LE428 (BU-WH)	20	CTRL MOD. - POWERTRAIN # THROTTLE POSITION (TPREF)	1.6L GTDI

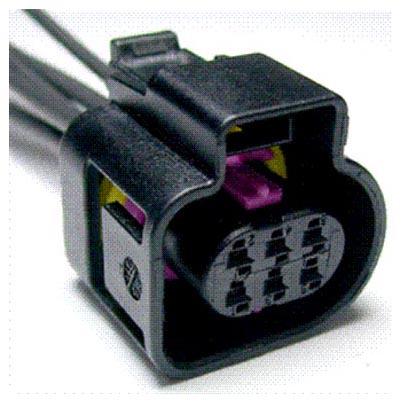

Available Pigtail Kits
Pigtail Kit Part Number WPT-1146	Service Part Number: BU2Z-14S411-NA  Gauge: 18  Pin material: Tin (greased)  Cavities: 6  Vehicle Uses Motor - Electronic Throttle Control (ETC) Sensor - O2 (HEGO/EGO) Sensor - Throttle Position
