NOTE:

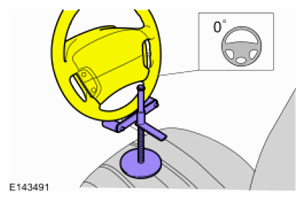

Make sure that the vehicle is standing on a level surface.
Using alignment equipment and the manufacturer's instructions, check the front toe setting on both sides. Use the General Equipment: Wheel Alignment System
1. On both sides.
Torque
: 58 lb.ft (79 Nm)
2.
NOTE:
Make sure that the boot is correctly located.

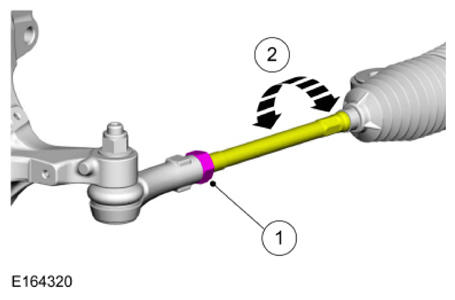

Rotate the inner tie-rods an equal amount in either a clockwise or a counterclockwise direction to adjust the toe setting on both sides.
