Transmission Fluid Level Check: Check
- Refer to: JACKING AND LIFTING - OVERVIEW .

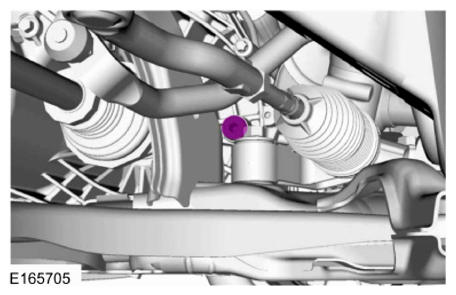

- Use the General Equipment: Ball End Hex Bit
-
NOTE: Do not overfill the transmission. This causes transmission fluid to be forced out of the case.

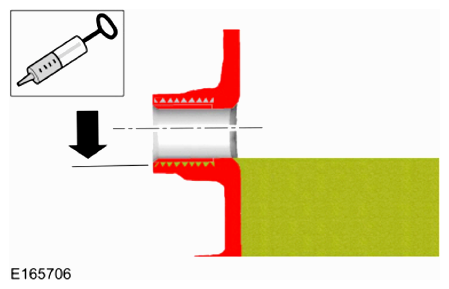

Add transmission fluid until the oil runs out of the fill port in a continuous stream. The transmission is full when the oil flow from the fill port has slowed to a broken stream or dripping.
Use the General Equipment: Fluid Suction Gun
Material : Motorcraft® Dual Clutch Transmission Fluid/XT-11-QDC (WSS-M2C200-D2)
-

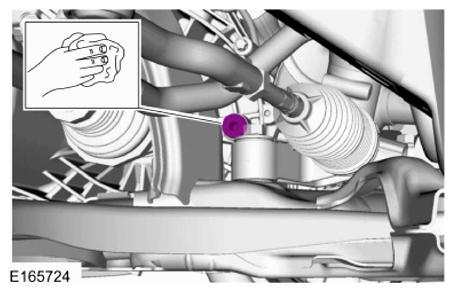

NOTE: The O-ring seal is to be reused unless damaged.
Use the General Equipment: Ball End Hex Bit
Torque : 32 lb.ft (43 Nm)
