Defective Insulation Stripping

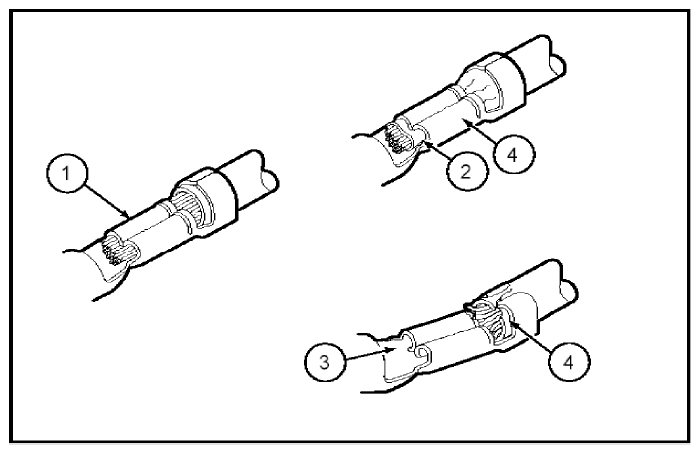

Fig 1: View Of Defective Insulation Stripping
G09252283Courtesy of FORD MOTOR CO.
  1. Proper crimp
  2. Insulation not removed
  3. Wire strands missing
  4. Intermittent signals through pierced insulation
