Partially Mated Connectors

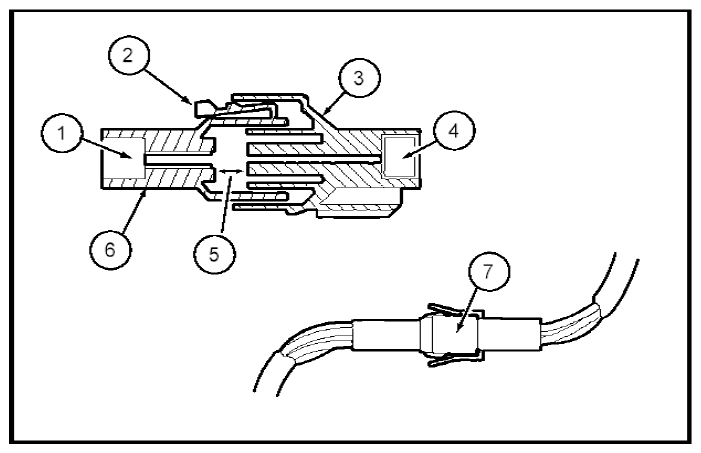

Fig 1: View Of Partially Mated Connectors

Courtesy of FORD MOTOR CO.

1. Seal
2. Displaced tab
3. Female half
4. Seal
5. Intermittent contact
6. Male half
7. Intermittent contact

Lock may be displaced into an unlocked position; pull on the connector to verify the lock.
