Joint Connector 17 Connector End View (C2425)

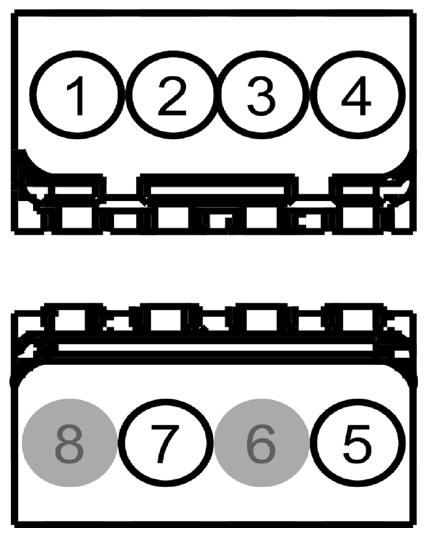

Fig 1: Identifying Joint Connector 17 (C2425)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VDB13 (BU-GY)	22	CTRL MOD. - MULTIMEDIA CAN BUS HIGH
2	VDB13 (BU)	26	CTRL MOD. - MULTIMEDIA CAN BUS HIGH
3	VDB14 (VT-GY)	22	CTRL MOD. - MULTIMEDIA CAN BUS LOW
4	VDB14 (VT)	26	CTRL MOD. - MULTIMEDIA CAN BUS LOW
5	VDB13 (BU)	26	CTRL MOD. - MULTIMEDIA CAN BUS HIGH
6	*	*	Not Used
7	VDB14 (VT)	26	CTRL MOD. - MULTIMEDIA CAN BUS LOW
8	*	*	Not Used
