Steering Column Motor: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

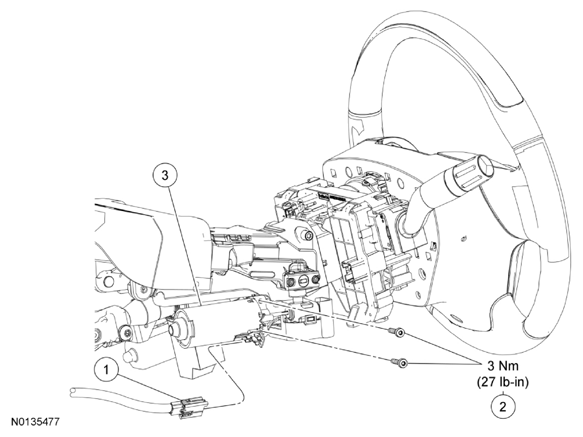

Fig 1: Exploded View Of Steering Column Motor

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Steering column tilt motor electrical connector (part of 14401)
2	W790120	Steering column tilt motor screws (2 required)
3	3D538	Steering column tilt motor
