Connector Repair Procedures
›
Terminal Not Properly Seated
Terminal Not Properly Seated

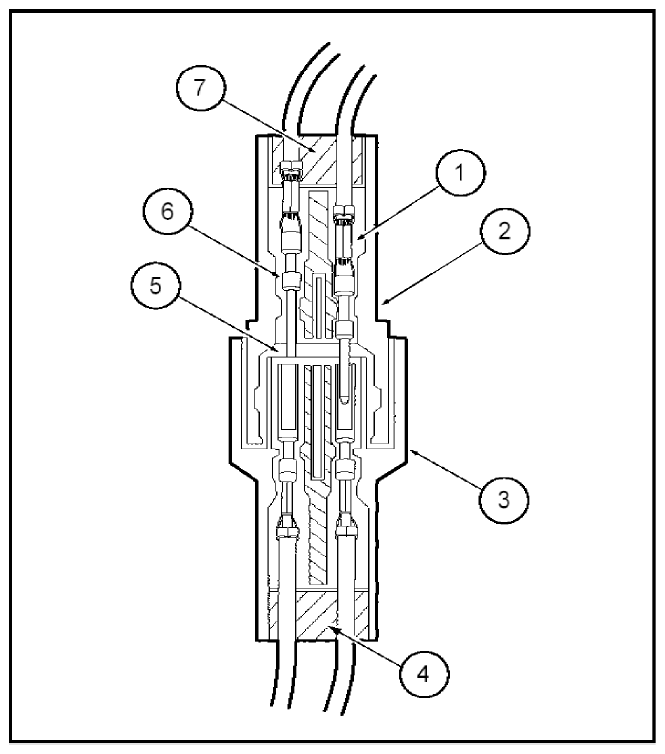

Fig 1: View Of Terminal Not Properly Seated
Courtesy of FORD MOTOR CO.
Locked terminal
Male half
Female half
Seal
Intermittent contact
Unlocked terminal (Hidden by wire seal)
Seal
Check for unlocked terminals by pulling each wire at the end of the connector.
