Headlamp Switch: Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

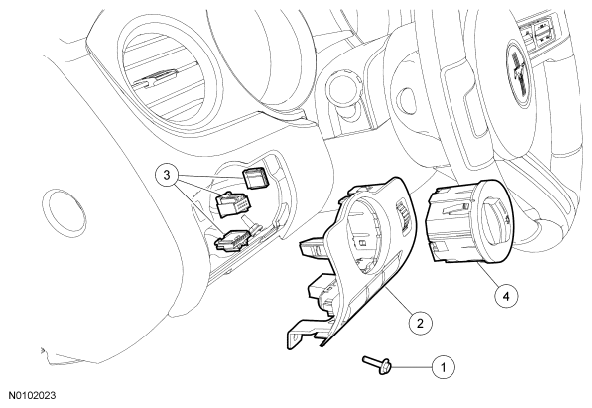

Fig 1: Identifying Headlamp Switch With Electrical Connector And Bezel Screw

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	705314	Headlamp switch bezel screw
2	7804338	Headlamp switch bezel
3	-	Headlamp switch electrical connectors (part of 14401)
4	11654	Headlamp switch
